iglide® J2, sleeve bearing, mm

Click for a larger view

Unsure whether it fits?
  • Environmentally friendly, versatile and cost-effective
  • Good mechanical properties, robust
  • Cost-effective
  • Good liquid media resistance

Product description

Select article(s)



Required size not found?



iglide® J2 | Environmentally friendly, versatile and cost-effective


  • Good mechanical properties, robust
  • Cost-effective
  • Good liquid media resistance
  • Lubrication and maintenance-free
  • Standard range from stock
iglide® J2 has good universal media resistance, comparable to that of iglide® J and similar materials. The mechanical specifications in sporadically moved applications are better although, in comparison, clear compromises have to be made with regard to friction and wear. Like all iglide® materials, iglide® J2 is PFOA-free.

Typical application areas

Model building
Robotics

You will find plenty of additional application areas at our Industry solutions


When to use it?
  • When low moisture absorption and good chemical resistance is required for primarily static load
  • When a cost-effective bearing is required for use in a wet environment with low p x v values
  • When there is a basic lubrication of the bearing
When not to use?
  • When a highly wear resistant bearing is required for continuous dry operation
  • When low moisture absorption and media resistance play a minor role
  • When a resistance to high temperatures and chemicals is required


Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of the iglide® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are imperative. Plain bearings with low moisture absorption can be designed with a minimal amount of tolerance. For wall thickness, the rule is: The thicker the bearings are, the larger the tolerances must be.
Testing methods

Assembly
iglide® bearings are press-fit bearings. The inner diameter adjusts only after press-fit in the proper housing bore with a recommended tolerance. The before press-fit oversized dimension can be up to 2% of the inner diameter. In this manner, the secure press-fitting of the bearing is achieved. Axial or radial shifts in the housing are also prevented.
iglide® - assembling, gluing, machining



Certificates and standards

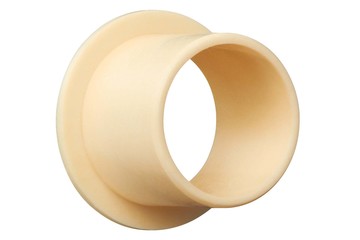

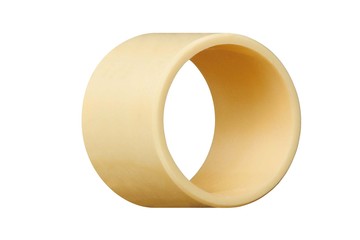

Other solutions
