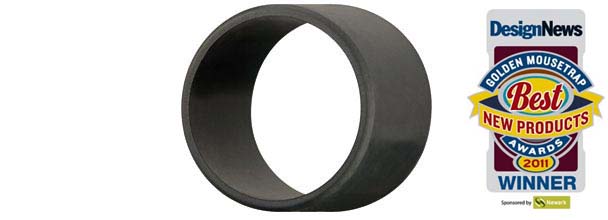

iglide® X6 - the new nano material for high temperatures

6x longer lifetime in heat

iglide® X6 material data table

Using nano-technology, iglide® X6 improves the lifetime of its high performance plastic plain bearing predecessors by 6 times: even for temperatures over 212°F.

Continuous temperatures possible up to +482°F

Up to 50% better pressfit

Lubrication- and maintenance-free

High compressive strength

Very good chemical resistance

PTFE free

iglide® X6 material data table

iglide® X6: wear resistant even at high temperatures



iglide® X6, Form S (metric)
Part No. d1 tolerance
d2 b1
    After pressfit in H7
  [mm] Min. Max. [mm] [mm]
 X6SM-0304-03 (1) 3 +0.006 +0.046 4.5 3 Upon request
 X6SM-0507-05 (1) 5 +0.010 +0.058 7 5 Upon request
 X6SM-0608-06 (1) 6 +0.010 +0.058 8 6 Upon request
 X6SM-0810-10  (1) 8 +0.013 +0.071 10 10 Upon request
 X6SM-1012-10 (1) 10 +0.013 +0.071 12 10 Upon request
 X6SM-1214-12 (1) 12 +0.016 +0.086 14 12 Upon request
 X6SM-1618-15  (1) 16 +0.016 +0.086 18 15 Upon request
 X6SM-2023-20 (1) 20 +0.020 +0.104 23 20 Upon request
 X6SM-2528-30 (1) 25 +0.020 +0.104 28 30 Upon request
 X6SM-3034-30 (1) 30 +0.020 +0.104 34 30 Upon request
 X6SM-3539-40 (1) 35 +0.025 +0.125 39 40 Upon request
 X6SM-4044-40 (1) 40 +0.025 +0.125 44 40 Upon request
More about selected part:
3D-CAD Sample request Experts PDF Quote request Price list myCatalog
(1) The specified d1 tolerance adjusts itself after press fit into housing bore. Test method
iglide® X6, Form F (metric)
Part No. d1 tolerance
d2 d3 b1 b2
    After pressfit in H7
  [mm] Min. Max. [mm] [mm] [mm] [mm]
 X6FM-0304-05 (1) 3 +0.006 +0.046 4.5 7.5 5 0.75 Upon request
 X6FM-0507-05 (1) 5 +0.010 +0.058 7 11 5 1 Upon request
 X6FM-0608-06 (1) 6 +0.010 +0.058 8 12 6 1 Upon request
 X6FM-0810-10 (1) 8 +0.013 +0.071 10 15 10 1 Upon request
 X6FM-1012-10 (1) 10 +0.013 +0.071 12 18 10 1 Upon request
 X6FM-1214-12  (1) 12 +0.016 +0.086 14 20 12 1 Upon request
 X6FM-1618-17 (1) 16 +0.016 +0.086 18 24 17 1 Upon request
 X6FM-2023-21 (1) 20 +0.020 +0.104 23 30 21.5 1.5 Upon request
 X6FM-2528-21 (1) 25 +0.020 +0.104 28 35 21.5 1.5 Upon request
 X6FM-3034-40 (1) 30 +0.025 +0.104 34 42 40 2 Upon request
 X6FM-3539-26 (1) 35 +0.025 +0.125 39 47 26 2 Upon request
 X6FM-4044-40  (1) 40 +0.025 +0.125 44 52 40 2 Upon request
More about selected part:
3D-CAD Sample request Experts PDF Quote request Price list myCatalog
(1) The specified d1 tolerance adjusts itself after press fit into housing bore. Test method
