Cable Carriers for Linear Motion

Categories

Filter

Application Requirements

Show details

System

Small energy chains

Medium-sized energy chains

Large energy chains

Dimension

Min. inner height [mm]

Max. inner height [mm]

Min. outer width [mm]

Max. outer width [mm]

Min. inner width [mm]

Max. inner width [mm]

Min. bend radius [mm]

Unsupported length and fill weight

Unsupported length [m]

Fill weight [kg]

Speed and acceleration

Speed (v) [ft/s]

Acceleration (a) [ft/s²]

Delete all filters

List

Tile

Number of products: 49

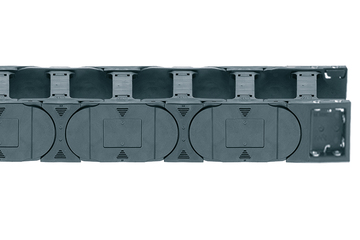

Series E4Q.44 - can be opened without tools from both sides, with crossbars at every link

Inner height hi: 44 mm
Inner width Bi: 075 - 350mm
Bend radius R: 075 - 300mm
Pitch: 67 m

Design: Openable from both sides

Upon request

121 variants ready for shipping:

70 variants within 2 working days

Shop now

H4Q.44 series – can be opened without tools from both sides, with crossbars every 2nd link

Inner height hi: 44 mm
Innen width Bi: 075 - 350 mm
Bending radius R: 075 - 300 mm
Ptich: 67 m

Design: Openable from both sides

Upon request

121 variants ready for shipping:

70 variants within 2 working days

Shop now

H4Q.58 range – can be opened without tools from both sides, with crossbars every 2nd link

Inner height hi: 58mm
Inner width Bi: 100 - 500 mm
Bend radius R: 150 - 500mm
Pitch: 91 mm

Design: Openable from both sides

Upon request

176 variants ready for shipping:

104 variants within 2 working days

Shop now

H4Q.82 range – can be opened without tools from both sides, with crossbars every 2nd link

Inner height hi: 82mm
Inner width Bi: 100 - 500 mm
Bend radius R: 150 - 1.000mm
Pitch: 111 mm

Design: Openable from both sides

Upon request

187 variants ready for shipping:

91 variants within 2 working days

Shop now

Series R4.32, energy tube, lid can be swivelled, openable from both sides

Inner height hi: 32mm
Inner width Bi: 50 - 300mm
Bend radii R: 125 - 300mm
Pitch: 56mm

Design: Hinged lids, openable from one side along the outer radius

from 40.22 USD/ft

70 variants ready for shipping:

50 variants within 2 working days

Shop now

Series R4.56, energy tube, lid can be swivelled, openable from both sides

Inner height hi: 56mm
Inner width Bi: 75 - 462mm
Bend radii R: 150 - 500mm
Pitch: 91mm

Design: Hinged lids, openable from one side along the outer radius

from 59.34 USD/ft

108 variants ready for shipping:

77 variants within 2 working days

Shop now

Series E4Q.58 - can be opened without tools from both sides, with crossbars at every link

Inner height hi: 58mm
Inner width Bi: 100 - 500mm
Bend radius R: 150 - 500mm
Pitch: 91 mm

Design: Openable from both sides

from 50.06 USD/ft

176 variants ready for shipping:

104 variants within 2 working days

Shop now

H4Q.34 series – can be opened without tools from both sides, with crossbars every 2nd link

Inner height [hi]: 34 mm
Inside width [Bi]: 075 - 350 m
Bend radius [R]: 063 - 300 mm
Pitch: 91 mm

Design: Openable from both sides

Upon request

110 variants ready for shipping:

49 variants within 2 working days

Shop now

Series 15050, energy chain with crossbars every link, openable from both sides

Inner height hi: 80mm
Inner width Bi: 50 - 600mm
Bend radii R: 150 - 600mm
Pitch: 91mm

Design: Removable along the inner and outer radius

from 54.56 USD/ft

328 variants ready for shipping:

273 variants within 2 working days

Shop now

Series E4Q.34 - can be opened without tools from both sides, with crossbars at every link

Inner height hi: 34 mm
Inner width Bi: 075-350mm
Bend radius R: 063-300mm
Pitch: 56m

Design: Openable from both sides

Upon request

110 variants ready for shipping:

49 variants within 2 working days

Shop now

Series E4.28, energy chain with crossbars every link, robust version, openable from both sides

Inner height hi: 28mm
Inner width Bi: 40 - 300mm
Bend radii R: 55 - 250mm
Pitch: 46mm

Design: Removable along the inner and outer radius

from 21.49 USD/ft

144 variants ready for shipping:

135 variants within 2 working days

Shop now

Series E4.32, energy chain with crossbars every link, robust version, openable from both sides

Inner height hi: 32mm
Inner width Bi: 50 - 400mm
Bend radii R: 63 - 300mm
Pitch: 56mm

Design: Removable along the inner and outer radius

from 24.71 USD/ft

320 variants ready for shipping:

210 variants within 2 working days

Shop now

Series E4Q.82 - can be opened without tools from both sides, with crossbars at every link

Inner height hi: 82mm
Inner width Bi: 100 - 500mm
Bend radius R: 150-1,000 mm
Pitch: 111mm

Design: Openable from both sides

from 65.42 USD/ft

187 variants ready for shipping:

91 variants within 2 working days

Shop now

Series E4.48L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides

Inner height hi: 48mm
Inner width Bi: 50 - 300mm
Bend radii R: 75 - 350mm
Pitch: 67mm

Design: Openable from both sides along the inner and outer radius

from 30.97 USD/ft

162 variants ready for shipping:

128 variants within 2 working days

Shop now

Series E4.56, energy chain with crossbars every link, robust version, openable from both sides

Inner height hi: 56mm
Inner width Bi: 50 - 600mm
Bend radii R: 135 - 500mm
Pitch: 91mm

Design: Removable along the inner and outer radius

from 47.79 USD/ft

420 variants ready for shipping:

320 variants within 2 working days

Shop now
