* The required clearance height is HF = H + 0.98 (25 mm) (for 1.01 lbs/ft (1.5 kg/m) additional load) Please consult us if space is particurlarly restricted.
** The calculated length corresponds to the chain length without mounting brackets.
A=Moving End , B=Fixed EndPitch: 1.81 (46 mm)Links per ft: 7 (22/m)Travel: SChain length = S/2 + K
Dependency of the unsupported length on the additional loadX-axis: Unsupported length in ft FLB/FLGY axis: Additional load in lbs/ftLower scale: Length of travel S in ftFLB = unsupported with permissible sagFLG = unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types

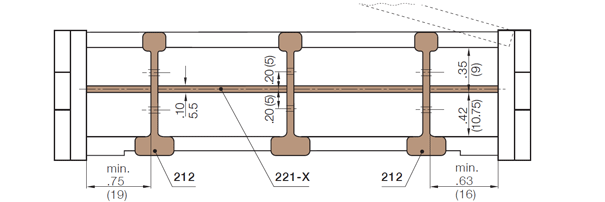

Interior separation of Series 25: 2 variants are available for the interior separation of Series 25: Option 1: Separators Separators: Freely insertable, adjustable Separators are one possibility to divise the interior of the openable chains, type 25. This is used predominantly for side-mounted chains. Option 2: Separators/Shelves Interior separation with full shelves is available for Energy Chains® 25.3, 25.4. and 25.5.
Option 1 "Steel, one-piece"
Option 2 "Steel, two-piece"
Option 2, steel - one piece
Guide troughs made of steel
1. Guide trough (blue)2. Glide bar (black)3. Assembly set (red)4. Individual fastening without C-profile5. Length of profile rail
+ Easy assembly with installation sets+ 2-part design - adaptable to chain widths+ Very stable+ Economical+ Large selection
Guide trough without glide bars part no. 92-30, guide trough with glide bars part no. 92-31
Installation sets as a joint connection part no. 92-50. XX
