1./2. Double stop dogs3.Extended surface for cables4.Glide pads5.Extensive pin6.Openable crossbar (Series 35)
* The required installation clearance is HF = H + 1.57 (40 mm) (in the case of 1.68 lbs/ft (2.5 kg/m) additional load) If extremely restricted space is available, please consult us.
** The calculated length corresponds to the chain length without mounting brackets.
A=Moving End , B=Fixed EndPitch: 2.64 (67 mm)Links per ft: 5 (15/m)Travel: SChain length = S/2 + K
Dependency of the unsupported length on the additional loadX-axis: Unsupported length in ft FLB/FLGY axis: Additional load in lbs/ftLower scale: Length of travel S in ftFLB = unsupported with permissible sagFLG = unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types
Option 1. Separators
Option 2. Shelving
Interior separation of series 30/35/36: Option 1 separators: Separators: Freely insertable, adjustable Separators are one possibility to divise the interior of the openable chains, type 35/36 (The only possibility of interior separation otf the series 30). This is used predominantly for side-mounted chains.

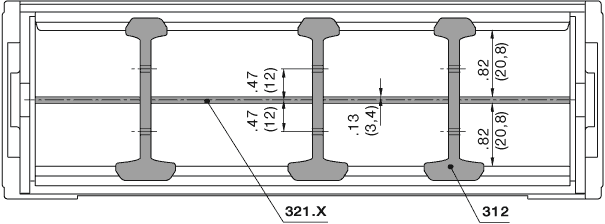

Option 2: Shelves and separators This possibility is just available for the openable chains type 35 / 36. It is useful if many thin cables with similar or identical diameters are employed. This variant always fills the entire inner width of the chain.
Option 1 "Steel, one-piece"
Option 2 "Steel, two-piece"
Option 2: Steel, one piece
Option 1: Steel
Guide troughs made of steel
1. Guide trough (blue)2. Glide bar (black)3. Assembly set (red)4. Individual fastening without C-profile5. Length of profile rail
+ Easy assembly with installation sets+ 2-part design - adaptable to chain widths+ Very stable+ Economical+ Large selection
Guide trough without glide bars part no. 93-30, guide trough with glide bars part no. 93-31
Installation sets as a joint connection part no. 93-50. XX
