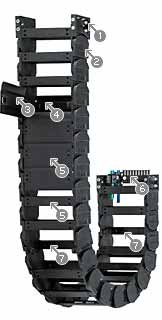

1.KMA-mounting brackets2.Mounting brackets, locking or pivoting form3. R78: Swivelable and removable lid4.R78: Removable bottom lids5.Combinable tube and chain6.Integratable strain relief7. 38/39: Removable crossbars
Inner widths Bi: 1.97 up to 11.81 (50 - 300 mm)Bending radii R: 4.92 up to 13.78 (125 - 350 mm)Pitch: 2.64 (67 mm) per link = 5 links/ft (15/m)
* The required installation clearance is HF = H + 1.57 (40 mm) (in the case of 1.34 lbs/ft (2 kg/m) additional load) If extremely restricted space is available, please consult us.
** The calculated length corresponds to the chain length without mounting brackets.
A=Moving End , B=Fixed EndPitch: 2.64 (67 mm) per linkLinks per ft: 5 (15/m)Travel: SChain length = S/2 + K
Dependency of the unsupported length on the additional loadX axis: Unsupported length in ft FLB/FLGY axis: Additional load in lbs/ftLower scale: Length of travel S in ftFLB = unsupported with permissible sagFLG = unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
3 variants of mounting brackets
Extension links allow variable widths
Diverse possibilities of interior separation
10 widths and 8 bending radii
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types
Separators can be positioned at any point in the tube cross-section. The standard separator part no. 381 acts as a secure support by virtue of its wide base, even in the case of thick and cables/hoses The separator 381T is intended for energy tubes to be equipped with several separators. This separator engages very firmly on the floor of the energy tube, and very loosely in the lid. This allows easy opening of the lid. Ensure that the separators are identically aligned in this case. The injected article number serves as orientation here. Additionally available for applications with energy tubes available: Locking separator part no. 384

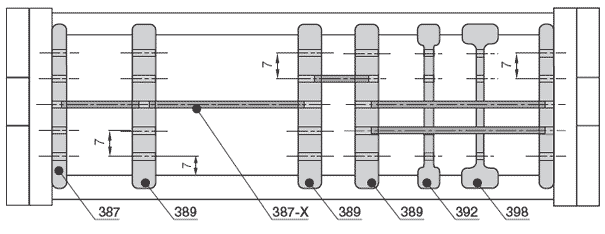

The various elements of the interior separation kit allow vertical as well as horizontal division of the Energy Chains® and tubes Side-plates and shelves form the basic framework of a rack system. On a height grid of 0.28 (7 mm), shelves of different widths can be arranged in 5 stages. Assignments are recommended in the chapter titled "Design specifications". During installation of the "open" slotted separator, the uppermost and lowermost "grid levels" cannot be occupied by a shelf. Examples of interior separation: Slotted separators Art. No. 391 for very fine divisions. However, these separators cannot be integrated into an existing system of divisions without prior dismantling of the interior separation. Slotted separator Art. No. 397 which is open on one side can be post-integrated into existing interior-separation systems without the need for dismantling them beforehand (Does not apply to shelves at the uppermost or lowermost levels).
1. KMA "pivoting"
2. KMA "locking"
Guide trough "Super-Alu", "Basic"
Guide trough "Super-Alu", "Heavy Duty"
Guide troughs made of steel
Components, trough "Basic":
1. Trough side parts, aluminum, 6.56 ft. (2m)
2. Glide bar, plastic, 6.56 ft. (2m)
3. Glide strips, plastic, 6.56 ft. (2m) (without
glide strips on request)
10. Optional: Silencer profile, rubber
Components, installation set:
4. Bottom clamp, aluminum
5. profile rail, steel galvanized
6. Screw M8 x20
7. Sliding nut M8
8. Interface connector, plastic
Aluminum "Super Trough"- the igus® standard
The Aluminum "SuperTrough" is a modular guide trough system for long travels (when E-Chains® glide on themselves, as per sketch). Aluminum
"SuperTrough" is available in low cost "basic versions" and can be upgraded for heavy duty applications. This universal usage makes it the
igus® recommended new standard trough system.
1. Interface connector
2. Polymer glide bar
3. Bottom clamp
4. Glide strip
1. Trough side parts, aluminum, 6.56 ft (2 m)
2. Glide bar, plastic, 6.56 ft (2 m)
3. Glide strips*, plastic, 6.56 ft (2 m)
5. C-profile, steel galvanized
7. Sliding nut M6
9. Bracket "Heavy Duty"
10. Silencer profile, rubber
11. Screw M6 x 20
*without glide strips on request
1. Aluminium profile
3. Heavy Duty bracket
6. Silencer profile
1. Guide trough (blue)2. Glide bar (black)3. Assembly set (red)4. Individual fastening without C-profile5. Length of profile rail
+ Easy assembly with installation sets+ 2-part design - adaptable to chain widths+ Very stable+ Economical+ Large selection
Guide trough without glide bars part no. 93-30, guide trough with glide bars part no. 93-31
Installation sets as a joint connection part no. 93-50. XX
