1.KMA mounting brackets2.Mounting brackets, locking or pivoting form3.R88: Swivelable and removable lid4.R88: Removable bottom lids5.Combinable tube and chain6.Integratable strain relief7.40/41: Removable crossbars on both sides
Inner widths Bi: 2.95 up to 18.19 (75 - 462 mm)Bending radii R: 5.91 up to 19.68 (150 - 500 mm)Pitch: 3.58 (91 mm) per link = 4 links/ft (11/m)
* The required installation clearance is HF = H + 1.97 (50 mm) (in the case of 1.34 lbs/ft (2 kg/m) additional load) If extremely restricted space is available, please consult us.
** The calculated length corresponds to the chain length without mounting brackets.
A=Moving End , B=Fixed EndPitch: 3.58 (91 mm) per linkLinks per ft: 4 (11/m)Travel: SChain length = S/2 + K
Dependency of the unsupported length on the additional loadX axis: Unsupported length in ft FLB/FLGY axis: Additional load in lbs/ftLower scale: Length of travel S in ftFLB = unsupported with permissible sagFLG = unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
Diverse possibilities of interior separation
3 variants of mounting brackets
Extension links allow variable widths
10 widths and 9 bending radii
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types
Separators can be positioned at any point in the tube cross-section. The standard separator part no. 401 acts as a secure support by virtue of its wide base, even in the case of thick cables/hoses In the case of applications with many small cables which need to be separated from each other by means of a separator, the separator with a narrow base, part no. 483 can be used. The separators 401 and 483 can be used for Energy Chains® as well as energy tubes of the above-mentioned series.

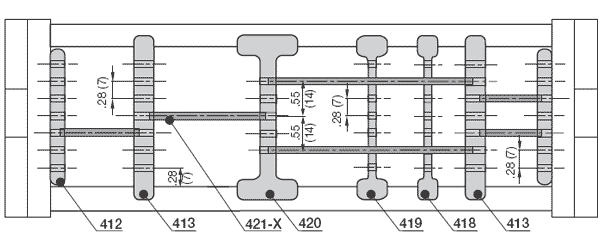

The various elements of the interior separation kit allow vertical as well as horizontal division of the Energy Chains® and tubes Side-plates and shelves form the basic framework of a rack system. On a height grid of 0.28 (7 mm), shelves of different widths can be arranged in 7 stages. Assignments are recommended in the chapter titled "Design specifications". During installation of the "open" slotted separator, the uppermost and lowermost "grid levels" cannot be occupied by a shelf. Examples of interior separation: Slotted separators Art. No. 418 for very fine divisions. However, these separators cannot be integrated into an existing system of divisions without prior dismantling of the interior separation. Slotted separator Art. No. 419 which is open on one side can be post-integrated into existing interior-separation systems without the need for dismantling them beforehand (Does not apply to shelves at the uppermost or lowermost grid levels).
1. KMA "pivoting"
2. KMA "locking"
Guide troughs made of steel
1. Guide trough (blue)2. Glide bar (black)3. Assembly set (red)4. Individual fastening without C-profile5. Length of profile rail
+ Easy assembly with installation sets+ 2-part design - adaptable to chain widths+ Very stable+ Economical+ Large selection
Guide trough without glide bars part no. 94-30, guide trough with glide bars part no. 94-31
Installation sets as a joint connection part no. 94-50. XX
