In this version special plastic glide shoes are mounted on the side of the chain link every 1.000 to 2.000 mm. The function of these guide elements resembles the leeboards used on sail boats. Some of these leeboards are conceived in such a way that in contact with firm ground they pivot upward and enable the continuation of the travel. Similarly the glide shoes in AUTOGLIDE go up and down, each according to its position as lower run or upper run of the chain. They provide the precise lateral guidance and a smooth glide of the e-chain®. The glide shoes are mounted on every 20th chain link from the fixed end of the e-chain®. Feed point = end of travel Chain length = S + K
Number of glide shoes = (chain length [m] - 4 m)/1,12 m
Please note: In addition to the outer width of the chain, there are 31 mm for the width of the two gliding elements!
** The calculated length corresponds to the chain length without mounting brackets.
A= Moving end, B= Fixed endPitch: 56 mmlinks per m: 18travel: SChain length = S/2 + K
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
8 widths und 6 bending radii
Interior separation in 3 options
3 mounting bracket options
Various strain relief systems possible

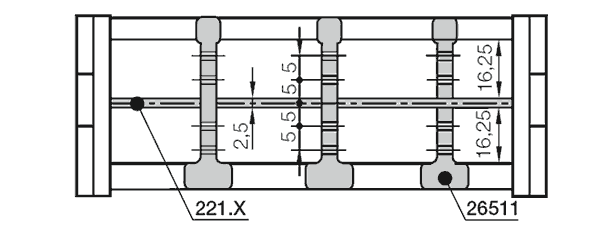

Option 1: Separators

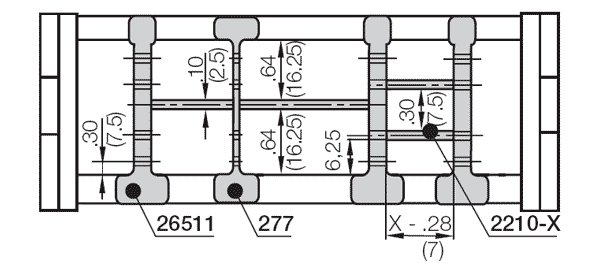

Option 2: Full-width shelves
Option 3: lower shelves
Separators offer a possibility to partition the interior of the snap-open energy tube of the Series 2680. They are used exclusively for vertical separation.
Full width shelf
This possibility makes sense when using many thin tubes with similar or equal diameters. These versions fill the entire inner width of the chain.
They are sensible when many cables with different diameters are used.
