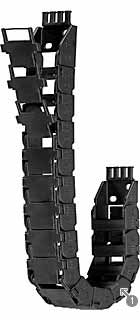

1. Small divisions for smooth operation (11 links/ft (33/m))
Inner widths Bi: 0.59 up to 1.97 (15 - 50 mm)Bending radii R: 1.5 up to 7.09 (38 - 180 mm)Pitch: 1.2 (30.5 mm) per link = 11 links/ft (33/m)
* The required installation clearance is HF = H + 0.79 (20 mm) (in the case of 0.67 lbs/ft (1 kg/m) additional load) If extremely restricted space is available, please consult us.
** The calculated length corresponds to the chain length without mounting brackets.
A=Moving End , B=Fixed EndPitch: 1.2 (30.5 mm) per linkLinks per ft: 11 (33/m)Travel: SChain length = S/2 + K
Dependency of the unsupported length on the additional loadX axis: Unsupported length in ft FLB/FLGY axis: Additional load in lbs/ftLower scale: Length of travel S in ftFLB = unsupported with permissible sagFLG = unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
Interior separation is possible
2 variants of mounting brackets
4 widths, 7 bending radii
Other installation types
Separators They are used when a vertical interior separation is required exclusively.
Standard mounting brackets
Steel mounting brackets
Steel mounting bracket, two-piece
Cross-section through a one-piece guide trough with glide bar(for C and D dimensions, refer to the delivery table)
