Measuring system cables

The chainflex® measuring system cables, as well as resolver cables, feedback cables and encoder cables for energy chains are cables for medium to high stress. The measuring system cables have various approvals and are available for systems of virtually all renowned manufacturers such as B&R, Baumüller, Heidenhain, Lenze or Siemens. Depending on the type, they are flame-retardant, coolant-resistant and oil-resistant, cold-flexible or twistable. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.
  • Bending radii up to 10xd
  • Jacket materials: PVC, iguPUR, PUR or TPE

Products

Filter

Application Requirements
Cable structure
Electrical information
Certifications and approvals
Drive technology system

Number of products: 7

chainflex® measuring system cable CF884
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Oil resistance: No oil resistance
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.1.1

from 1.39 USD / ft

Available on request
Shop now

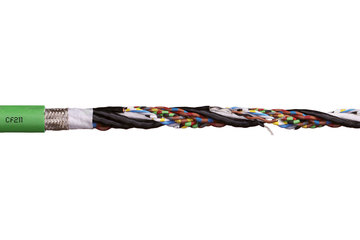

chainflex® measuring system cable CF211
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • chainflex® class: 4.2.2.1

from 1.54 USD / ft

Available on request
Shop now

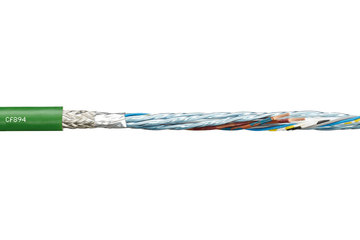

chainflex® measuring system cable CF894
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Silicone-free
  • Flame retardant
  • chainflex® class: 3.1.3.1

from 1.74 USD / ft

Available on request
Shop now

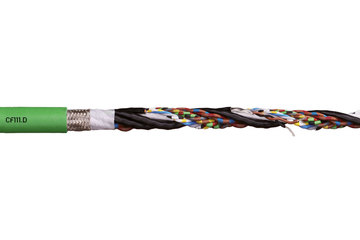

chainflex® measuring system cable CF111-D
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • chainflex® class: 4.2.3.1

from 2.46 USD / ft

Available on request
Shop now

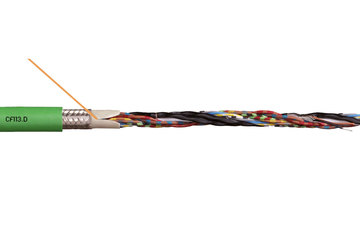

chainflex® measuring system cable CF113-D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1

from 2.54 USD / ft

Available on request
Shop now
chainflex® measuring system cable CF11-D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organc oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • Hydrolysis and microbe-resistant
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.6.4.1

from 2.73 USD / ft

Available on request
Shop now

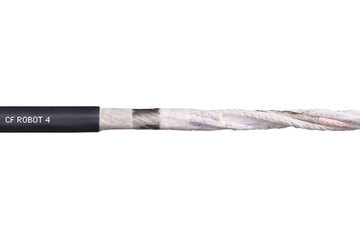

chainflex® measuring system cable CFROBOT4
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • chainflex® class: 6.1.3.3

from 7.63 USD / ft

Available on request
Shop now

Measuring system cable

Measuring system cable

chainflex® measuring system cable is an umbrella term and covers many complex uses. The chainflex® measuring system cables are divided into resolver cables, feedback cables, and encoder cables. Here, you can find the not-yet-assembled measuring system cable from igus® from the chainflex® series. The resilience of the measuring system cables is tested in that they are subjected to many millions of cycles in the igus® test laboratory. There is a choice of PVC, PUR and TPE measuring system cables. The chainflex® cable is available for many systems, including:

B&R | Baumüller | Beckhoff
Berger Lahr | Control Techniques | Danaher Motion
ELAU | Fagor | Fanuc
Heidenhein | Lenze | NUM Rexroth | SEW | Siemens | Stöber

The chainflex® measuring system cable has diverse approvals and certificates, e.g. UL/CSA, CTP, EAC or CE and others. As usual, our chainflex® cables are UV-resistant, flame-retarded or oil-resistant and can therefore be used in a wide variety of applications. Choose the minimum bend radius that you need. Measuring system cables can be used in high speeds and accelerations. Each one of our cables meets the requirements of drive manufacturers. You can find assembled chainflex® cables here.

Do you have any questions about our chainflex® measuring system cable?
Our chainflex® cable experts are always there to help you; simply use our online Chat function or give us a call. Outside business hours, you can leave us a message or send us an e-mail. Further alternative designations for measuring system cables are listed here:

measuring system cables
resolver cables
feedback cables
encoder cables
encoder cables
PVC measuring system cables
PUR measuring system cables
TPE measuring system cables
