twisterband HD for rotary motion in very small spaces

Instead of integral hinges, the twisterband HD has a very stable pin/hook connection between the chain links for longer service life, higher filling and temperatures below 32°F.

Benefits:

  • Continuous cable guiding in rotational movements
  • Stable pin/hook connection for high load and long service life
  • Temperature range -40°F to +176°F, outdoor applications
  • Guidance of electrical, fiber optic and pneumatic cables in one system
  • Cable-friendly due to defined bending radius stop dogs
  • Max. rotational speed 360°/s
  • 7,000°* and more horizontal rotary motion, and up to 3,000° in the vertical installation orientation
*Depending on installation orientation, vertical: up to 3,000°, horizontal: 7,000° and more possible

Typical application areas: Compact rotary movements of all kinds, machine tools, turntables, robots

Shop twisterband HD below:

Part No.Inner widthInner heightX1 and X2Minimum bend radiusMaximum bend radiusMax. cable ø
TBHD12.24 mm11 mm40mm / 140mm24 mm35 mm10 mm Request
TBHD20.44 mm18 mm50mm / 220mm37 mm63 mm14 mm Request
TBHD30.75 mm22 mm90mm / 330mm44 mm77 mm17 mm Request
TBHD42.135 mm30 mm90mm / 500mm56 mm119 mm24 mm Request
X1 = ø inner machine installation space X2 = ø outer machine installation space

twisterband

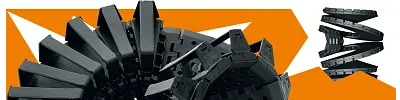

The twisterband HD is composed of separate e-chain links with the pin/hook connecting system. This results in a defined radius with higher strength.


twisterband

e-chain links made of fiber-reinforced material - this enables significantly increased strength and service life.


twisterband HD

The new base plates are delivered as standard as part of the twisterband module!
