Modular connection: drive technology/lead screw technology and drygear® Apiro gearbox

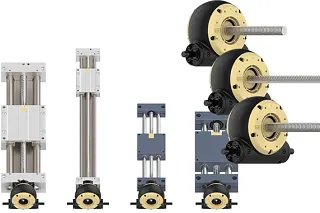

Apiro connection to linear units

Connection to and synchronisation with drive and lead screw technology

Our "Apiro" gearbox system for a wide variety of kinematic elements and superstructures was named for the Greek word for "infinite". Individual applications can be implemented with the drygear® Apiro gearbox system in an extremely modular and cost-effective manner.
Typical application areas are lane adjustments, pusher tasks, gearboxes with various gear ratios, slewing rings and rotary axes. The new connection to drylin drive technology and dryspin lead screw technology makes you even more flexible in implementing individual automation systems.

Connection to drylin® drive technology

Apiro connection to a linear unit

The direct connection to drylin® undefined and undefineddrive technology is mounted on the output pins of drylin® lead screw units. This allows several Apiro gearboxes to be connected in series and drylin® drive technology synchronised.
Available options are:

SHT-12/SLW-10xx
SLW-1660
SHT-20
SHT-BB-20/SLW-BB-2080
SHT-30
SHT-BB-30/SLW-BB-25120

Possible area of application: undefined

Connection to dryspin® lead screws

Apiro connection to the lead screw

The simple, direct connection of Apiro gearboxes to the output of undefined allows lead screw movement depending on the thread pitch. Lead screws of 10, 12, and 16mm diameter can be connected to various pitches.
Available options are:

DS10x25
DS12
TR16x2

Possible area of application: undefined

Triangle up

Improve technology

Modular drygear® Apiro gearbox system expansion

Combination and synchronisation with the drylin® drive technology system
Set-up instructions including parts list

Triangle down

Cost down

Cost-effective gearboxes made of iglidur polymer material
Modular design for manual and motor-operated adjustments
Fast conversion possible
Assembly without any special tool

Square

Proof

Easy assembly in seconds
Maintenance-free through the use of self-lubricating igus polymers

Circle

Sustainability

Completely lubrication-free operation
Lightweight components

Infinite combination options with the drygear® Apiro gearbox system

Technical information

Connection to drylin® drive technology

Part number	Hole pattern	Shaft Ø	Attachment to axis	L1	L2	L3	H1	B1	S1
RL-A54.0113	40x20	8	SLW-1660	55	40	20	62	13	8
RL-A54.0114	40	10	SHT-12/SLW-10xx	55	40	20	62	13	10
RL-A54.0115	40	12	SHT-20	55	40	20	62	13	12
RL-A54.0116	40	14	SHT-30/SLW-1660	55	40	20	62	13	14
RL-A54.0117	48	12	SHT-BB-20/SLW-BB-2080	65	48	36	62	13	12
RL-A54.0118	48	14	SHT-BB-30/SLW-BB-25120	65	48	36	62	13	14

Connection to dryspin® lead screw technology

Part number	Transmission	B1	Ø S	H1	H2	L1	L2	G1
RL-A10.0190	1:4	50	8	87	31	90	110	TR16
RL-A10.0191	1:32	50	8	87	31	90	110	TR16
RL-A10.0192	1:64	50	8	87	31	90	110	TR16
RL-A10.0193	1:4	50	8	87	31	90	110	DS10
RL-A10.0194	1:32	50	8	87	31	90	110	DS10
RL-A10.0195	1:64	50	8	87	31	90	110	DS10
RL-A10.0196	1:4	50	8	87	31	90	110	DS12
RL-A10.0197	1:32	50	8	87	31	90	110	DS12
RL-A10.0198	1:64	50	8	87	31	90	110	DS12
