Preloaded linear carriage, 12mm system height

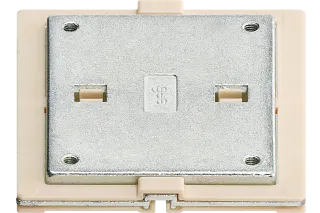

Preload function for drylin® N linear carriage, installation size 80

Preload function for drylin® N linear carriage, installation size 80
drylin® N low-profile linear guide for small installation spaces up to 12mm. A variety of rails and linear carriages are available in four installation sizes and widths up to 80mm. In installation size 80 and suitable for the rail profile NS-01-80 (silver) and NS-01-80-AR (black), we are introducing a preloaded carriage for the first time in the form of the NW-02-80-P carriage. Integrated elastomer elements reduce noise and rattling as well as bearing clearance to a minimum.

Tech up with igus news

Tech up

  • Rattle-free, with elastomer camber
  • Lower bearing clearance
  • Rich, high quality adjustment feel
  • Low-profile, 12mm system height
  • Integrated thread inserts within the carriage body
Cost down with igus news

Cost down

  • Ready-to-install, pre-assembled linear carriages
  • Suitable for low-profile rails NS-01-80 in silver and in black
  • Fail-safe integrated elastomer
  • Individual elastomer camber possible
  • Dimensionally identical to carriages with fixed and floating bearings
evidence from igus news

Proof

  • Tested: linear application, horizontal mounting position, two NS-01-80 rails, spacing 400mm, with two NW-02-80 carriages each, spacing 200mm, acceleration 1.25m/s², 50N centric load, expected service life: 30,000km
  • Tested: linear up to four times quieter than metal bearings
  • Tested: corrosion resistance of linear rails, salt-spray tested (NSS) according to DIN EN 9227/ASTM B-117
recycling with igus news

Sustainability

  • 100% lubrication-free operation
  • Sliding elements individually renewable
  • Reusable carriage body
  • Low emission levels in the interior due to very quiet operation
  • Maintenance-free due to self-lubricating high-performance polymers from igus®
