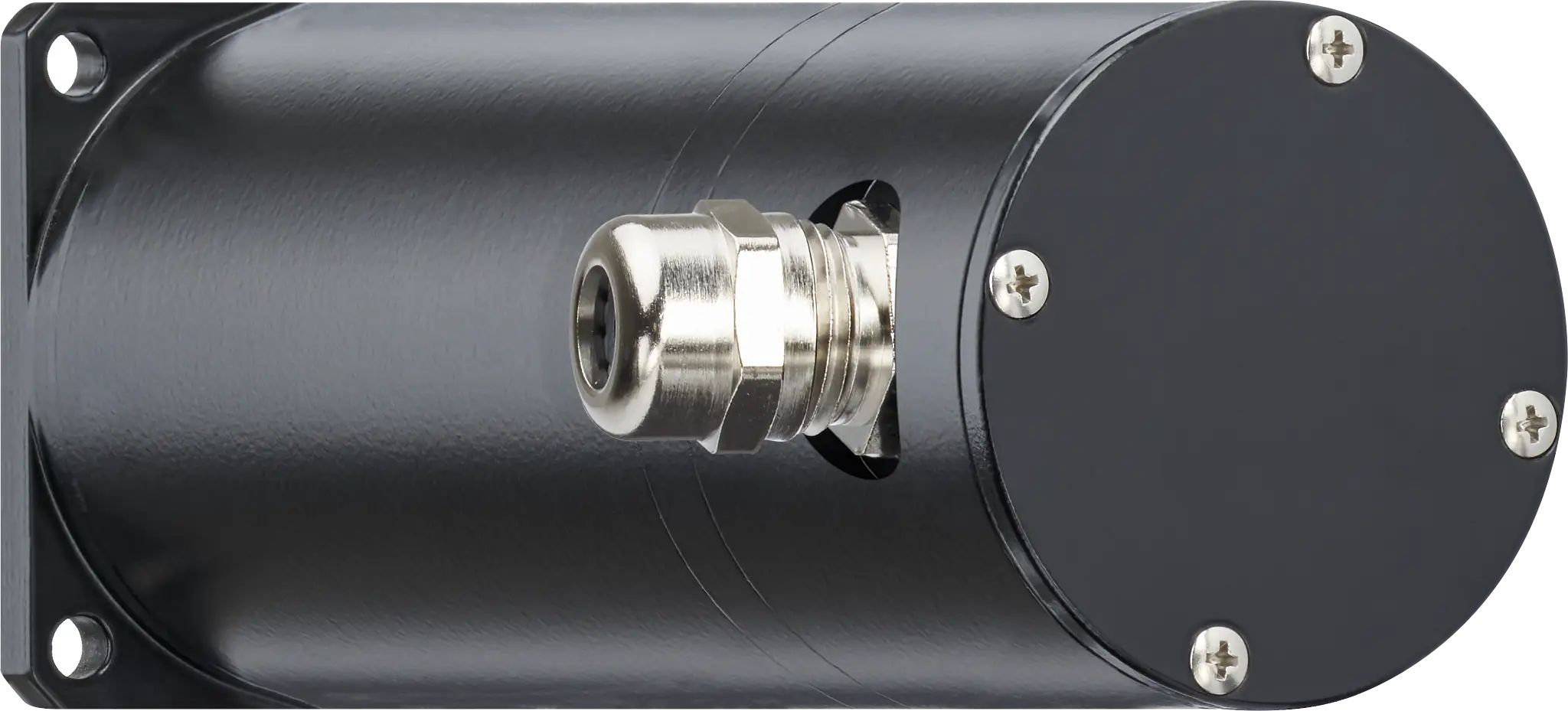

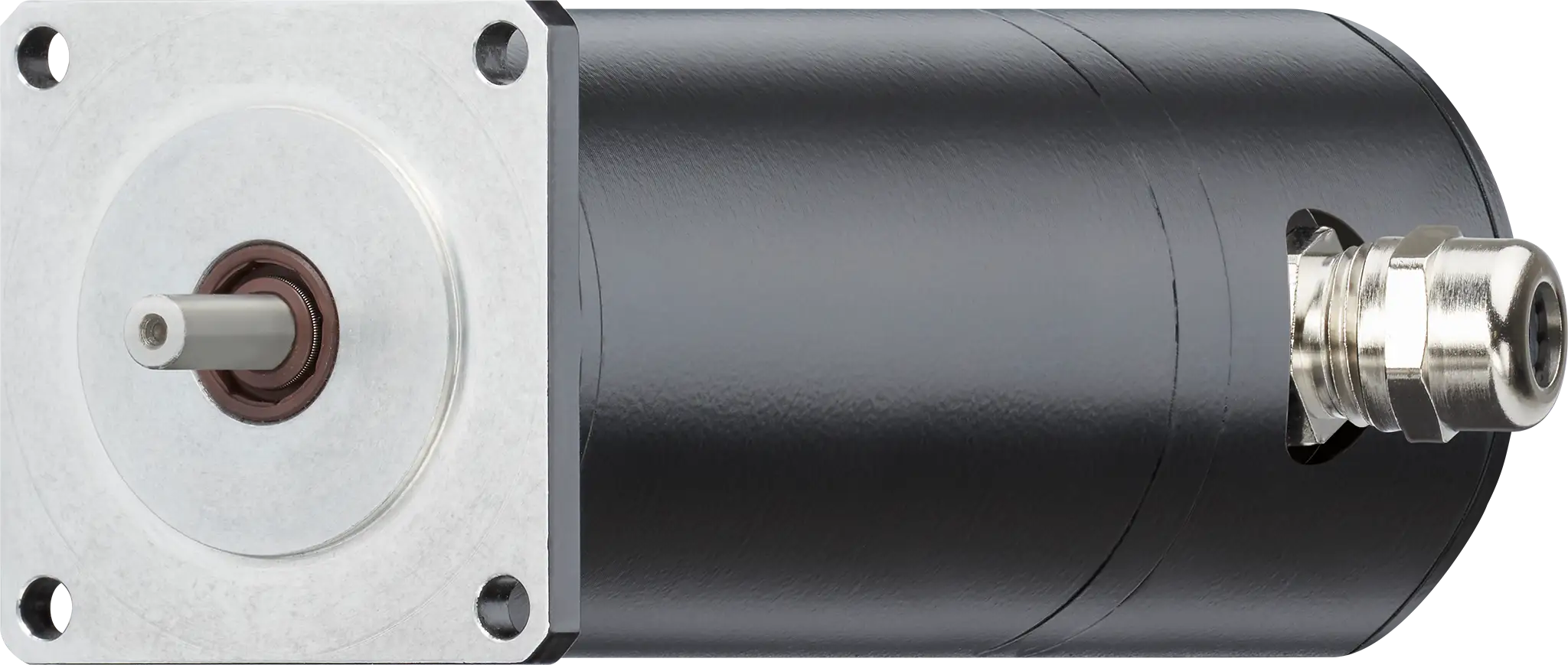

MOT-AP-S-060-013-056-K-A-AAAI product image

MOT-AP-S-060-013-056-K-A-AAAI technical drawing

1 of 4

drylin® E special motor with terminal box, water protection, NEMA23

Installation size: NEMA23/flange installation size 56mm
Protection class motor housing: IP68 (10 m)

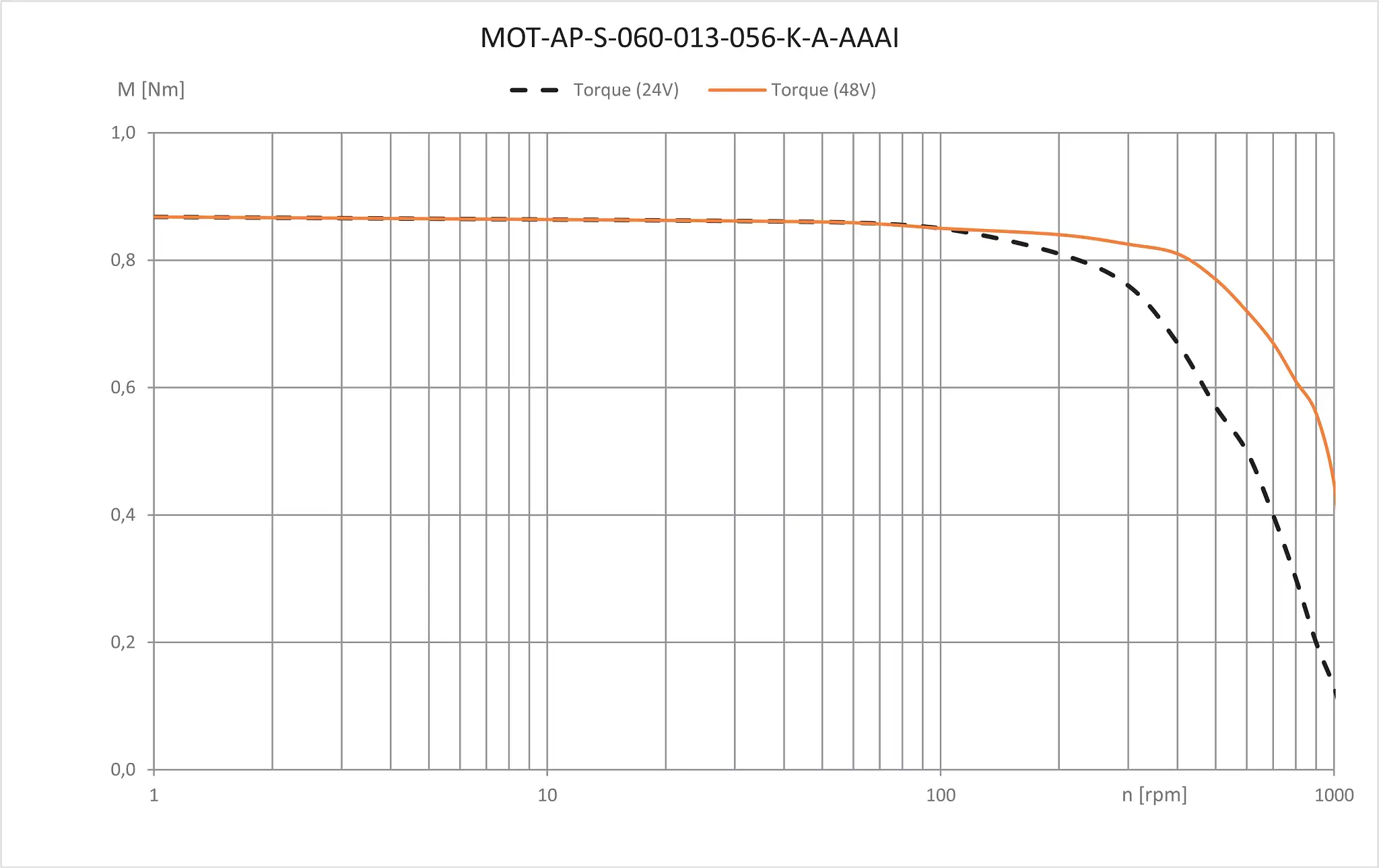

Holding torque: 1.30Nm
Nominal current: 4.20A
Motor connection: terminal box

Item no.

MOT-AP-S-060-013-056-K-A-AAAI

The IP86 (underwater) stepper motors are ideally suited for applications in water and humid environments.

The IP68 motor can be used up to a depth of 10m (equivalent to 1 bar) and, together with the drylin® lead screw linear systems made of stainless steel or toothed belt axes UW, form a perfect underwater team.

Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, their precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.
