igubal® spherical insert bearing, turned, for higher speeds, iglide® H3

igubal H3EM – high speeds, temperatures and chemical resistance

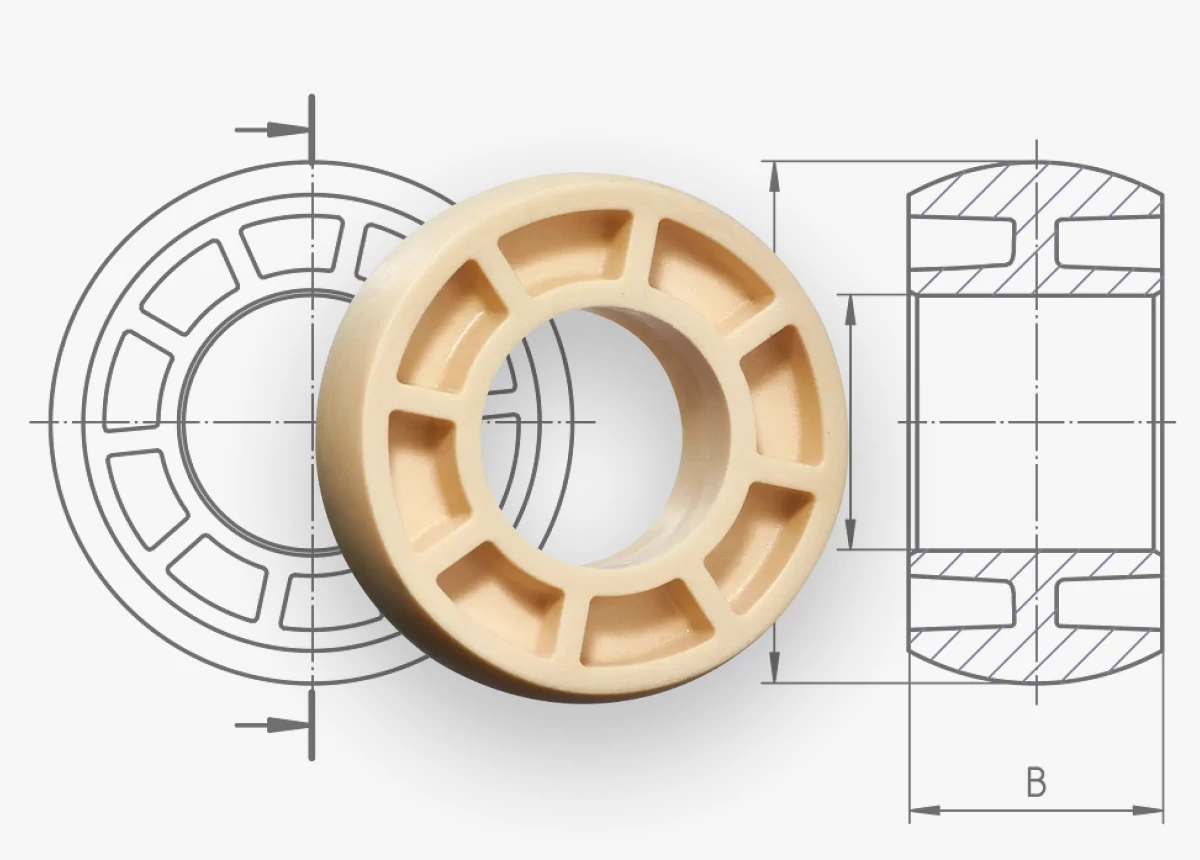

The H3EM spherical insert bearing, which is machined from bar stock, can be used in both pillow block bearings and flange mounted bearings. Manufactured from the high-performance plastic iglidur H3, it is characterised by extremely high wear resistance and excellent coefficients of friction, even under extreme ambient conditions. iglidur H3 is the first choice when long service life is required at high temperatures or in aggressive media.

Thanks to the embedded solid lubricant, no additional lubrication is required, which makes operation in dirty or damp environments particularly advantageous. Our spherical insert bearings are easy to install and offer a cost-effective and lightweight alternative to a conventional metal ball bearing.

Housing compatibility

In our shop, you will also find flange mounted bearings and pillow block bearings with plastic housings, which have a positive effect on the total weight of your system.

igubal H3 spherical insert bearing

• Temperature range [°C]: -40 to +200, short-term +240
• Shaft diameter: 20mm - 40mm
• Housing sizes: P/F/FL 204, P/F/FL 208
• Advantages: Maintenance-free, lubrication-free, long service life, resistant to dust and dirt, vibration-dampening, very good chemical resistance, low moisture absorption, resistant up to a radiation intensity of 2 · 10²Gy
• Dimensional series: Based on DIN 626-1 (Rolling bearing - Radial deep groove ball bearing with spherical outer ring surface and extended inner race - Part 1: Insert bearing)
• Application environment: High speeds, maximum wear resistance paired with excellent temperature and media resistance, low coefficients of friction with high temperature resistance, suitable for regular aggressive cleaning
