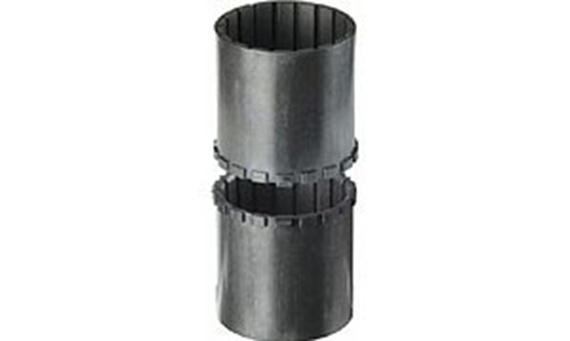

drylin® R - Liner TUM-01, mm - for high temperatures

Special features

Made from iglide® T500 (in two parts)

Recommended for high temperature applications over 176°F and up to 482°F

High chemical resistance

Maintenance-free

Very low moisture absorption

Available for all adapters and pillow blocks (Ø12 mm – 30 mm)

Recommended for use on stainless steel or hard-chromed steel



Liner TUM-01, mm - for high temperatures

d1 [mm]:



Dimensions and weight [mm]

Order no. d1 Tolerance d2 b1 r t z Weight
  [mm] [mm] [mm] [mm] [mm] [mm] [mm] [g]
ready for shipping in 24 - 48 hours TUM-01-12 12 14 31 3 0.8 2.6 1.46 9.19 USD Add to shopping cart
ready for shipping in 24 - 48 hours TUM-01-16 16 18 35 3.5 0.8 3.6 2.13 10.78 USD Add to shopping cart
ready for shipping in 24 - 48 hours TUM-01-20 20 23 44 5 0.8 3.6 4.7 11.92 USD Add to shopping cart
ready for shipping in 24 - 48 hours TUM-01-25 25 28 57 5 0.8 4.1 8.27 13.27 USD Add to shopping cart
ready for shipping in 24 - 48 hours TUM-01-30 30 34 67 5 0.8 4.1 15.57 25.86 USD Add to shopping cart
Delivery time on request TUM-01-40 40 44 79 6 1.3 5.1 24 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Tolerance according to igus® test method

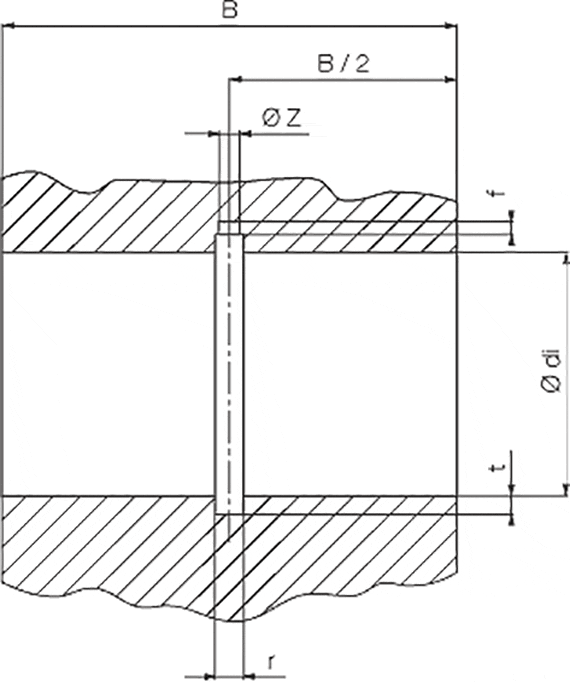

Housing bore for liner TUM-01
Dimensions [mm]

Order no. Shaft di B r t f z
  [mm]
Ø
[mm]
H7
[mm]
h10
[mm] [mm] [mm] [mm]
ready for shipping in 24 - 48 hours TUM-01-12 12 14 32 3 1 1.5 3.1
ready for shipping in 24 - 48 hours TUM-01-16 16 18 36 3.5 1 1.7 3.6
ready for shipping in 24 - 48 hours TUM-01-20 20 23 45 5 1 2 3.6
ready for shipping in 24 - 48 hours TUM-01-25 25 28 58 5 1 2 4.1
ready for shipping in 24 - 48 hours TUM-01-30 30 34 68 5 1 2 4.1
Delivery time on request TUM-01-40 40 44 80 6 1.5 2.5 5.1
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Liners of the TUM-01 series are used in:

drylin® R - RJUM-01

Linear plain bearings, mm

drylin® R - RJUM-03

Self-aligning linear plain bearings, mm

drylin® R - RJUM-06/36

Housing bearing, mm

drylin® R - FJUM-01/31

Flange housing, mm

Liners of the TUM-01 series can be used in all housings that have been developed for the drylin® R standard series.
