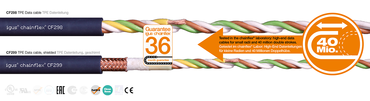

TPE data cables for up to 40 million double strokes inside e-chains®


Tested in the chainflex® laboratory: high-end data cables for small radii and 40 million double strokes.

The high-end data cables with TPE jacket are available from now on as unshielded (CF298) and shielded (CF299) versions with double the service life (up to 40 million guaranteed double strokes).

Order online now!

Dynamic applications with very small bend radii can quickly allow the copper cores of conventional cables to meet their mechanical stress limits. It is precisely for such scenarios that igus now guarantees 40 million double strokes on its CF298 (unshielded) and CF299 (shielded) data cable series with the smallest bending factor (4xd) for moving data cables in e-chains. This is made possible mainly by the combination of the new high-performance alloy conductor material and the highly flexible igus TPE outer jacket, which prevents cracks and breaks.


Tech up

Tech up

  • longer guaranteed service life
  • Bend radii of 4xd due to special alloy


Cost down

Cost down

  • Planning security
  • Less frequent need to replace the cable
  • With a 36-month guarantee
  • Reduce process costs with igus online tools

Proof

Proof

  • Service life calculator
  • tested in the chainflex® laboratory


Sustainability

Sustainability

  • longer service life of the cable

USP picture

TPE jacket for the heaviest duty use

USP picture

Suitable for the smallest installation spaces due to bend radii of up to 4xd

USP picture

100% planning capability with guaranteed 40 million double strokes in e-chains

USP picture

Oil and bio-oil-resistant

USP picture

PVC and halogen-free

USP picture

Optimised for cleanroom applications


For extremely heavy duty and tough environments

This new generation of igus data cables is ideal for short, very quick movements, for example, in pick-and-place machines, automatic doors or other very fast handling applications. Due to the doubling of the service life guarantee to 40 million double strokes, these cables offer the user absolute planning safety and dependability, which can be of decisive importance especially for high-end applications.

Since the cables are certified according to ISO Class 1, they can also be used in the cleanroom, which in combination with the extreme service life represents an absolute competitive advantage. They are also suitable for both indoor and outdoor applications due to their resistance to UV, low temperature and oil.

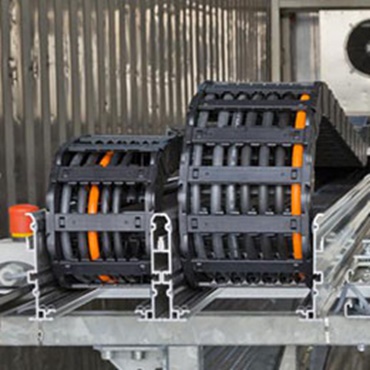

Highlight test

tested ... proven ... guaranteed!

Extensive tests lead to a service life guarantee of 40 million double strokes

Providing a guarantee to the end customer exceeds obligatory warranty claims or defect liability by far. chainflex customers thus not only receive the promise to purchase a defect-free product, but also reliable functionality over a certain period. Durability guarantee is what matters.

In current tests with the latest generation of chainflex data cables in the chainflex test laboratory a service life of over 54 million double strokes has been achieved:


Test number Cable type Bend radius service life
4932 CF298.05.04 data cable 18mm (factor 3.1xd) 54 million strokes


Search directly for the suitable TPE data cable



Technical data:
Part No. Minimum bend radius
Conductor nominal cross section
mm²
Outer diametermax.
mm
Copper index
[kg/km]
Weight
[kg/km]
ready for shipping in 24 - 48 hours CF298-01-02 0.14 0.18 3.4 11.561 2.36 USD Add to shopping cart
ready for shipping in 24 hours CF298-01-04 0.14 0.22 6.121 19.042 4.25 USD Add to shopping cart
ready for shipping in 24 hours CF298-01-08 0.14 0.28 11.561 33.324 7.91 USD Add to shopping cart
ready for shipping in 2 - 6 weeks CF298-02-04 0.25 0.24 10.881 23.123 7.36 USD Add to shopping cart
ready for shipping in 2 - 6 weeks CF298-02-07 0.25 0.28 19.042 35.365 12.56 USD Add to shopping cart
ready for shipping in 24 - 48 hours CF298-02-08 0.25 0.3 21.763 40.805 14.40 USD Add to shopping cart
ready for shipping in 24 - 48 hours CF298-03-07 0.34 0.3 23.123 42.165 12.97 USD Add to shopping cart
ready for shipping in 24 hours CF298-05-04 0.5 0.26 19.042 33.324 10.19 USD Add to shopping cart
ready for shipping in 24 hours CF298-02-03 0.25 0.22 8.161 19.042 5.62 USD Add to shopping cart
ready for shipping in 24 - 48 hours CF298-03-04 0.34 0.24 12.922 25.163 7.60 USD Add to shopping cart
More about selected part:
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog



Technical data:
Part No. Minimum bend radius
Conductor nominal cross section
mm²
Outer diametermax.
mm
Copper index
[kg/km]
Weight
[kg/km]
ready for shipping in 24 hours CF299-01-02 0.14 0.24 11.561 25.163 5.66 USD Add to shopping cart
ready for shipping in 24 hours CF299-01-04 0.14 0.26 14.962 31.964 7.44 USD Add to shopping cart
ready for shipping in 24 hours CF299-01-08 0.14 0.33 23.803 54.407 12.50 USD Add to shopping cart
ready for shipping in 24 hours CF299-02-04 0.25 0.28 21.763 38.085 10.79 USD Add to shopping cart
ready for shipping in 24 - 48 hours CF299-02-07 0.25 0.33 31.284 55.767 16.61 USD Add to shopping cart
More about selected part:
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

ISO Class 1 for numerous products

Cleanroom solutions from igus

Absolute air purity is essential in many industries, especially in production, in the medical and pharmaceutical technology, aerospace technology, nano technology and measurement technology. Any contamination in cleanroom conditions has a direct damaging impact on products and processes and costs a lot of money. In the case of cleanrooms, the requirements regarding the abrasion-resistance of moving components are especially high.

All about cleanroom solutions

Ready-to-connect cables

readycable portfolio

Offering around 4,600 harnessed motor, servo, signal and encoder cables in accordance with 24 manufacturer standards, igus is the world's No. 1 when it comes to harnessed cables for use in energy chains. Providing 7 different cable qualities, the range always offers the most cost-effective drive cable that is guaranteed to work.

With harnessing

igus energy chains from the market leader

e-chains

Energy chains are mechanical machine elements. They are there to guide and protect energy, data and signals that have to withstand the most diverse environmental influences. The decisive factor here is the symbiosis of the components moving against each other.
