Spherical ball, high-temperature, igubal®

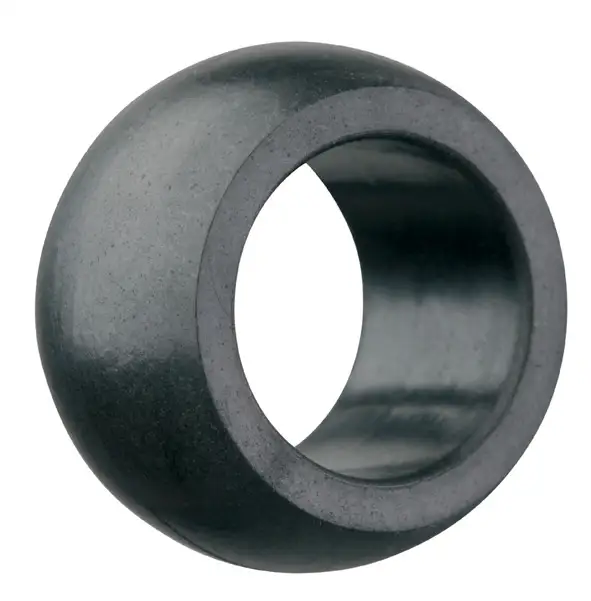

igubal® spherical ball XEM

Every single iglide® material has its own special properties, which determine its suitability for specific applications and requirements.

The iglide® X (T500) material offers a combination of high temperature resistance with high compressive strength and chemical resistance.

Material properties

• Temperature resistant from -100 °C to +250 °C in continuous operation
• Universal chemical resistance
• High compressive strength
• Very low moisture absorption
• Excellent wear resistance over the entire temperature range

Typical application areas

• Plant construction
• Model making
• Furniture/Industrial design
• You will find plenty of additional application areas at our Industry Solutions

When to use it?

• If you need maintenance-free materials
• When dimensional series E components are to be fitted
• If high compressive strength is required
• If high flexibilty is required

When not to use it?

• If temperatures are higher than +250 °C
• If diameters above 12 mm are required
• If rotation speeds higher than 0.5 m/s are required

Use our filter options to find the suitable product

Tolerances

Maintenance-free igubal® spherical balls are designed with a tolerance of the inner diameter of E10. The shaft tolerance should be between h6 and h9. Unless stated otherwise, all tolerance values are treated according to DIN ISO 2768-m
