Series 07 ESD

1 of 4

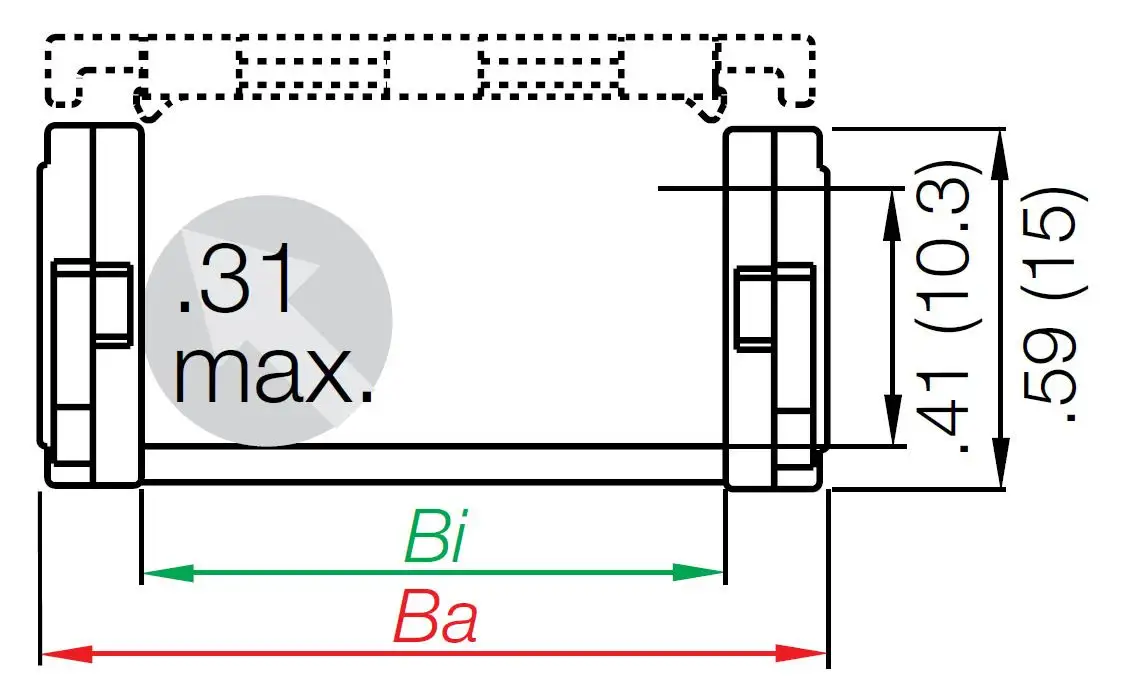

Inner height hi: 10,3mm
Inner width Bi: 10 - 50mm
Bend radii R: 18 - 38mm
Pitch: 20mm
For permanent, maintenance-free conductivity
zipper-like design for quick opening and closing of lids
Small pitch for low noise, smooth running
High accelerations: 100m/s2 and more

Item no.

07-16-028-0-ESD

Inner width [Bi] [in]

0.63 (16 mm)

Bend radius [R] [in]

1.1 (28 mm)

zipper ESD energy chains deliver in terms of practicality and performance. The zipper function makes them a very useful product to reduce assembly time. The small pitch, the robust elastic zipper band, and the sturdy links work well in high acceleration environments. The zipper Series is one of the most popular igus e-chain series in demanding industrial sectors.

For permanent, maintenance-free conductivity
Zipper-like design for quick opening and closing of lids
Zipper lid can be lengthened and shortened at any chain link
Small pitch for smooth running
High accelerations: 100 m/s² and more

Up to 4 years guarantee: Guaranteed service life this series according to the guarantee conditions. Further information: Guarantee for energy chains

Certificates and standards

When to use it?

If fast, zipper-like accessibility to
_x000D_ cables is required
If quiet operation is required
If aesthetic design is required
If excellent service life is required

When not to use it?

If a more cost-effective, openable solution is required
_x000D_ Series B07 E2 micro
For filling without opening lids
_x000D_ Series E06 easy chain®
When an enclosed tube system is required
_x000D_ Series R07
