Series 14240 ESD

1 of 4

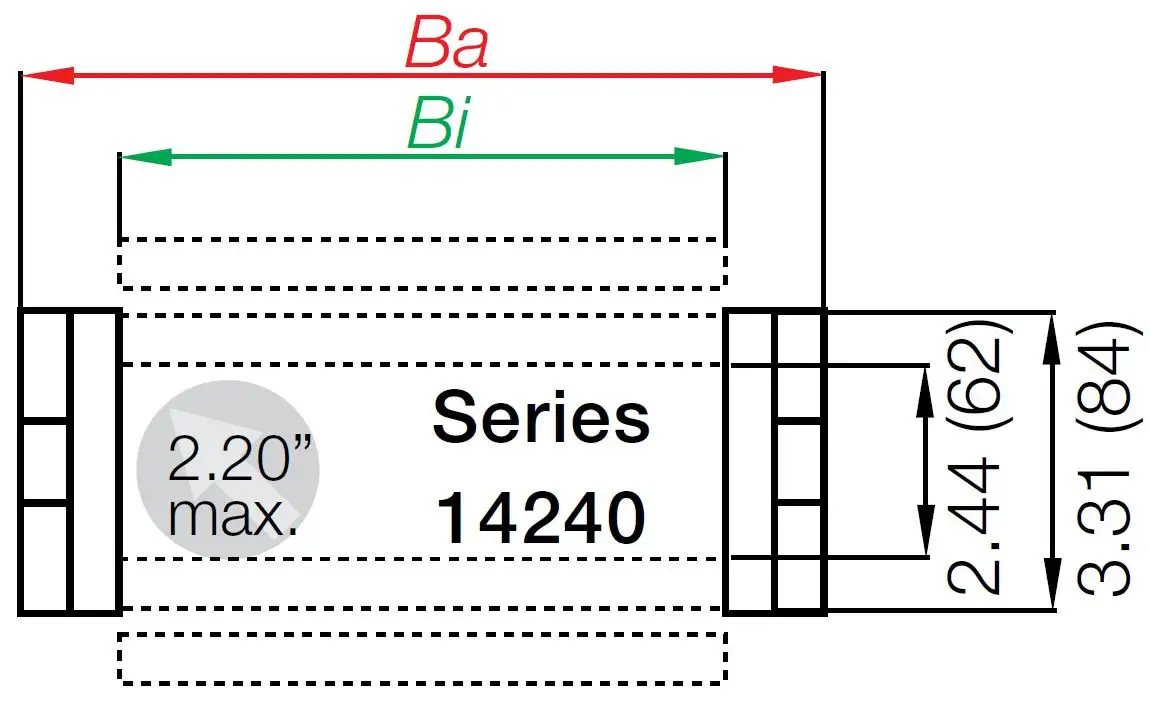

Inner height hi: 62mm
Inner width Bi: 50 - 200mm
Bend radii R: 150 - 250mm
Pitch: 91mm
For permanent, maintenance-free conductivity
New design with undercut design provides more stability
Closed and open types can be combined

Item no.

14240-05-150-0-ESD

Inner width [Bi] [in]

1.97 (50 mm)

Bend radius [R] [in]

5.91 (150 mm)

The 14240 ESD series can be opened along the inner and outer radius. Weight reduction, a larger interior space and a reduced price. The characteristics of the E4/light system:

For permanent, maintenance-free conductivity
New design with undercut design provides more stability
Closed and open types can be combined

Up to 4 years guarantee: Guaranteed service life this series according to the guarantee conditions. Further information: Guarantee for energy chains

Certificates and standards

When to use it?

If a simpler low-cost solution is
_x000D_ required
If optimized interior space is
_x000D_ required
If the Series 400 is too large

When not to use it?

If a quiet model is required
_x000D_ Series E4.56
_x000D_
_x000D_ If large unsupported lengths are required_x000D_ for side-mounted uses
_x000D_ Series E4.56
_x000D_
_x000D_ When greater inner height is required
_x000D_ Series 15050_x000D_
