Series E4.162

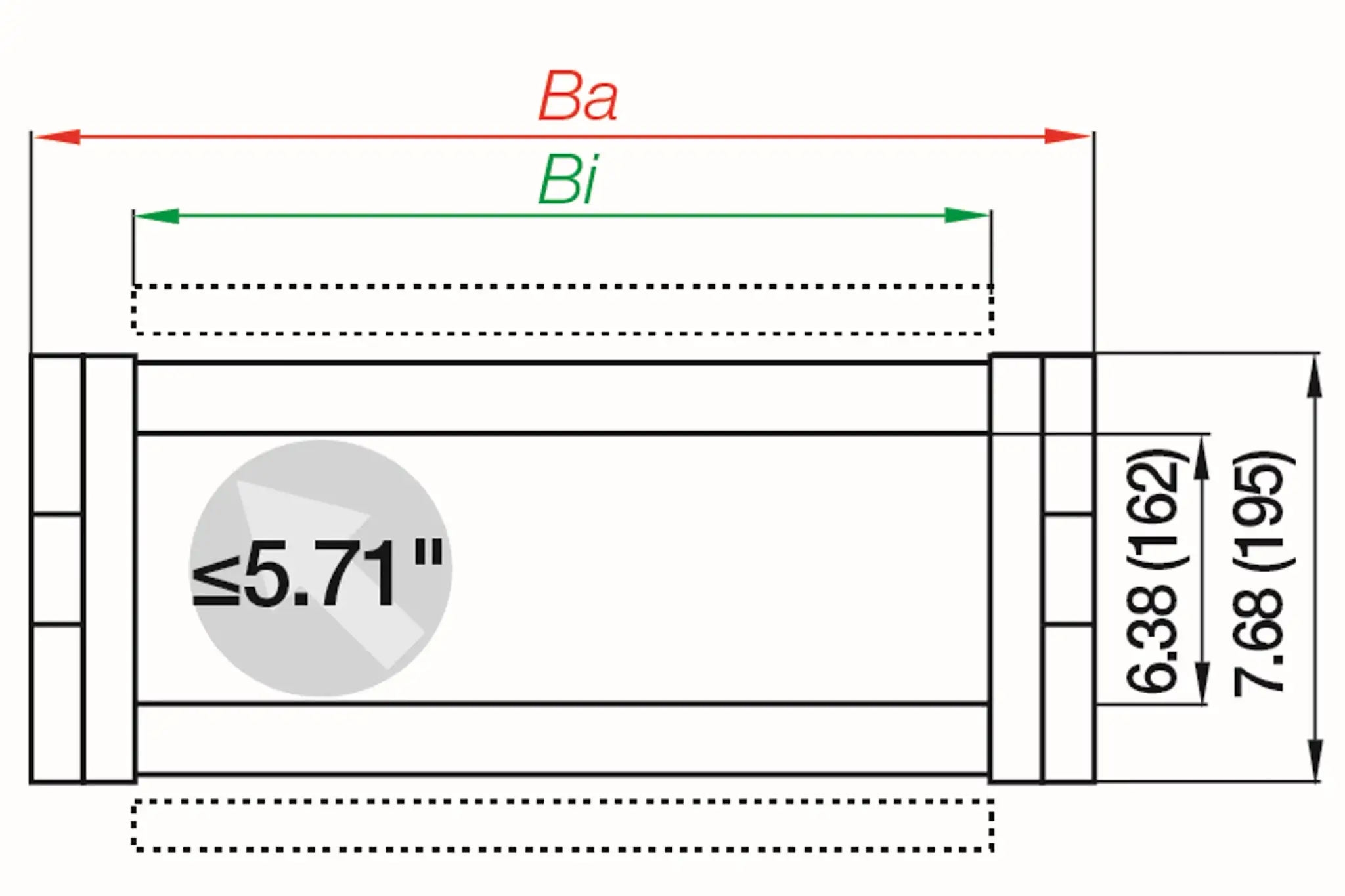

E4.162.20.250.0 technical drawing

E4.162.20.250.0 technical drawing

E4.162.20.250.0 technical drawing

E4.162.20.250.0 technical drawing

E4.162.20.250.0 video

1 of 6

Inner height hi: 162mm
Inner width Bi: 200 - 600mm
Bend radii R: 250 - 1000mm
Pitch: 200mm
For almost any application
Openable along the inner and outer radius
Strong and low-noise operation
Smooth, cable-friendly inner surfaces

Item no.

E4-162-20-250-0

Inner width [Bi] [in]

7.87 (200 mm)

Bend radius [R] [in]

9.84 (250 mm)

The E4.1 system combines all the advantages of its three predecessors. Series E4.1 is stronger whilst having the same or even smaller dimensions than previous versions. Almost all accessories and mounting dimensions are identical. You can increase the service life of your application with the igus® system E4.1 whilst reducing cost.

For almost any application
Strong: crossbars with double locking
Noise-reducing brake and optional noise dampers
High push/pull strength for long travels and large unsupported lengths
Smooth, cable-friendly inner surfaces

Certificates and standards

When to use it?

When a robust e-chain® with 162mm inner height is required
If an inner width up to 600mm is required
For unsupported lengths up to 6.75m and fill weights up to 90kg/m
For travel lengths up to 450m
For very long unsupported lengths and fill weights
Also suitable for side-mounted, standing and hanging applications
Many modular options and accessories available

When not to use it?

When an e-chain® for tough environments with an even greater inner height is required: 800 series
When a lightweight version is required: 1640 series

Unsure whether it fits?

Up to 4 years guarantee

Up to 4 years guarantee

We offer a guarantee of up to four years on energy chains.
