Series E61.52

<p>e-chain E61.52<br></p>

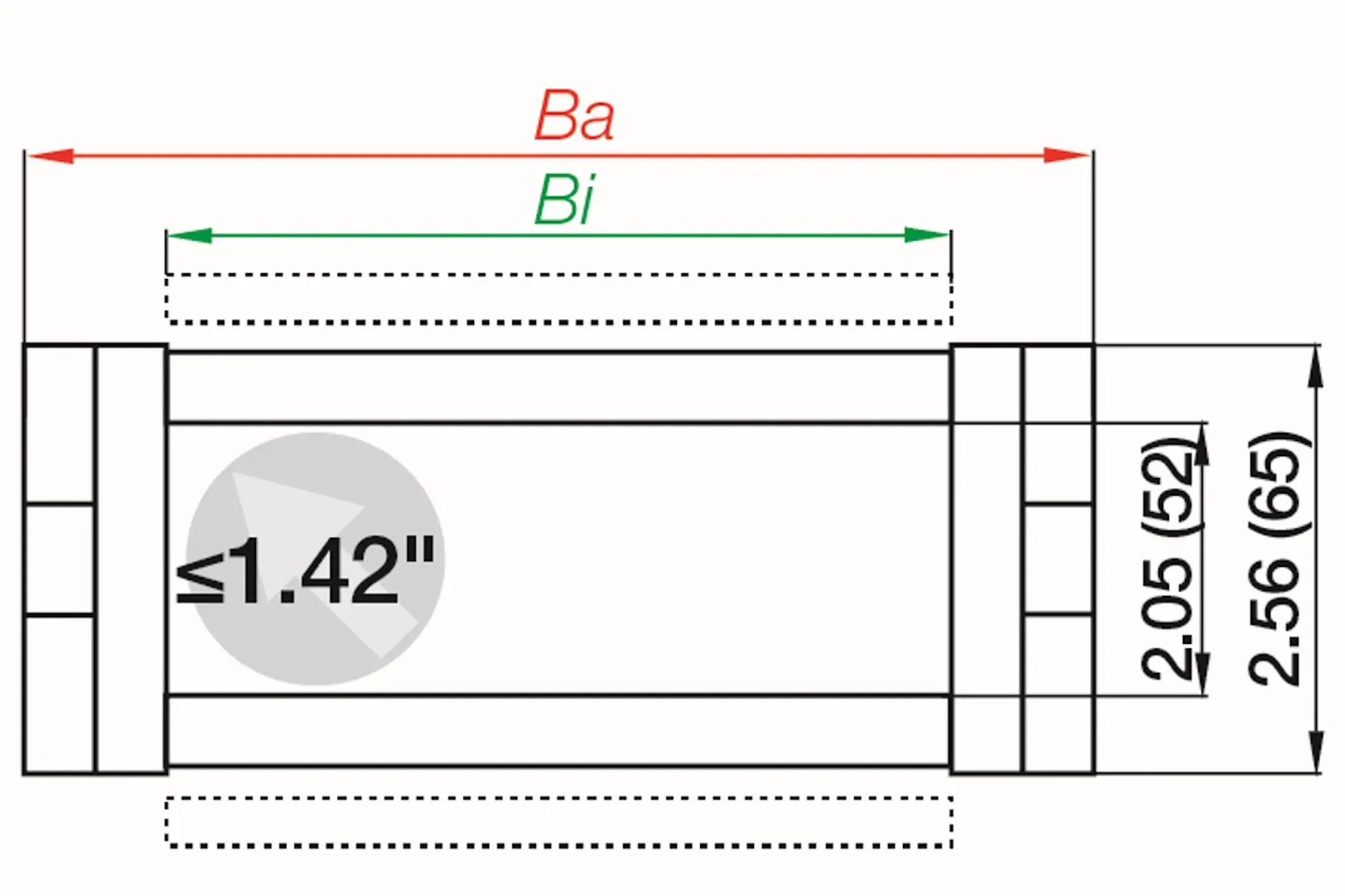

E61.52.040.100.0 technical drawing

E61.52.040.100.0 technical drawing

E61.52.040.100.0 technical drawing

1 of 4

<p>e-chain E61.52<br></p>

Inner height hi: 52mm
Inner width Bi: 40 - 300mm
Bend radii R: 75 - 200mm
Pitch: 30mm
IPA cleanroom Class 1, cleanroom-compatible due to principle of low-abrasion for connectors, without pin and bore connection
Highly dynamic
Extremely low vibration

Item no.

E61-52-040-100-0

Inner width [Bi] [in]

1.57 (40 mm)

Bend radius [R] [in]

3.94 (100 mm)

Cleanroom-compatibility and low weight in addition to even quieter operation at higher maximum speeds. The characteristics of the E6.1 system:

Quiet - from a noise level of 32dB(A)
IPA cleanroom Class 1, cleanroom-compatible due to principle of low-abrasion for connectors, without pin and bore connection
Highly dynamic
Extremely low vibration
Attachment from any side with KMA mounting brackets

Virtually no polygon effect, smooth rolling operation
Smooth interior design for a long lifetime for cables and hoses
Crossbars openable along the inner and outer radius, from both sides

Certificates and standards

When to use it?

When you need an extremely quiet, low-vibration e-chain® at 52 mm inner height
For high speeds and/or accelerations
Inner widths up to 300 mm
For unsupported lengths up to 1,5 m and fill weights up to 11 kg/m
When you need an optimised ratio of inner to outer dimensions due to thinner outer links and optimised opening crossbar geometry
For high push-pull forces
For small bending radii
For minimum abrasion, e.g. in cleanrooms

When not to use it?

With only limited suitability in applications with 90° rotation
