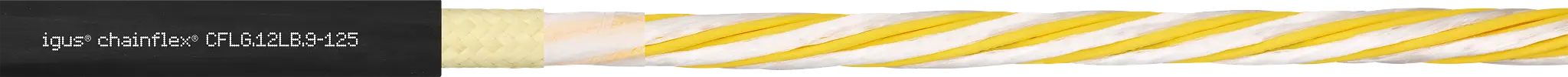

chainflex® fiber optic cable CFLG-LB

New

1 of 2

Guarantee up to 4 years

Item no.

CFLB-2LB-9/125

Number of fibres/Fibre diameter/Conductor nominal cross section

2x9/125

Outer diameter (d) max. [in]

Typical application areas

For heaviest duty applications with 5 - 7.5 x d
Maximum EMC protection, with high transmission qualities
Almost unlimited resistance to oil, also with bio-oils
Indoor and outdoor applications
Unsupported travel distances and up to 150 m for gliding applications (horizontal + vertical)
Cranes, material handling, storage and retrieval equipment, machining units/packaging machines, quick handling, semiconductor insertion, refrigeration sector

Guaranteed service life for this series according to guarantee conditions
Further information: chainflex® guarantee

Double strokes*	5 million		7.5 million		10 million
Temperature,	CFLG.LB	CFLG.LB.CU	CFLG.LB	CFLG.LB.CU	CFLG.LB	CFLG.LB.CU
from/to [°C]	R min.[Factor x d]	R min. [Factor x d]	R min.[Factor x d]	R min. [Factor x d]	R min.[Factor x d]	R min. [Factor x d]
-35 / -25	7.5	10	8.5	11	9.5	12
-25 / +70	5	7.5	6	8.5	7	9.5
+70 / +80	7.5	10	8.5	11	9.5	12
