drylin® T – adjustable clearance
Ordering a complete system
Note:
You can find detailed information in the drawings below and also on the pages listed below. You can find more precise information on the floating bearing types within the construction rules.

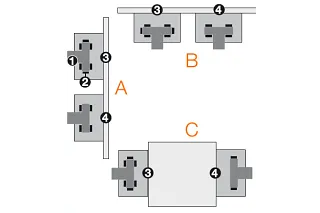

**A:**Version with floating bearing in z-direction
**B:**Horizontal version with floating bearing in z-direction
**C:**Horizontal version with guide carriages at the sideand floating bearing in the y-direction
Dimensions and technical data
Guide rails
Part No.
Weight
[kg/m]
L
max.
a
-0,2
C4
C5
min.
C5
max.
C6
min.
C6
max.
h
h1
K1 for screw
DIN 912
b
ly
[mm4]
lz
[mm4]
Wby
[mm4]
Wbz
[mm4]
TS-01-15
0,6
4.000
15
60
20
49,5
20
49,5
15,5
10
M4
22
6.440
4.290
585
488
TS-01-20
1
4.000
20
60
20
49,5
20
49,5
19
12,3
M5
31
22.570
11.520
1.456
1.067
TS-11-20
4.000
20
120
20
79,5
20
79,5
19
12,3
M5
31
12.140
6.360
780
620
TS-01-25
4.000
23
60
20
49,5
20
49,5
21,5
13,8
M6
34
34.700
19.300
2.041
1.608
TS-01-30
4.000
28
80
20
59,5
20
59,5
26
15,8
M8
40
70.040
40.780
3.502
2.832
Standard hole pattern symmetrical C5: C6
Guide carriages
Part No.
Weight
[kg]
H
±0,35
A
C
A1
±0,35
A2
C1
C2
C3
H1
±0,35
H5
K2 thread
Tightening torque
max.
[Nm]
K3 for screw
DIN 912
TW-01-15
0,11
24
47
74
16,0
38
50
30
9
4,0
16,0
M5
1,5
M4
TW-01-20
0,19
30
63
87
21,5
53
61
40
10
5,0
19,8
M6
2,5
M5
TW-01-25
0,29
36
70
96
23,5
57
68
45
11
5,0
24,8
M8
6,0
M6
TW-01-30
0,50
42
90
109
31,0
72
79
52
12
6,5
27,0
M10
15,0
M8
