igus® System triflex® R light - motion control in all axis

Simple opening and closing by hand or with screw driver. Secure, shape-locked connections between the curved opening crossbar and the structural element. For easy filling of cables and hoses even with large diameters!

TRLF.-65 on the igus® test robot - field-based test setups provide a maximum of product reliability.

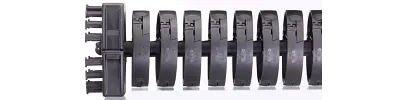

triflex® R TRLF - light version - easy to open by hand or with screwdriver

Series TRL is 50 % lighter and 58 % more affordable than the comparable TRE version. Save twice on weight and price .

igus® TRLF on Fanuc test cell application - axis 2-3

TRL in a machine tool - quick filling - and cost-effective.

Easy assembly/disassembly
Because of its modular design, the triflex® R can be extended and shortened on-demand. This provides maximum flexibility for any installation.

Assembly example
No cutting of steel ropes, springs, or the like. An injection moulded part, therefore extended and shortened "on demand".

Handling robot
As is the case on conventional igus® e-chains®, triflex® R e-chains® can be extended/shortened at "any" location

TRL + TRLF has a 3 house system. This allows an ideal separation of cables, air hoses and more

Easy filling and exchange of pre-harnessed cables or media hoses.

For thick, rigid hoses and/or many cables

Each cavity can be opened independently of the other. This greatly simplifies filling with cables and hoses.

Test: spin test
The impact-resistance of a triflex® R filled with cables is tested in spin tests

3D plasma cutter
In addition to igus® triflex® TRE, other e-chains® (E2/000, E4-1) and drylin® linear guides (drylin® W) are installed in this plasma cutter.

Modular accessories
Mounting brackets with strain relief tiewrap plates are available for easy assembly. This allows cables and hoses to be quickly and conveniently strain relieved with cable tie wraps.

Test: Tensile test
Tensile strength testing on igus® tiewrap plates with cable tie

Handling robot
Reliably strain relieved, and optimally mounted on the robot due to the extension link.

Accessories
By using the light mounting bracket as an extension link, TRL and TRLF can be secured/strain relieved at any location. "light AE" for TRL and TRLF - easily and cost-effectively opened with a screwdriver.

Retention strength of the extension link

Robots
Reliably strain relieved, and optimally mounted on the robot due to the extension link.

Online Tool

QuickRobot is a configuration tool for robot energy supply systems. With only a few clicks, the matching configuration can be selected for 79 robot models.

Robot configuration tool

Selection of robot types according to manufacturer and the required chain sizes according to diameter

• Optional articles can be selected
• Parts lists are created in PDF format
• Equipment option per axis can be conveniently ordered with one article number.

Customized ordering

Ordering directly online or with the parts list.

CF.Robot

Approximately 100 different CFRobot cables are available from stock without cutting charges and minimum quantities. We also supply fully harnessed with connectors, or as a complete, ready to install readychain® system.

Cable testing

All chainflex® ROBOT cables in triflex® R energy supply system are twisted at least 3 million times with a fixed point clearance of 1 m and a torsion of ±180°.

Complete and reliable.

Highly flexible Trflex® R robot e-chain® and the matching, long-lasting chainflex® CF.Robot torsion cables
