Drive tech cable

New chainflex® hybrid cable

Suitable for Siemens drives S210

Product portfolio addition to the CF280.UL.H cable series

With the new hybrid cable CF280.UL.H304 in the cross sections (4G1.5+(2x1.5)C+(4xAWG26)C)C and (4G2.5+(2x1.5)C+(4xAWG26)C)C you get the precise main cross sections for your Siemens drives that you need. It is suitable for applications up to a bend radius of 10xd across all industrial sectors from the machine tool and automotive industry up to intralogistics. Short harnessing and assembly times, long service life, low maintenance, cost savings and simple handling - these are the hallmarks of our hybrid cable.

With 26 different types of hybrid cables already, igus® has the largest portfolio of hybrid cables in energy chains. igus is proud to expand our catalog to include this new hybrid cable, with all its advantages (4 year guarantee, no minimum order quantity, no cutting charge and numerous approvals & standards). With the new CF280.UL.H304 chainflex hybrid cable, users with Siemens motors can now source yet more drive cables for use in the energy chain.

What should I pay attention to with hybrid cables for e-chain?

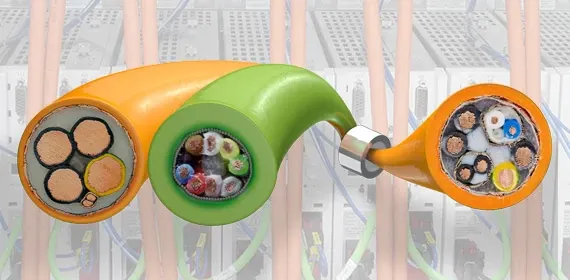

hybrid cable

When combining the servo and encoder cables into one hybrid cable , it is important to ensure the necessary data transfer specifications and interference-free operation of the cable for many millions of cycles. A secure transmission of the bus signals to maximum cable length with many motion cycles in the energy chain, poses special requirements for the structure of the bus cores.

Buy hybrid cables now

Tech up

10 million double strokes in e-chains® guaranteed
Range of products in stock enables individual choice for the customer
Reliably design cable service life online

Cost down

50% reduction in cabling thanks to advanced hybrid technology
Installation space needed in the e-chain is reduced by up to 40%
36-month undefined

Proof

Tested in the undefined (3,800m²), the largest laboratory of its kind for cables in moving applications
Tests on a drilling machine under IMA company customer conditions

Sustainability

Lower weight means reduced energy requirements for movement
Clear statement regarding the service life increases machine availability

Hybrid cable successfully in use

IMA company

tested ... proven ... guaranteed!

The application at IMA Klessmann shows that the hybrid cables from igus work well, shorten installation time and save costs. Up to fifty servo axes in a confined space, high dynamics, high expectations in terms of service life and small bend radii are the demands that hybrid cables must meet in a new drilling machine.

IMAGIC flex drilling systems

Up to 4 year guarantee

chainflex guarantee

Up to 4 years guaranteed service life on our cables with confidence due to over 30 years of testing in our 3,800 m² test laboratory.

Ready-to-connect cables

readycable portfolio

Offering around 4,600 harnessed motor, servo, signal and encoder cables,igus offers the most cost-effective drive cable that works.
