chainflex® news

… for a PTFE-free energy supply system in a cleanroom
For maximum confidence when selecting cables for cleanroom applications, a range of CFCLEAN cables is available. They have been specially developed for use in the e-skin flat, ensure minimal particle emissions and stand out thanks to their space-saving design, quick assembly and easy cable replacement.

The new CFCLEAN.EVO series offers a PTFE-free solution. This is made possible by a special outer jacket with high abrasion resistance, which ensures a long service life and low particle emissions. Furthermore, the series covers all standard core cross-section combinations used in the industry for data, bus, control and motor cables.

… for high currents up to 10m.

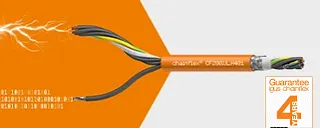

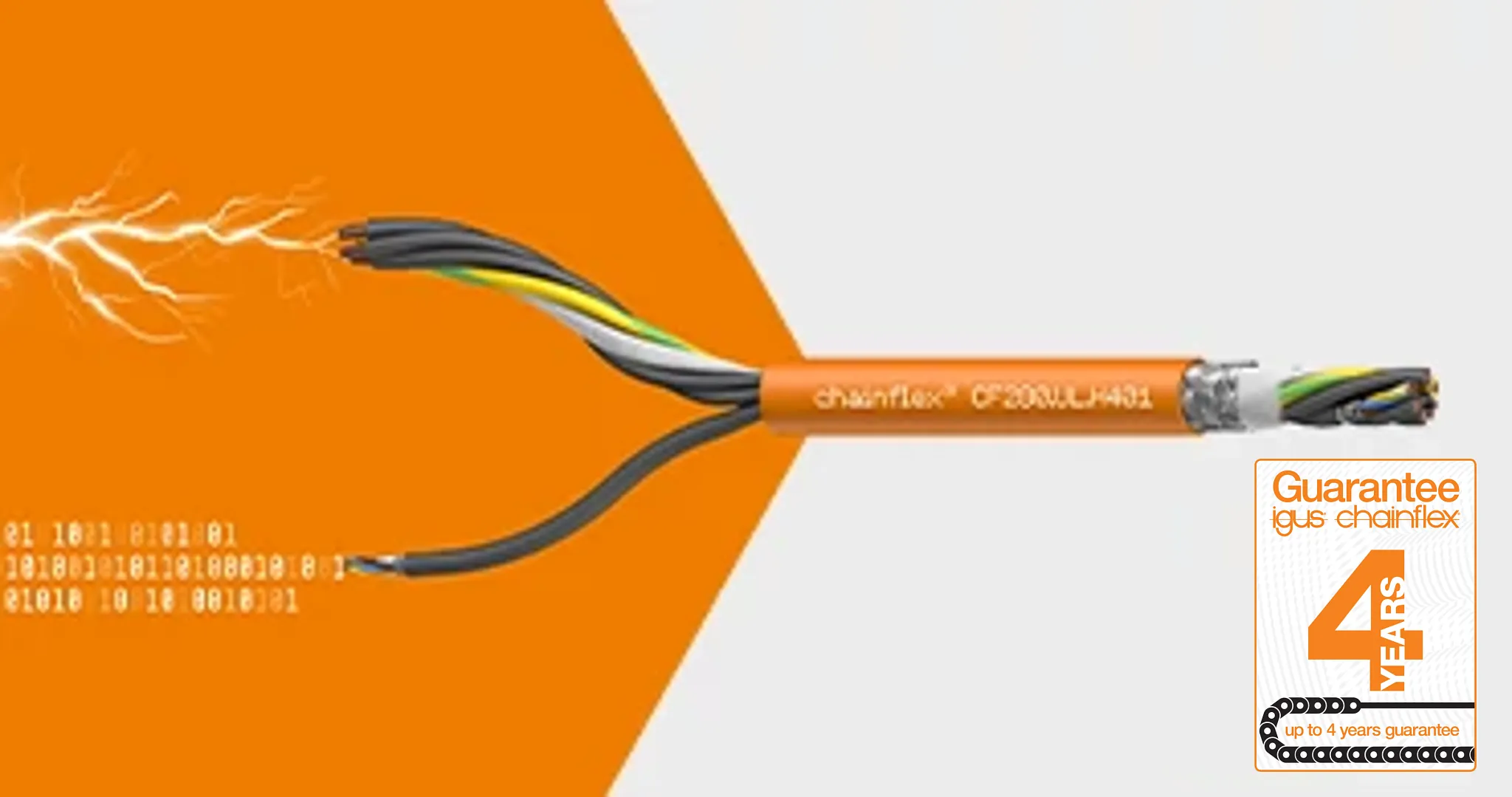

Expansion of the CF280.UL.H hybrid cable series range: three new cross sections, suitable for SEW drives, have been added to the existing range. Thanks to the larger conductor cross sections, this new product offers a space-saving single-cable solution for energy chain applications and enables the reliable transmission of high currents over distances of up to 10 meters. Furthermore, the required installation space can be reduced by up to 40 percent compared with conventional solutions.

... with a 25 percent longer service life

The new CAT6A bus cable CFBUS.LB.050, with a bend radius of 7.5 x d, offers maximum precision, short cycle times, and quick handling in confined spaces. A bus cable designed for the most demanding applications and of proven quality.

… ground conductor in pink in accordance with DIN EN IEC 60445
Ground conductor, 10mm², designed to ensure the correct functioning of a system, with a pink PUR outer jacket in accordance with DIN EN IEC 60445. It impresses with its high number of cycles, long travels and small bend radii of up to 10 x d in energy chains.

... with 360°/m torsion.
Portfolio expansion of the CFROBOT8.PLUS cable series to include a cable for the DeviceNet bus system. And all this for applications with +/- 360° torsion with a reduction of the outer diameter by 21%.

... for the highest demands
Expansion of the CF99.PLUS high-end control cable series to include a shielded version with a cross section of (8x0.25)C. It has been developed for the highest demands and can realise a bending factor of up to 3xd.

... suitable for Lenze and ctrlX DRIVE.
Extensions in the area of hybrid cables with the CF280.UL.H403.15.04.D suitable for ctrlX Drive drives and the measuring system cables with the CF111.033.D. suitable for use on Lenze drives. Both cables can withstand the influence of oil without any problems.

... with great variety for small installation space.
Expansion of the product portfolio to include motor cables with a cross section of 4G1.0. Available in shielded and unshielded versions and with cost-effective PVC outer jackets and high-end TPE outer jackets.

... 12.5 million double strokes guaranteed.
Due to the listing of SVHC substances (in the REACH regulation) in flame-retardant TPE materials, we offer various halogen-free alternatives. This includes a new PE cable series CFPE.ZH with a halogen-free TPE outer jacket with 11 core cross section combinations and a travel of up to 400 meters.

... fail-safe, cost-effective and unobtrusive.
New cable series especially for the theatre industry. With three bus cables electrically matched to the requirements of stage technology and with a visually unobtrusive jacket color.

... suitable for Lenze in dry applications
Product extension of the CF884 measuring system cable with the cost-effective PVC outer jacket material suitable for Lenze. The CF884.032 is optimised and tested for use in dry environments.

... resistant thanks to TPE outer jacket
The CF38 high-end motor cable series saves installation space and can withstand low temperatures down to -35°C at the same time. With the new cross sections, we are expanding the CF38 family and at the same time replacing the discontinued models of the CF35.UL.

... thanks to TPE high-end single-core cable
Thanks to their robust TPE outer jacket, the new cross sections of the CF340 single-core family are ideal for small installation spaces in the energy chain and a long travel of up to 400 meters.

... for the dry cleanroom and maritime applications

Future-proof solutions thanks to IPA certifications from the Fraunhofer Institute in ISO Classes 4 and 5 as well as over 350 DNV-certified cables for use in offshore and onshore systems.

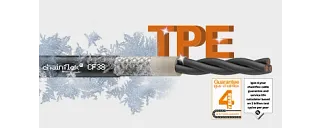

... resistant thanks to the TPE outer jacket
With the high-end motor cable series CF38, installation space can be saved and at the same time low temperatures down to -35°C can be withstood. With the new cross sections, we are expanding the CF38 family and at the same time replacing the discontinued models of the CF35.UL.

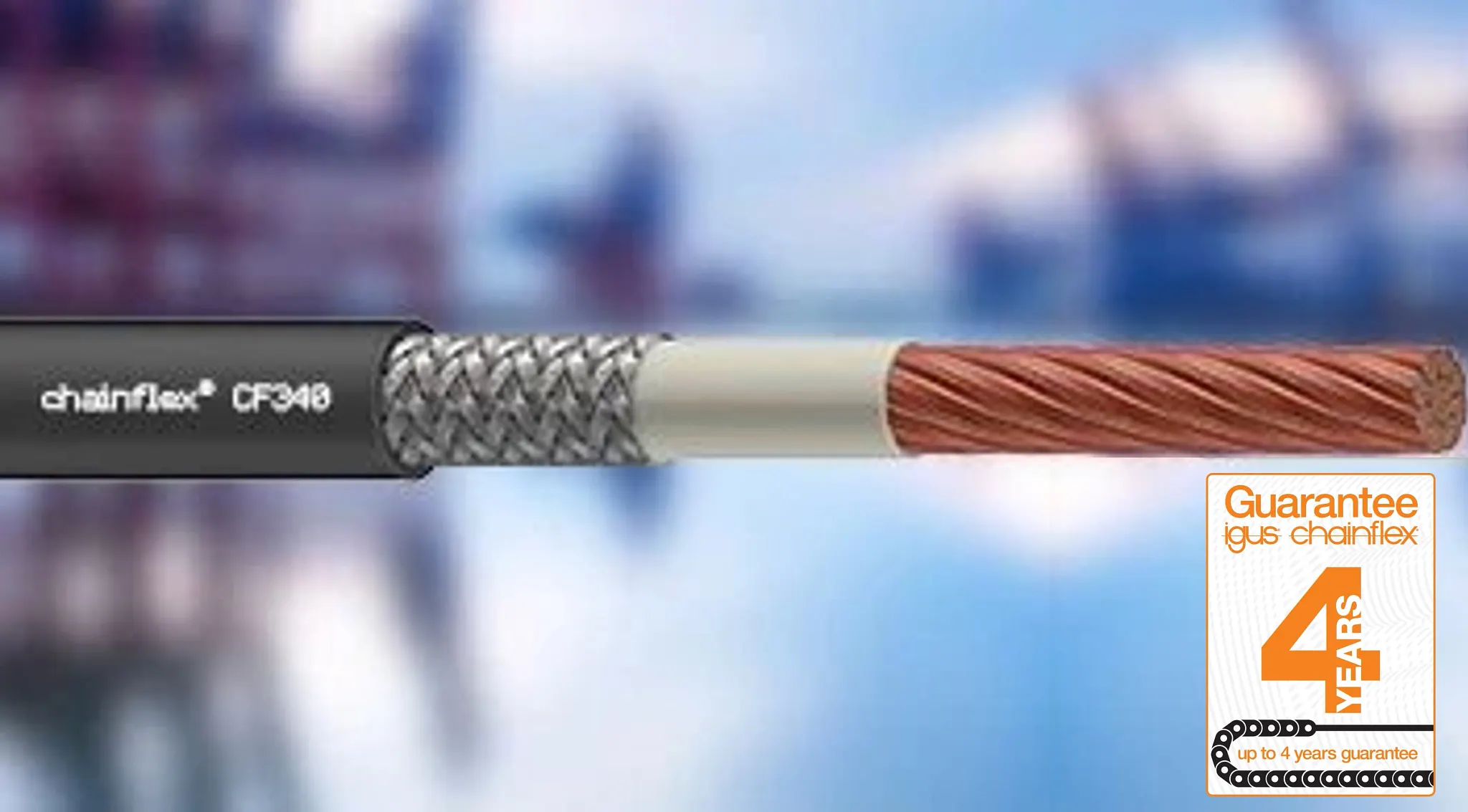

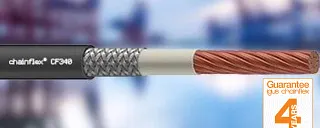

... thanks to TPE high-end single-core cable
The new CF340.100.01 is an addition to the CF340 single-core family and, thanks to the robust TPE outer jacket, is ideal for small installation spaces in the energy chain and long travels.

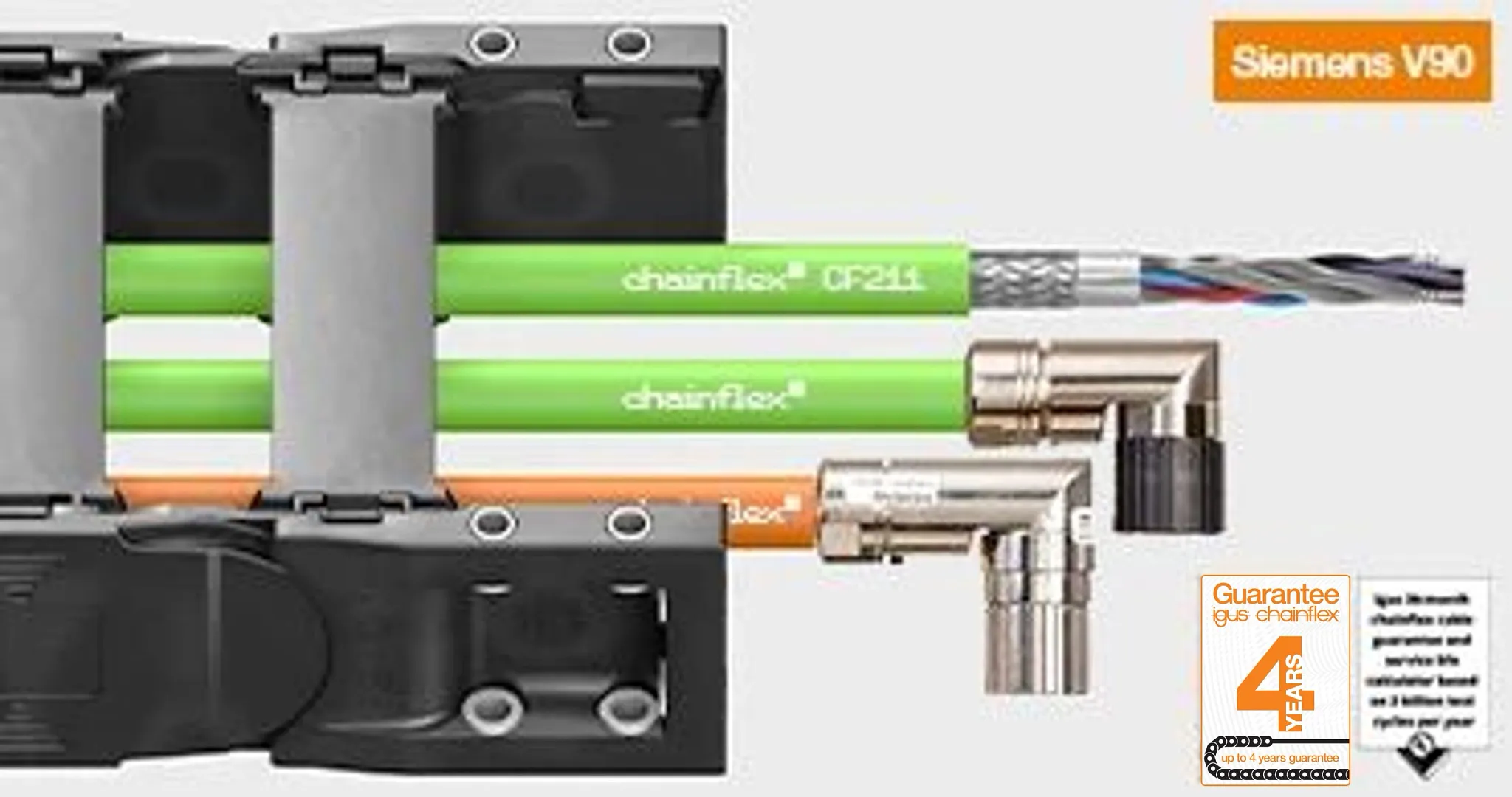

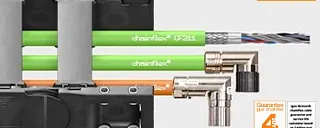

... specifically developed for dry environments
The CF211 encoder cable series has been expanded for the SINAMICS V90 drive system. Robustness for dry environments is guaranteed thanks to the PVC jacket. The new chainflex CF211.030 is available from stock sold by the metre or harnessed ready for connection.

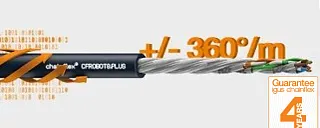

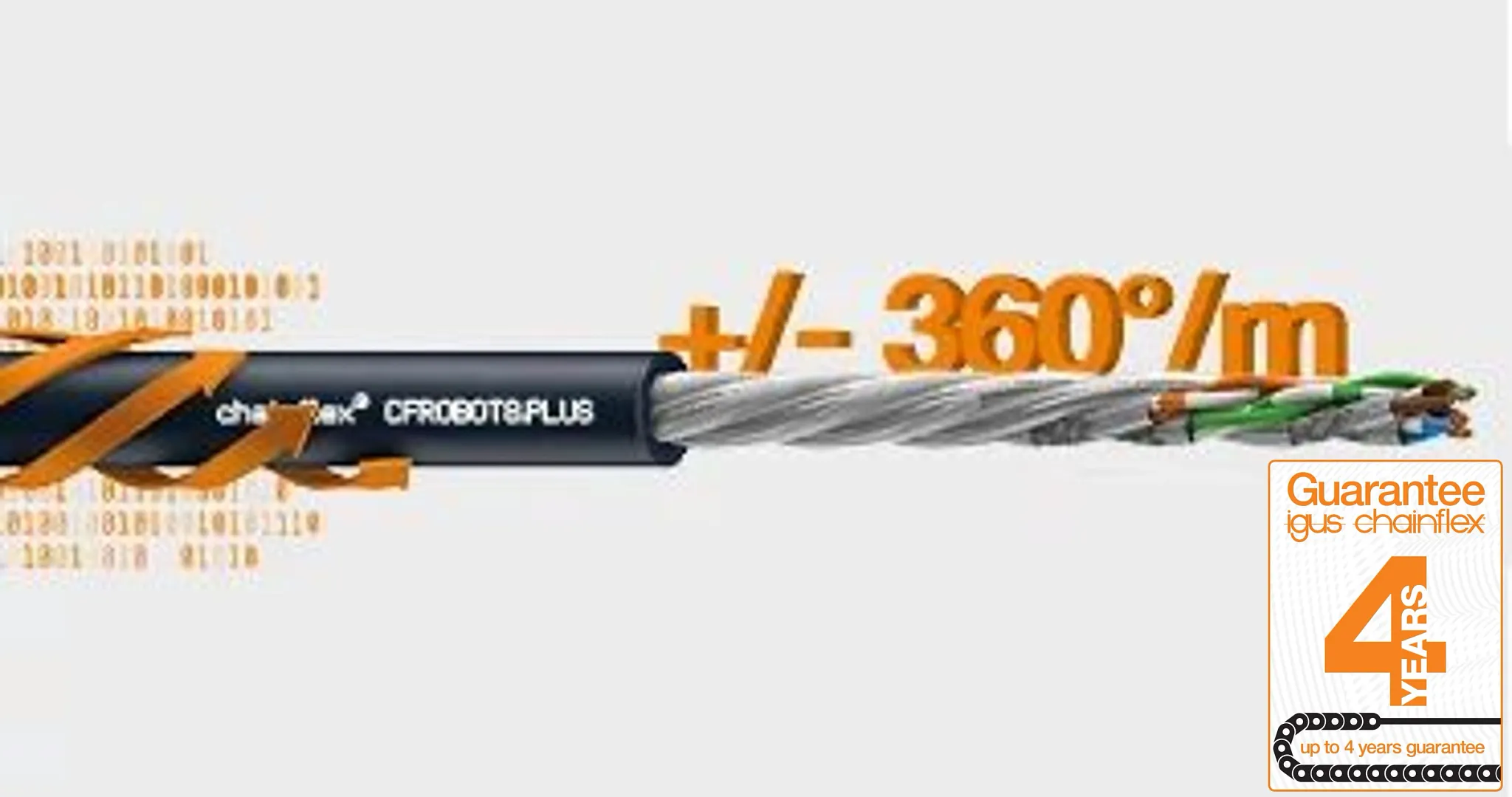

... for CAN bus and Ethernet up to CAT7
The service life of the CFROBOT8.PLUS has been increased by the larger torsion angle of up to +/- 360°/m and solves problems in tight installation spaces.

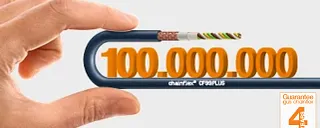

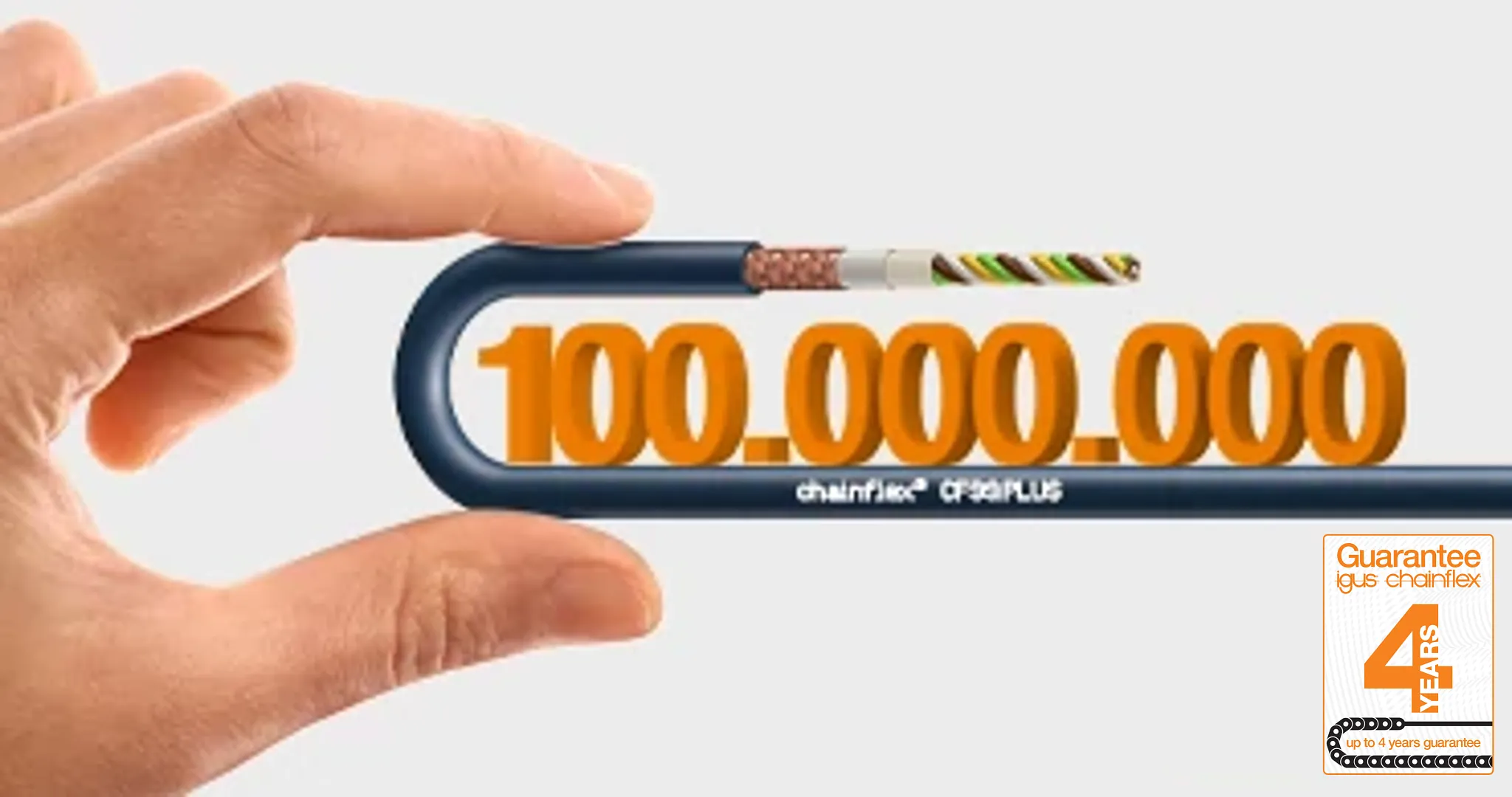

... CF98.PLUS and CF99.PLUS guaranteed with 100,000,000 double strokes
The new CF98.PLUS and CF99.PLUS control cables achieve the longest durability with 100,000,000 double strokes or a bending factor of 3xd.

... extended for the ctrlX DRIVE system from Bosch Rexroth
Suitable for drives of the MS2N series from Bosch Rexroth, you reduce costs by 50% and receive the usual service life guarantee.

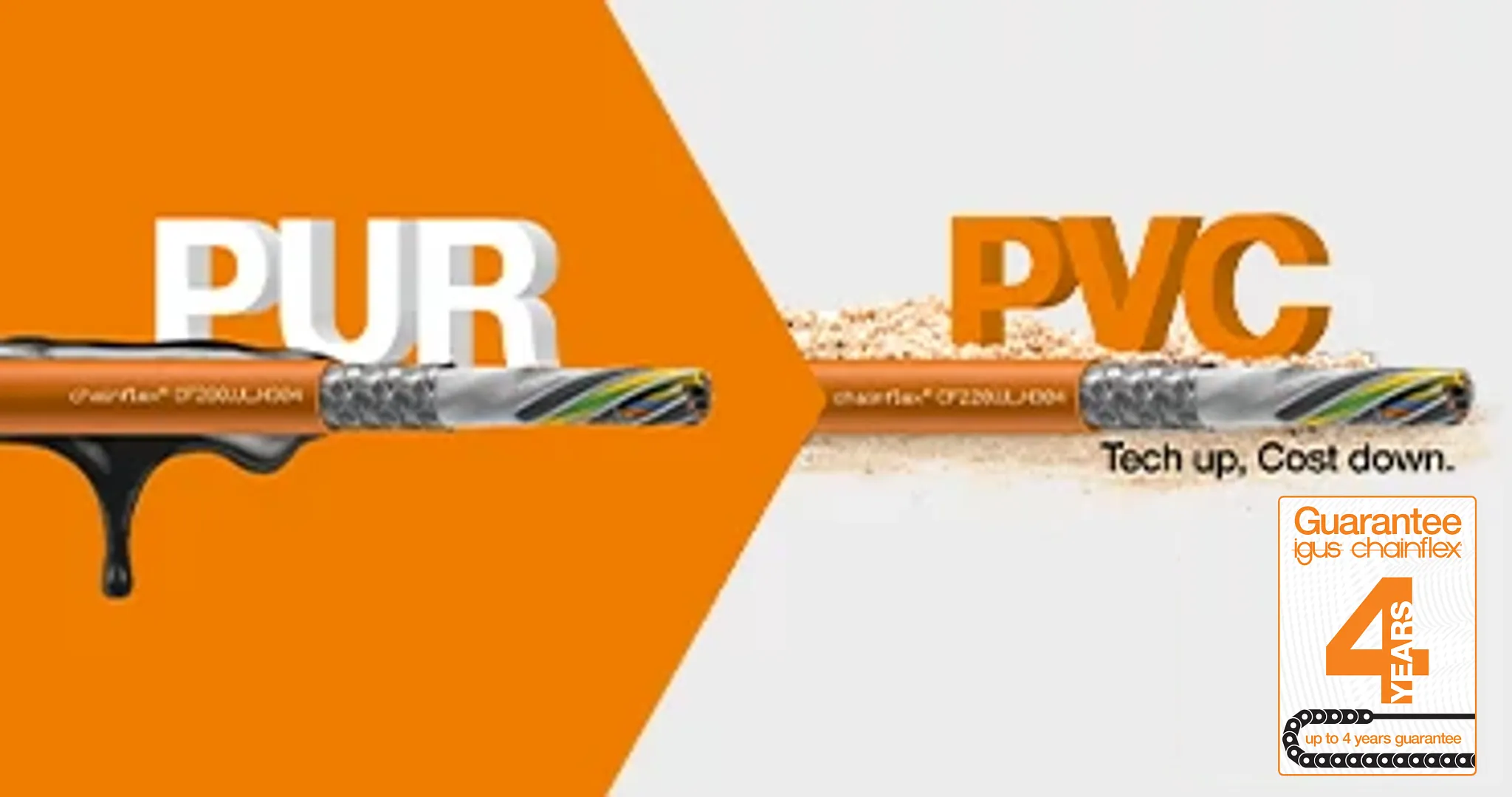

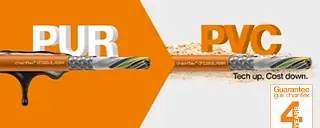

... for SINAMICS 210 drives ...
With the new PVC hybrid cable, we are adding to the CF220.UL.H cable series and thus offer even more variety. Thanks to the high-quality PVC outer jacket, you can save 15.3% of costs.

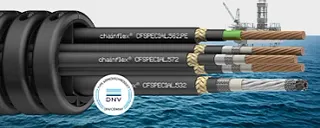

... now with DNV approval
With the new DNV approval, the CFSPECIAL.5XX series is the perfect solution for offshore drill rig applications.
