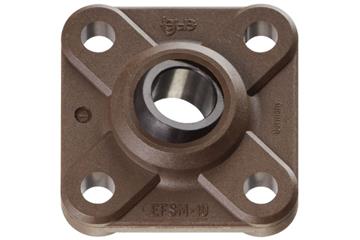

Flange bearings with 4 mounting holes, EFSM, igubal®, spherical ball iglide® J4V

  • Dimensional series E following DIN ISO 12240
  • Housing material: igumid G
  • Spherical ball made of iglide® J4V
  • Easy installation
  • Compensation of misalignment errors
  • Absolutely corrosion-resistant
  • Very lightweight
  • Maintenance-free dry operation
  • Time saving through fast assembly

Unsure whether it fits?

Product description
igubal® flange bearings

igubal® flange bearings have been developed for supporting the centre or ends of shafts.

The housing is made from igumid G, an extremely impact-resistant, long-fiber-reinforced polymer. Suitable for temperatures from -30 °C to +80 °C in long-term use.

Here, the spherical ball is made from iglide® J4 material, which is known for its low costs and low coefficients of friction during dry operation. The special shape of the spherical ball pre-loads suitable shafts completely when they are in an unloaded state, ensuring that it is completely clearance-free.
  • Easy installation
  • Compensation of misalignment errors
  • Absolutely corrosion-resistant
  • Very lightweight
  • Maintenance-free dry operation

Typical application areas
  • Plant construction
  • Automation
  • Agricultural machines
  • Mechanical engineering
  • Food industry

    You will find plenty of additional application areas at our Browse all Industries

When to use it?
  • If chemical resistance is required
  • If a cost-effective option is required
  • If you need dirt-resistant bearings
  • To adjust misalignments
When not to use it?
  • If temperatures are higher than +80 °C
  • If an integrated adjusting ring is required
  • If diameters above 30 mm are required
  • If rotation speeds higher than 0.5 m/s are required
Use our filter options to find the suitable product
Application areas

Since igubal® flange bearings are designed for maintenance-free dry operation, they are especially suitable for applications in which access to the bearing is limited, in moist or wet environments or clean room environments. As a result, igubal® flange bearings are used for instance in wash-brush controls, in facade sunscreen systems, in material handling technology and in bakery equipment.

Assembly

The 2-hole igubal® flange bearings are provided with elongated holes that facilitate a trouble-free readjustment. A precise alignment of the bearing housing is not required as the flange bearing automatically compensates for error. Special adjusting rings can be used to fix the shaft.
