Scara Robot Cable Management: Flexible & Made from Durable Polymers
Corrugated tube dynamically reinforced on the SCARA robot
High-speed applications, such as SCARA robots, can cause unsupported corrugated tubes to whip from side to side while the robot is in motion. Help stabilize them with e-rib, which is a highly engineered plastic “rib” that fills the joints of your existing corrugated tubes. It easily clips on and off and can be paired with mounting brackets for reinforcement at each end. We offer e-rib in a nominal width of 29mm with additional sizes coming soon. The sizes are independent of the corrugated tubing manufacturer. Please note that current lead time is 2-4 weeks.
David Sandiland presents the Scara cable solution
- The energy supply for Scara robots
- Individually adaptable for different Scara models
- Includes the energy supply system from axis 1 to the ball screw
- Currently the nominal width of the Scara cable solution (inside) is available with 29mm
- Nominal widths 23mm and 36mm are being planned
- Spare parts supply is guaranteed by the ordering of individual parts
What is behind the Scara cable solution?
- Modular system, easy to retrofit
- Can be delivered as harnessed system
- Custom design for easy adjustment to different SCARA types
- Safe guidance of cables and hoses
- Easy maintenance
- High running performance
- All components are individually replaceable
- Less downtime
- Since 2016, 50 EPSON SCARA robots have been in continuous operation at a German motor vehicle manufacturer
- From 20.08.2020 to 1.03.2021 , more than 2,500,000 test cycles were completed in the igus® test laboratory
- Have your e-rib recycled as
part of the igus Chainge recycling program at the end of its life cycle. Irrespective of the manufacturer. You will receive a voucher for: Chainge recycling program
The SCARA Cable Solution consists of three elements adapted to the SCARA robot

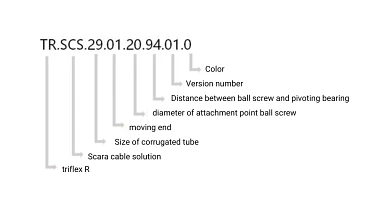

- Moving end attachment (straight): TR.SCS.29.01.20.94.01.0
- Moving end attachment (angled): TR.SCS.29.01.20.94.02.0

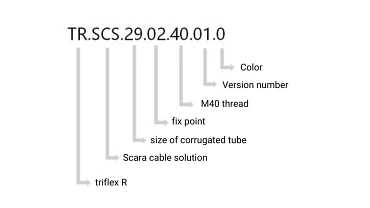

- Fixed end attachment: TR.SCS.29.02.40.01.0

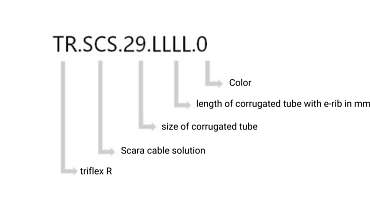

- Corrugated hose with e-rib: TR.SCS.29.LLLL.0
Example of the structure of part numbers: SCARA EPSON G6 553s

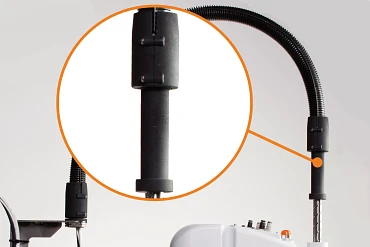

moving end

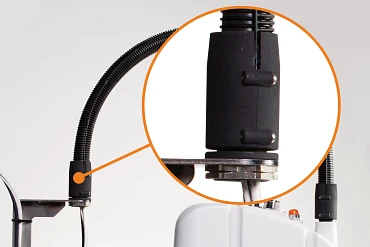

fixed end

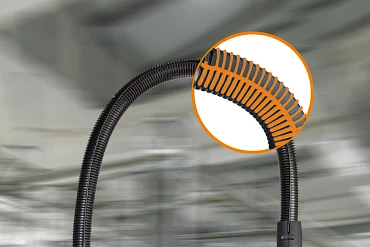

+ e-rib hose
Scara cable solutions questions and answers
- inner hose diameter of 29mm
- The e-rib gives the corrugated hose stability
- End connection reinforcement at both ends of the system
- Please contact us directly via the enquiry button
Request Scara cable solution as readychainFree samples and downloads
Discuss your project with a robot dresspack expert
Whether you're interested in end-to-end, fully assembled solutions or looking to build your own customizable project, let us assist you with a solution based on your specific application and requirements. Contact us via the form below or call us at (800) 521-2747 to discuss your project today!
