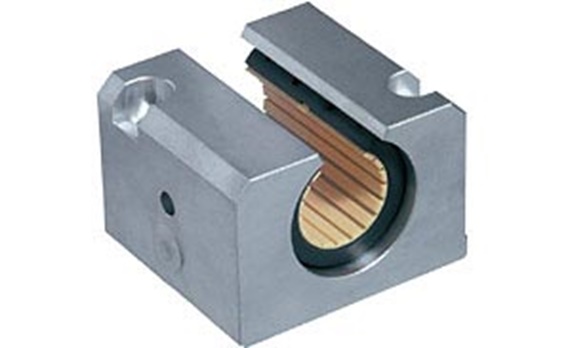

drylin® R - OGA - Linear housing, open, long design, mm

Special features

Housing: Aluminum

Equipped with drylin® R linear plain bearings, order number OJUM-01-ø or OJUM-03-ø

Combinable with drylin® R housing bearing, order number OJUM-06-ø

The bearings are secured in the housing using set screws

Recommended tolerance for the shaft: h6-h10



OGA - Linear housing, open, long design, mm

d [mm]:



Dimensions [mm]

OGA-01 Standard with OJUM-01
OGA-03

Adjustment of alignment with OJUM-03
Order no. d D H H1 H2 H3 H4 S1 B L M E1 E2 d1 d2 W
  [mm] [mm]
H6
[mm] [mm]
+0.01
-0.02
[mm] [mm] [mm] [mm] [mm]
+0.3
[mm]
±0.02
[mm]
±0.15
[mm]
±0.15
[mm] [mm] [mm] [mm]
+0.6

Ready to ship in 24 hours OGA-01-12 12 22 28 18 11 8 25 M 5 43 39 21.5 32 23 4.2 8 14 92.84 USD Add to shopping cart
Ready to ship in 24 hours OGA-01-16 16 26 35 22 13 12 30 M 6 53 43 26.5 40 26 5.2 10 17 95.33 USD Add to shopping cart
Ready to ship in 24 hours OGA-01-20 20 32 42 25 18 13 34 M 8 60 54 30 45 32 6.8 11 17 106.67 USD Add to shopping cart
Ready to ship in 24 hours OGA-01-25 25 40 51 30 22 15 40 M10 78 67 39 60 40 8.6 15 21 125.05 USD Add to shopping cart
Ready to ship in 24 hours OGA-01-30 30 47 60 35 22 16 48 M10 87 79 43.5 68 45 8.6 15 21 139.82 USD Add to shopping cart
Ready to ship in 24 hours OGA-01-40 40 62 77 45 26 20 60 M12 108 91 54 86 58 10.3 18 27 188.21 USD Add to shopping cart
Ready to ship in 24 hours OGA-03-12 12 22 28 18 11 8 25 M 5 43 39 21.5 32 23 4.2 8 14 92.84 USD Add to shopping cart
Ready to ship within 12 working days OGA-03-16 16 26 35 22 13 12 30 M 6 53 43 26.5 40 26 5.2 10 17 95.33 USD Add to shopping cart
Ready to ship in 24 hours OGA-03-20 20 32 42 25 18 13 34 M 8 60 54 30 45 32 6.8 11 17 106.67 USD Add to shopping cart
Ready to ship in 24 hours OGA-03-25 25 40 51 30 22 15 40 M10 78 67 39 60 40 8.6 15 21 125.05 USD Add to shopping cart
Ready to ship in 24 hours OGA-03-30 30 47 60 35 22 16 48 M10 87 79 43.5 68 45 8.6 15 21 138.87 USD Add to shopping cart
Ready to ship in 24 hours OGA-03-40 40 62 77 45 26 20 60 M12 108 91 54 86 58 10.3 18 27 188.21 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Ready to ship in 24 hours
Ready to ship within 12 working days
