Lead Screw-Driven Actuators with Shafts: HTS/HTSP

  • Lower cost than ball bearing actuators
  • Dry-running self-lubricating bearings and lead screw nuts
  • Shaft guides allow dirt to fall away form the system easily
  • Multiple shaft materials form low weight aluminum, to deflection-resistant steel and stainless alloys
  • Various lead screw leads available
  • Accessories like motors, hand wheels, sensors and more

Shop Lead Screw Driven Actuators with Shafts

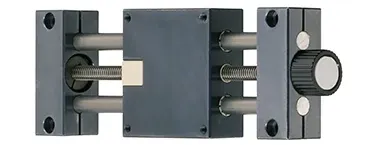

HTS - standard

HTS - Standard Carriage Length

  • From 8mm to 30mm guide shafts
  • For speeds up to 100 rpm
  • 300 Series Stainless version available

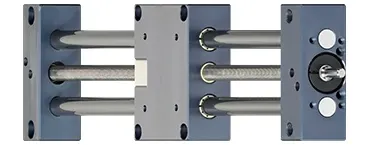

HTS-BB - high speeds & precision

HTS-BB - For motorized applications

  • Ball bearing lead screw applications
  • For speeds up to 1,500 rpm (depending on load/length)
  • Multiple lead screws, nut materials and housing materials available

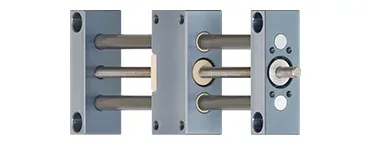

HTSC - Compact Carriage

HTSC - Compact Carriage

  • From 12mm to 50mm shaft guides
  • Can be outfitted with ball bearing lead screw supports
  • Includes our highest load-rated tables
HTSS - With High Helix Lead Screw

HTSS - With High Helix Lead Screw

  • Multiple hi-pitch leads available
  • For faster format adjustments
  • Ideal for applications under 100 rpm

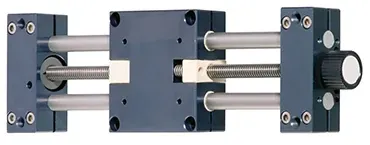

HTS-PL - For Reduced Axial and Radial Clearance

HTS-PL - For Reduced Axial and Radial Clearance

  • Constant spring preloaded nut for axial play reduction
  • Radial clerance can be adjsuted for application requirements
  • Compact and lightweight

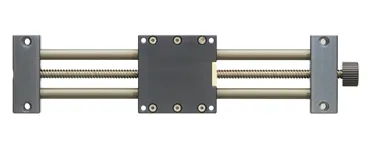

HTS-ZB - High-Helix with Zero-Backlash Nut

HTS-ZB - High-Helix with Zero-Backlash Nut

  • High precision axial motion
  • Available in 8 and 12mm shaft diameters
  • Multiple lead screws available

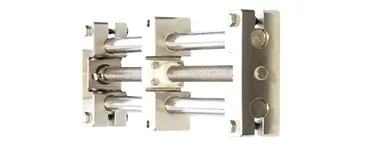

HTS- with Hygienic Design

HTS- with Hygienic Design

  • Ideal for easy-cleaning in high-pressure washdowns
  • FDA-compliant ploymer bearings and nuts
  • All stainless-steel housing and shafts

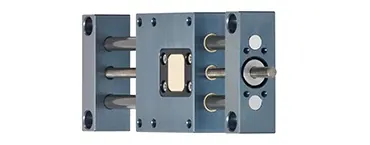

HTS-FF - for horizontal applications

HTS-FF - for horizontal applications

  • With quick release mechanism
  • Precise and quick adjustment
  • Self-locking lead screw nut

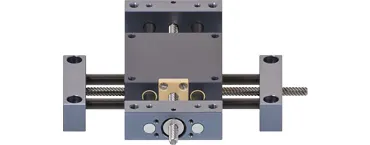

HTS-HX Actuator

HTS-HX: XY Slide Table

  • Low-cost, two-axis travel
  • Compact
  • Available with adjustable radial and axial clearance

Application examples

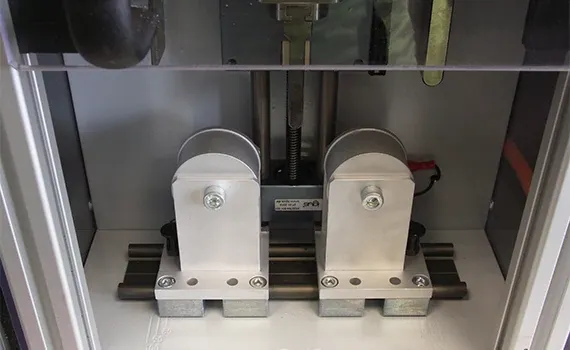

Bending test device

Test tool ready for series production

drylin HTS

Industrial trucks with special tasks

HTS

Further applications with spindle linear tables
