Rotary module – rotation angle of up to 6480 °

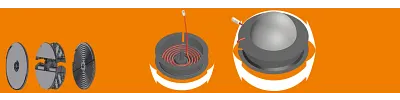

The new CRM rotary module is lighter and more compact than, for instance, static guide troughs. It allows a rotation angle of up to 6480 ° and requires minimal installation space. Various types of cable (power, signal, FOC, pneumatic, oils) can be guided. Rotary unions that are inflexible and susceptible to faults are eliminated, allowing a simple, ready-to-install unit.

Possible areas of application:
General machine and plant engineering, Production plants / Material Handling, Machine tools, Industrial robots, Medical technology, Wind power stations, Rides / Theme Park, Satellite-telescopes/antennas
Contact an igus® expert now
Tech up

Tech up

  • The rotary module can be fitted with any type of cable .
Cost down

Cost down

  • No slip ring
  • Cost-effective in case of repair (replacement of individual components possible)
  • Can be adapted to technological developments by means of simple replacement of the cables used.
Proof

Proof

  • Cables can be replaced within minutes
Sustainability

Sustainability

  • Replacing the cables does not mean that the
    entire system must be replaced
  • To recycle integrated energy chain through the igus chainge program free of charge

Technical data

Three sizes: dependent on cable diameter

Part No.Cable diameterAngle of rotationNecessary rotary module cable length
CRM.250.08.015mm - 8mm6480°4,5m
CRM.250.11.018mm - 11mm4320°3,3m
CRM.250.15.0111mm - 15mm2160°2,4m

Total length: rotary module cable length + FE projection (connection source)

Example: CRM.250.11.01 ➔ Total cable length: 3.3m + 5m (FE projection) = 8.3 meters

Application example with rotary modules


Rotary modules

Other rotary modules

Various systems for rotary and spiral movements can be selected, and properties such as modularity and versatility and a high degree of stability ensure dependability.
Rotary module CAD models

3D CAD for rotary modules

Quickly configure rotary modules.  Download CAD models for a wide variety of systems.
Visit the 3D CAD Library
e-chain news 2020

Overview of e-chain news 2020

Discover here further e-chains novelties 2020 for different applications.
To e-chain® news

You might also be interested in this

10 tips for a long-lived rotating energy supply

Ten valuable trips for the correct guide trough for circular modules, should you want to design them yourself. Avoid mistakes that reduce the service life of your plant or might even cause downtime.

From the contents:
- Plan guide sheets correctly
- Tips on laying cables
- Limit maximum rotation angle
- Generate CAD data for troughs and entire modules

Download 10 tips now free of charge. We will be happy to assist you in person at any time.
