Order Machined, Turned, and Milled Parts Online

Our CNC service is complemented by what igus® is all about: our many years of experience as your material supplier, manufacturing partner and application consultant. Together with you, we will find the perfect solution for your application. We offer over 30 different iglide® high-performance plastics, so that your turned and milled parts can be optimally designed for almost any requirement.Our CNC service enables stress-free procurement of your turned and milled plastic parts.

Benefits:

Transparent, instant pricing
Automated feasibility and tolerance checks
Components may ship in as little as 15 days
Predictable service life

Configure CNC parts now

Why CNC Machining is the right fit

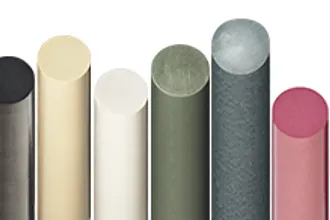

Large variety of iglide® materials to choose from:

Our iglide® bar stock materials are available in a wide range of sizes and properties to match applications in any conditions or environments.

High surface quality:

Our CNC machining produces a center roughness of about 79–118 µin Ra. iglide® components normally do not require any special post-processing for their sliding surfaces.

Precise component dimensions with tight tolerances:

You receive dimensionally accurate components with tight tolerances and fits. Narrow tolerance widths (up to tolerance grade 9 in accordance with DIN ISO 286) are usually feasible. Tolerance widths of 0.05mm are therefore no problem.

A cost-effective method for custom parts:

CNC machining is often the most cost-effective for two to four-digit quantities, or for high volume parts with simple geometries.

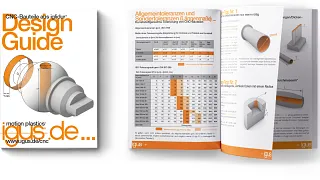

Our CNC Design Guide

Our design guide supports you with the most important principles for designing your CNC components. We give you 12 machined parts examples so that you can achieve a design that is optimized for economy and production.

Read the design guide

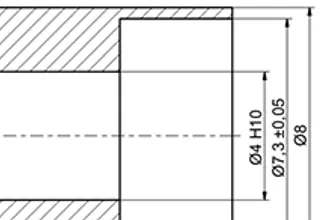

igus® Manufacturing Standards

Our manufacturing standards guarantee your custom turned and milled parts will be plastic-compatible for tolerancing and manufactured and shipped with competitive lead times.

✓ The general tolerance ISO 2768-m/K applies for plastic-compatible tolerancing with regard to length, shape and position

✓ The following minimum tolerance widths according to DIN ISO 286 are normally possible:

Nominal Dimensions of:

up to 30mm (~1.18 in): IT 9/10
from 30 to 180mm (~1.18 to ~7.09 in): IT 10/11
from 180 to 500mm (~7.09 to -19.69 in): IT 11/12/13
over 500mm (~19.69): Requires individual testing

(Tolerance minimums depend on the specific geometry, materials, and production option)

✓ Holes can be configured as metric ISO thread (M) (other thread types are also possible after testing)

✓ A center roughness value Ra of 2-3 µm is to be expected for the surface quality (corresponds to the typical values of finished surfaces in turning or milling)

CNC Machined Parts Application Stories

Sliding blocks for 2-post lift

Mechanically manufactured sliding blocks made of iglide material for use in a vehicle lift. The sliding blocks, manufactured from a semi-finished plate using a CNC milling machine, are used to absorb radial and axial forces in a linear guide.

Rollers for belt deflection in an ironing machine

Mechanically manufactured rollers made of our iglide® H1 are used in a fully automated ironing machine. The material scored with its long service life and low coefficients of friction under the influence of temperature. Bronze bearings were replaced in this case.

Component for a pasta sauce filling machine

One of our customers from the food industry uses our iglide A181 for a filling machine for tomato sauces. The component is in direct contact with the food, which means that only an FDA or EU 10/2011 compliant material could be used. The component was mechanically manufactured from a semi-finished round bar.

Rollers for conveyor belt

A frequent application that can be solved by using iglide® round bars are rollers or knife edge rollers. Depending on the wall thickness and component geometry, production in the injection molding process is difficult to implement, which is why mechanical production from iglide® bar stock is often an option. In this case, the rollers were used in a packaging machine.

FAQ: Frequently Asked Questions

The abbreviation "CNC" (Computer Numerical Control) refers to turning or milling machines whose movements are computer-controlled in order to produce more complex shapes automatically.

It's simple, fast, and transparent: no more waiting days for a quote—you get the price instantly. If you adjust the material or tolerances, you’ll immediately see how it affects the cost. This means you can make purchasing decisions on the spot.

Our CNC service interface lets you request quotes or place orders anytime. And if you need help, our experts are always available to assist you.

Anyone! We work with companies and individual customers alike.

No, using our CNC service is completely free. Simply upload your components, enter your email address, and you can begin using the tool right away.

At the end, you can choose to request a non-binding quote by clicking the "Request quote" button, and then decide whether you'd like to place an order.

Alternatively, you can order directly online by clicking the "Order directly" button.

Our CNC service is primarily designed for “motion plastics”—plastic components used in moving applications. In this initial phase, we are focusing exclusively on our iglide® tribological materials, known for being self-lubricating, wear-resistant, and low-friction.
