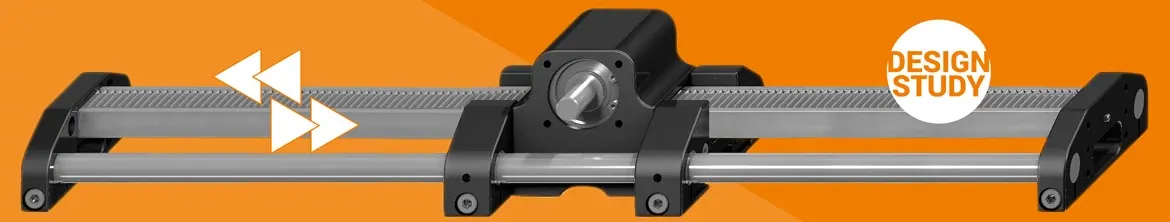

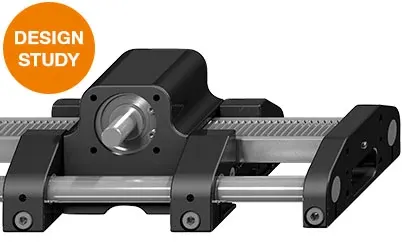

drylin® GRR lightweight Z axis with direct drive via rack
Lightweight ... fast operation
The drylin® GRR is the lightest z axis for strokes up to 500 mm It consists of lightweight aluminium and polymers. Due to the low mass inertia, high accelerations and speeds are possible. The GRR is therefore optimally suited for linear robot applications. The z-axis is driven by a direct drive rack.
Lightest z axis for strokes up to 500 mm
Made from aluminum and plastic
Lightweight enables fast operation
Ideal for linear robots
Direct drive via rack
Torsionally rigid due to drylin® AWMR aluminum hollow shafts
Self-lubricating and maintenance-free due to drylin® R liners
Weight of axis only 1.45 kg with 500 mm stroke
Dynamic mass only 0.9 kg
**Typical application areas:**Handling, sprue pickers, room linear robots, lift equipment, lab automation
Delivery time
Upon request
