The Classic Series: our most popular e-chain® cable carriers from past generations

For your convenience, igus® continues to make available older generation e-chains®. These cable carriers are ideal for previously designed machines that may need spare/replacement parts. For new applications, we suggest utilizing our current line e-chain® products for the latest technical advancements and best performance.

"Zipper-like" design for quick opening and closing

Buy now

One and two-piece e-chains® in small to medium sizes

Buy now

Energy chain for medium loads

Buy now

Energy chains with great chip protection at high speeds

Buy now

Energy chains for high loads reduce cost, time and weight

Buy now

The most universal cable carrier from the E4 system.

Buy now

Low-wear, low noise cable carrier.

Buy now

Self-guiding e-chains® without guide trough

Buy now

The most universal cable carrier from the System E4 range.

Buy now

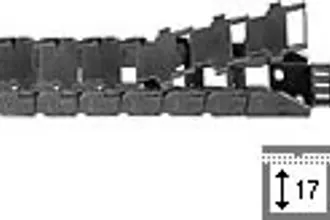

"Zipper-like" design for quick opening and closing

Rip-open from outside

Inner height hi: 17 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 38 - 180 mm
Pitch: 30,5 mm

Series 15

E2 mini - One and two-piece, small through medium sizes

Closed design

Inner height hi: 18 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 28 - 180 mm
Pitch: 30,5 mm

Series 10

Snap-open along outside on one side

Inner height hi: 17 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 38 - 180 mm
Pitch: 30,5 mm

Series B15

E2 medium

Closed design

Crossbars opened on the inside

Opened on one side

Crossbars opened on the outside

Opened on one side

E2 R

Snap-open along the outside

Two-part E-Tube

Inner height hi: 35 mm
Inner widths Bi: 50 - 75 mm
bending radii R: 75 - 250 mm
Pitch: 33,3 mm

Series R58 old

Two-part E-Tube

Inner height hi: 45 mm
Inner widths Bi: 75 - 175 mm
bending radii R: 100 - 300 mm
Pitch: 36 mm

Series R68 old

E4/light

With crossbars at every link, snap-open along both sides

With crossbars at every other link, snap-open along both sides

E-Tube, snap-open on both sides

Pivotable cover

With crossbars at every link, snap-open along both sides

Series 140 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 142 , Inner height hi: 62 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 150 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

With crossbars at every other link, snap-open along both sides

Series 141 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 143 , Inner height hi: 62 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 151 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

E-Tube, snap-open along both sides, swivel lid

Series R188 , Inner height hi: 56 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

Series R198 , Inner height hi: 80 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 200 - 500 mm, Pitch: 91 mm

E4/0

With crossbars at every link, snap-open along both sides

With crossbars at every other link, snap-open along both sides

E-Tube, snap-open on both sides

Pivotable cover

With crossbars at every link, snap-open along both sides

Series 22 , Inner height hi: 28 mm, Inner widths Wi: 40 - 300 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 28 , Inner height hi: 32 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 63 - 300 mm, Pitch: 56 mm

Series 38 , Inner height hi: 42 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 75 - 350 mm, Pitch: 67 mm

Series 40 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 50 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 1000 mm, Pitch: 91 mm

With crossbars at every other link, snap-open along both sides

Series 23 , Inner height hi: 28 mm, Inner widths Wi: 40 - 300 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 29 , Inner height hi: 32 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 63 - 300 mm, Pitch: 56 mm

Series 39 , Inner height hi: 42 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 75 - 350 mm, Pitch: 67 mm

Series 41 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 51 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 1000 mm, Pitch: 91 mm

E-Tube, snap-open along both sides, swivel lid

Series R76 , Inner height hi: 28 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 75 - 250 mm, Pitch: 46 mm

Series R77 , Inner height hi: 32 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 125 - 300 mm, Pitch: 56 mm

Series R78 , Inner height hi: 42 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 125 - 350 mm, Pitch: 67 mm

Series R88 , Inner height hi: 56 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

Series R98 , Inner height hi: 80 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 200 - 1000 mm, Pitch: 91 mm

E-Band

Filling in the outer radius

Inner height hi: 25.5 mm
Inner width Bi: 25,5 mm
Bending radii R: 45 - 200 mm
Pitch: 25 mm

Series E-Band (PDF file)

autoglide

Version 2 - For Series 200 e-chains®

Injection-molded autoglide teeth along the inner radius.

Inner height hi: 25 mm
Inner height Bi: 57 mm
Bending radii R: 100 mm
Pitch: 45 mm

Series AG200

E4/100

E4/100 is the most universal cable carrier from the System E4 range. It is a safe choice in most applications* and offers a quiet operation. It can be easily assembled and disassembled, is available from stock worldwide and can usually be customized for your application in 24-72 hours.
