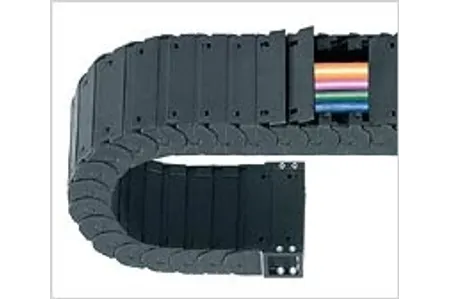

E2 R Energy Tube Cable Carriers
Fully enclosed Energy Tube cable carriers can be used to protect against cables and hoses the hot metal debris, wood chips, dirt and dust generated in steel works, wood-processing plants, pulp factories, textile manufacturing, farming, coal-fired plants, and many other demanding environments. E2 R100 is suitable for applications involving higher speeds.
E2 R: Energy Tube for higher speeds.
To open, pry the lid with a screwdriver and then simply remove it.
Typical applications:
- Tooling machines
- Woodworking machinery
- Wherever you have machines that are subjected to chips, dirt, or dust
Shop E2 R Energy Tube Cable Carriers: Snap-open along the outside

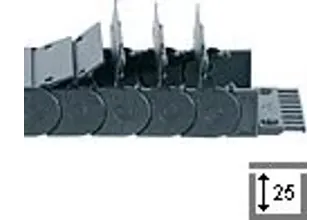

Series R48
Inner height hi: 0.98 (25 mm)
Inner widths Bi: 0.98 - 5.12 (25 - 130 mm)
bending radii R: 2.36 - 9.84 (60 - 250 mm)
Pitch: 1.19 (30.3 mm)

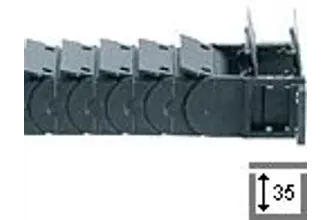

Series R58
Inner height hi: 1.38 (35 mm)
Inner widths Bi: 1.97 - 7.87 (50 - 200 mm)
bending radii R: 2.95 - 9.84 (75 - 250 mm)
Pitch: 1.31 (33.3 mm)

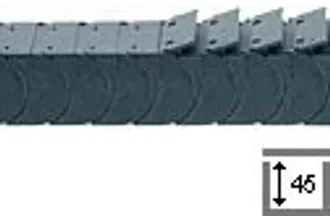

Series R68
Inner height hi: 1.77 (45 mm)
Inner widths Bi: 1.97 - 9.84 (50 - 250 mm)
bending radii R: 3.94 - 11.81 (100 - 300 mm)
Pitch: 1.42 (36 mm)
Features and benefits:
iF Design Award - Series R117/118 and Series R68
ESD classification: Electrically conductive ESD version upon request
Flammability class: VDE 0304 IIC UL94 HB
Resistant to hot chips
e-chain® Product Selector
Quickly find the best e-chain® cable carrier for your application. Simply enter your parameters and you'll be supplied with a list of chains that will work.
Assembly instructions
How to assemble E2 Energy Tubes.
Assembly Instructions E2 E-TubesApplication examples
Different application examples using E2 Energy Tubes from various industries all around the world.
