Stainless steel bearing for quick bearing replacement in extreme environments

drylin® W quick-change bearing now available in stainless steel

igus® develops and tests materials for drylin® linear technology its in-house test laboratory. Always with the aim of long durability, low wear rates and a predictable service life. But the question: "What happens if a bearing has to be changed?"is gaining increasingly in importance.

Fast bearing change without disassembly
Reduced downtime
Complete re-use of all components
Simple spare parts management

This is exactly what the drylin® W exchange bearing now also enables for stainless steel linear guides or drive units. Installation sizes: 10, 16, 20 and 25. Open housing at the side, change bearing, close and you are finished. The system is "new" and ready to use again in a very short time. Whether special requirements due to chemicals, temperature or food - suitable liners are available for every environment. And with a weight of only 5g, spare parts handling is extremely simple.

Request here

Tech up

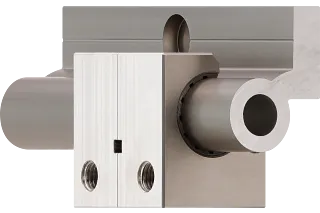

Split stainless steel housing allows changing the bearing directly on the rail
No removal of the linear unit
iglidur® X liner use for great chemical resistance
Use of linear bearing liners made of iglidur® A160/A180 for the food industry (FDA and EU10/2011 compliant)

Cost down

Works with all drylin® W linear carriages in sizes 10, 16, 20 and 25, linear modules and toothed belt axes
Use of drylin® R liners made from iglidur® X, A180, A160, E7
Bearing change within seconds

Proof

Tested: iglidur® X resistant to acetone (10%), benzoic acid (20%, aqueous), bleaching solution, drilling oils, butyric acid, seawater, etc.
Tested: drylin® W, four bearings with iglidur® X liner, installation size 20, two shafts of
AISI 316Ti, spacing 400mm, dynamic axial load 250N, synchronous drive, acceleration 1.5m/s². service life 2,000km or 650,000 double strokes at 1,500mm each

Sustainability

Completely lubrication-free operation in adverse environments
Linear housing can be used for a lifetime
Emission-reduced replacement part handling, liner weight < 5g
No contamination in the application environment
Maintenance-free due to self-lubricating high-performance polymers from igus®

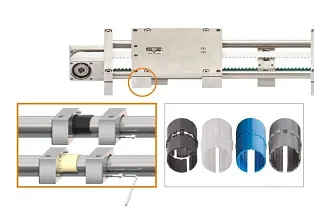

Bearing change within seconds
Suitable liner of iglidur® materials:
iglidur® X, iglidur® A180, iglidur® A160 and
iglidur® E7
