Product range expansion of the dryspin® injection moulded lead screw nuts

New thread sizes

by four new dimensions
Longer service life due to injection moulding and smoother operation due to tighter manufacturing tolerances. Discover the advantages of the injection moulded polymer alternative to metallic ball screws here.

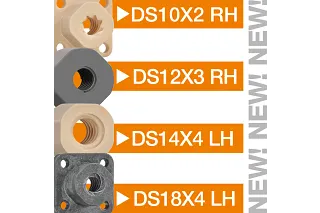

Our dryspin® injection moulded lead screw nuts are now available in four new dimensions:
► DS10x2 RH
► DS12x3 RH
► DS14x4 LH
► DS18x4 LH

Reduce your design time and streamline your lead screw technology procurement process.

Discover in the online shop
Thread size

Tech up

  • Alternative to DIN103
  • Longer service life through injection moulding ​
  • Quiet operation due to tighter manufacturing tolerances
  • Quiet due to thread geometry
  • Lead screw nuts including spanner flats
Thread size

Cost down

  • Cost-effective production in injection moulding
  • 100% lubrication-free and maintenance-free
  • Up to 50.9% more cost-effective than metallic lead screw nuts
  • Free online tools with service life calculation
    and instant price
Thread size

Proof

  • Wear after 630,000 cycles, stroke 140mm, 100rpm, load 200N, no lubrication: [Link pagenr="22934" title="View test result here" parameter="#section_7"]
Thread size

Sustainability

  • No grease or oil in the lead screw drive
  • Long-lasting use due to patented asymmetry
  • igus® supports the circular economy of plastics and is investing in chemical recycling. Find out more here

The new dimensions of the dryspin® high helix lead screws at a glance

10x2 RH
Go to dimensions
12x3 RH
Go to dimensions

Further important information:

Dimensions

The dimensions of the dryspin® lead screw drives

Everything at a glance and sorted by specifications
Six different types of lead screw nut made of seven different materials with individual specifications are available. Suitable lead screws are available in high helix, trapezoidal and metric threads and in stainless steel, steel and aluminium. We have clearly presented all dimensions for you.

► Diameters from 4 to 50mm
► Pitches from 0.5 to 100mm
► More than 5,000 variants in the standard range
► Wide variety of materials and designs
► Our experts will be happy to help you make your selection

Suitable lead screw nuts

Are you looking for the right lead screws?

Here you will find all the necessary information
Of course, we have expanded our dryspin® lead screw range not only with the new injection moulded lead screw nuts, but also with the matching lead screws.

► 100% corrosion-free
► Low-noise operation due to rounded tooth geometry
► Up to 30% longer service life due to thread asymmetry
► And many other advantages

Convince yourself of the high helix lead screws of the dryspin lead screw technology. We have summarised all the advantages and important information for you at a glance.

  • Discover the matching lead screws here
    • 16x5

    The alternative to conventional trapezoidal lead screws

    More operating smoothness and less vibrations
    The new high helix thread sizes DS10x3 LH, DS14x4, and DS18x4 are ideally suited as an alternative to the trapezoidal lead screws of the same dimensions.

    The dryspin high helix lead screws offer numerous advantages:
    ► Low-noise and low-vibration operation due to rounded teeth
    ► Longer service life due to asymmetry
    ► Higher efficiency due to optimised flank angles
    ► 100% corrosion-free
    ► Self-locking
    ► And many other advantages

    Higher efficiency, longer service life

    dryspin technology

    This is what dryspin® technology can do
    The dryspin high helix thread technology was developed by igus in 2013 and offers numerous advantages compared to conventional high helix threads. Due to the flat thread angle, it efficiently converts the force introduced into a translational movement. With specifications and geometries matched to the plastic nut and spindles, dryspin provides an even longer service life and more efficiency for high helix threads. Due to the rounded tooth geometry, the contact area between lead screw and nut is reduced, and the lead systems operate quietly and without vibration under load.

    The larger spaces between the individual dryspin threads result in a higher proportion (factor 1.3) of tribologically optimised polymer in the threads. More wear-resistant material and higher levels of efficiency are crucial for a service life that is up to five times longer compared to conventional high helix threads.
