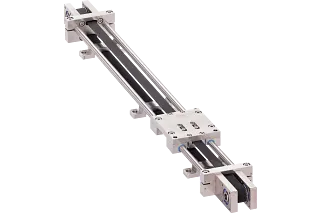

Corrosion-resistant toothed belt axis drylin® ZLW-1050-ES

Ready-to-install toothed belt axis

The new ZLW-1050-ES toothed belt axis made of stainless steel is being added to the igus® toothed belt axis product range. It features a slim design and corrosion resistance. Its axis distance of 50mm makes it extremely compact and ideal for use in small installation spaces, as a single axis or in parallel operation or linear robot structures. The stainless steel makes the ZLW toothed belt axis extremely corrosion-resistant, robust, and suitable for long, maintenance-free operation. The ZLW toothed belt axis linear carriages are equipped with drylin® liners made of iglidur® E7, ensuring good running performance without maintenance. The liners are self-lubricating, so they are very easy to clean. The belt is a neoprene toothed belt with glass fibre reinforcement and an RPP 3M tooth profile. The belt tension can be conveniently adjusted on the carriage. For high-frequency applications such as 24/7 use, suitable linear plain bearings are available for quick bearing replacement (a matter of seconds). The liners can be replaced easily without dismantling the system.

Tech up

Extremely durable thanks to stainless steel components
FDA-compatible
A ZLW stainless-steel linear module with a compact width (50mm) is being added to the drylin® modular system

Cost down

Ready-to-install system
Individual configuration (stroke length/drive)

Proof

Tested in the igus® laboratory: drylin® W linear system, Ø 10mm, carriage length 100mm, iglidur E7 liners, load 30N, service life 4,000km in continuous operation until bearing replacement

Sustainability

100% lubrication-free through the use of igus® polymers in the bearing points
corrosion-resistant

Very hygienic

With FDA/EU-compliant liners upon request

The interaction of stainless steel and drylin® liners makes the ZLW toothed belt axis made of stainless steel a clean, hygienic and reliable solution for applications that require both corrosion resistance and compactness. The open modular design of the ZLW-1050-ES is also an ideal solution for applications in areas such as the food and beverage industry, medical technology or in environments with specific hygiene requirements. On request, the bearing points can be equipped with FDA-/EU-compliant liners.
