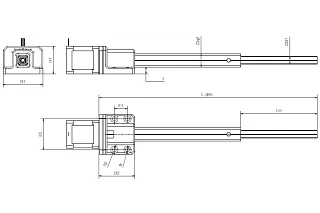

The new drylin® unsupported telescopic linear module
... telescopic ...
The new drylin® linear module with telescoping drylin® Q guide is suitable for manual as well as electronic adjustment. This unit delivers self-lubricating and maintenance free operation to all applications where push and pull forces are transferred. In folding mechanisms, for angle adjustments of monitors, mirrors or inspection cameras as well as clamping elements.
- Self-lubricating
- Extension lengths up to 300 mm
- Max. compressive force 100 N
- Unsupported installation
- Manual accessories (hand wheel, position indicatoretc.) available
- Ready-to-connect with drylin® E motor kits available
Typical applications:Textile industry, actuators, windows, rehabilitationtechnology, alley adjustments, inspection technology,medical and pharmaceutical technology
Order key (electric):
| Type | Installation size | Shaft material | Version | Pitch | Motor size | Motor option | Orientation | |
|---|---|---|---|---|---|---|---|---|
| QLA | -2012 | -A (Aluminium) | -E (electric) | -0025 (DST6,35x2,54) | (NEMA)-17 | -G (with litz wire) | -000=0° | Request |
| -0025 (DST6,35x5,08) | (NEMA)-23 | -H (with encoder) | -090=90° | |||||
| -0025 (DST6,35x12,7) | -180=180° | |||||||
| -0025 (DST6,35x25,4) | -270=270° | |||||||
| extension length 200 mm |
Order key (manual):
| Type | Installation size | Shaft material | Version | Pitch | Clamping | Position indicator | Hand wheel | ||
|---|---|---|---|---|---|---|---|---|---|
| QLA | -2012 | -A (Aluminium) | -M (manual) | -0025 (DST6,35x2,54) | -200 | -HK | -PA | -HR | Request |
| -0025 (DST6,35x5,08) | |||||||||
| -0025 (DST6,35x12,7) | |||||||||
| -0025 (DST6,35x25,4) | |||||||||
| extension length 200 mm |
Delivery
as of november
