Configurator for drylin® N – low-profile linear guide system NW-02-27

Ordering a complete system

Configuration in just a few steps:
1. Choose the number of carriages
2. Choose the type of carriage
3. Enter the carriage length in mm
4. Choose the carriage options
5. Choose the rail options

  1. no floating bearing

2. Floating bearing in z-direction

3. Floating bearing in y-direction

4. Floating bearing in yz-direction

Floating bearing application

Note:
You can find detailed information in the drawings below and also on the pages listed below. You can find more precise information on the floating bearing types within the construction rules.

drylin® N rail + carriage drawing drylin® NW

(1): Design: one piece
(2): Design: multiple components

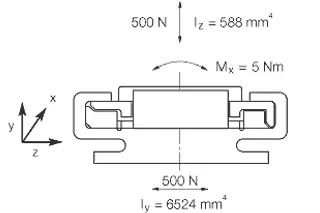

drylin® N carriage drawing

d

Dimensions and technical data

Guide rails

Part No.L max. aC4C5 min.C6 max.hh1K1ly [mm²]lz [mm²]Weight [g/m]
NS-01-27(-AR) 3.000 27602049,5 91,1Ø4,56.524588290

Dimensions and technical data

Guide rails

Part No.HA CC1C2H2KK3MSpDpWeight [g]
NW-01-27 9,5144030201,24,5----10,8
