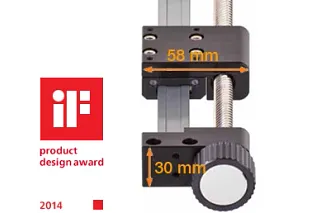

Flat structure through side lead screw assembly
Lead screw mounted on ball bearings
Easy, smooth and fast operation
Driven by motor or manually
Low-profile design 20 mm (size 12), 30 mm (size 15)
Corrossion-resistant
Low weight
Lifetime predictable
Variable lead screw pitch:
size 12: TR8x1.5 / SG8x10 / SG8x15
size 15: TR12x3 / TR12x6P3 / SG12x25
Adjustable drylin® T miniature guide carriage
TWE-04-12 (size 12) or TWE-04-15 (size 15)
| Ordering number | Stroke length | Weight | max. load capacity | max rpm |
Max. speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| [kg] | addit. (per 100 mm) |
axial [N] | radial [N] | [1/min.] | [m/min.] | |||||
| SLT-BB-0412 | 300 | 0.15 | 0.041 | 22.5 | 45 | 738.19 | 0.34 | 218.59 USD | ||
| SLT-BB-0415 | NEW | 600 | 0.4 | 0.082 | 45 | 90 | 738.19 | 0.68 | 286.11 USD | |
| Ordering number | A | Al | H | E1 | E2 | E3 | L | L2 | d2 | ha | sg | tk | kt | tg | f | lb | lt | d | T* | as | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLT-BB-0412 | 1.77 | 1.5 | 0.79 | 0.59 | 0.79 | 30 | 3.07 | 0.59 | 0.39 | M3-7 | 0.26 | 0.24 | M4 | 0.09 | 5 | 0.79 | 0.51 | TR 08x1.5 | 0.43 | 218.59 USD | |||
| SLT-BB-0415 | NEW | 2.28 | 1.77 | 1.18 | 0.75 | 0.98 | 35 | 3.5 | 0.67 | 12 | 0.59 | M3-13 | 0.31 | 0.18 | M5-15 | 0.11 | 6.5 | 0.87 | 0.67 | TR12x3 | 0.63 | 286.11 USD |
* alternative with high-helix thread: Sg08x10 / Sg08x15 / Sg12-25
