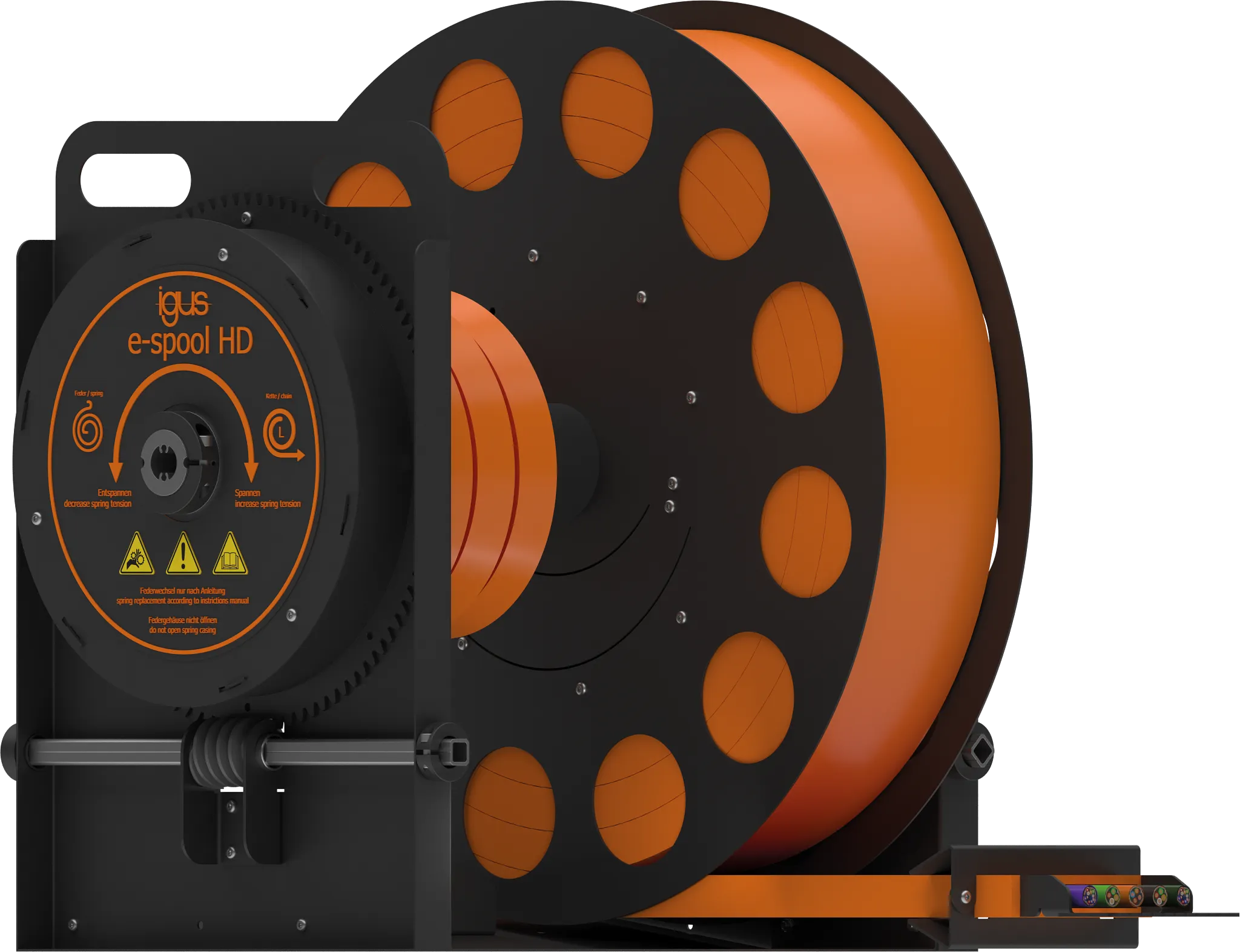

e-spool 4.0

[Design study] Double fill weight

Guide more load faster in the smallest of spaces
Guide many different cables in the smallest of spaces, now for 100% more fill weight at higher speeds. The system combines two different energy supply systems: a new tension-optimised energy chain is guided by a roller and ensures that the energy supply system is always exactly the right length and tension thanks to an integrated retaining spring. In the home position, the energy chain is completely rolled to save space. The twisterband connects the roller with the shaft end block, serving as an interface to the supply side cables.

Tech up

Different media types and sizes safely and reliably guided in one system

Cost down

100% more fill weight and higher application speed compared to previous e-spool solutions

Proof

twisterband successfully used as a slip ring alternative in hundreds of e-spool applications

Sustainability

Less raw material required thanks to the option of partial repair instead of complete replacement.

Discover more e-spool spring cable drums

All igus e-spool spring cable drums consist of an energy chain that is guided by a roller and ensures that the energy supply system is exactly at the right length and tension at all times thanks to an integrated retaining spring. And a twisterband is responsible for the turning movements. This special structure makes movements in every direction possible. By using the twisterband, the e-spool does not require a slip ring. This makes data transmission highly reliable, while enabling a high degree of stability at the same time. Furthermore, the e-spool can be guided in all directions (horizontally, vertically, diagonally) and saves space, since the energy chain is rolled up in the starting position and the paths remain free.

Find and configure an e-spool spring cable drum now

Which e-spool spring cable drum is right for you?

e-spool product finder

Find the right spring cable drum quickly

The e-spool product finder enables you to find the right spring cable drum for your application in just a few steps.

▶ Find and configure now

Be inspired - practical examples with e-spool

The e-spool spring cable drums in the convention and culture centre in Torun

The e-spool spring cable drums ensure uninterrupted supply of energy, data, air and liquids in the convention and cultural centre in Torun. A total of ten HD e-spool systems have been installed.

The e-spool spring cable drum is used in a telescopic wind machine. The wind machine prevents frost from destroying buds and young shoots in fruit plantations.
