Fixed end module | Quick and simple fastening in the Super-Aluminium guide trough

Fixed end module for the Super-Aluminium guide trough

The fixed end module enables fast and easy assembly without drilling at the Super-Aluminum guide trough

• Fast mounting of the e-chain® by clamping onto the aluminum trough
• Quick relocation of the fixed end
• No drilling necessary

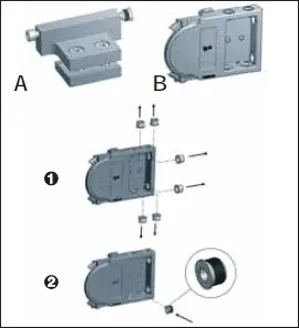

Assembly - A) Fixation point modules B) KMA-mounting bracket1. Removing the preassembled metal bushings
2. Assembly of threaded bushings

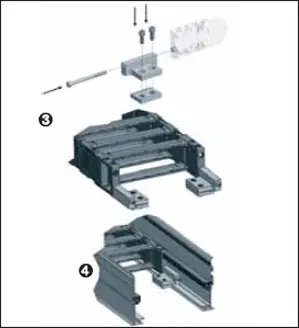

3. Installation fixed end module
4. Installation on Super-Aluminum trough

Fixed end module to fasten the e-chain® on the smallest Super-Aluminium guide trough 970-30-SL

For mounting brackets for Series: 10, 15/R15, B15, 1500. The fixed end clamp facilitates fast and simple fastening by clamping onto the Super-Aluminium guide trough without drilling.

• Quick fastening of the e-chain® on the Super-Aluminum guide trough
• Quick relocation of the fixed end
• **Fixed end clamp operating principle:**1. Fixed end clamp 970-80
  2. Mounting bracket
  3. Super-Aluminium guide trough 970-30-SL
