Chainfix® strain relief clamps
Strain reliefs for e-chains® with clamps and pressure elements
The clamp system as a strain relief for igus® e-chain systems® has proven itself well. Clamps are a suitable strain relief for all e-chains® with KMA mounting bracket and C rails option. The principle of clamps has proven very successful as strain relief for igus® e-chain systems®. Clamps are a suitable means of strain relief for all e-chains® with KMA mounting bracket and C-rails option.
Standard clamps with normal base
CFX clamps
Single clamps, double clamps, triple clamps, incl mating and double troughs.
CFX clamps
Single clamps, double clamps, incl bottom saddle and double troughs.
Clamps with wide base for increased retention force

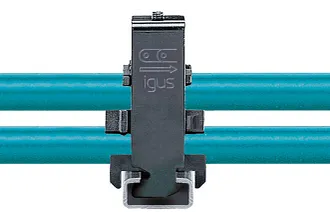

CFXL clamps
Single clamps, double clamps, triple clamps, incl mating and double troughs.
CFXL clamps
Single clamps, double clamps, incl bottom saddle and double troughs.
C-profiles
Standard C-profiles
For all igus® CFX clamps and KMA mounting brackets with C profile housing option
Heavy-Duty C-profile
For all igus® CFXL clamps
Chainfix offers reduced installation height through set screw and optimal housing height
When the e-chain® glides on itself in long travels, the screw-heads of the strain relief need to have a minimum distance of 0.39 inches to the upper edge of the e-chains® at the fixed end. This restriction means that it may not be possible to use all strain relief elements here at the fixed end of long travel e-chains®. Our clamps with threaded screws specifically designed for low installation height, reduce the installation height by up to 0.59 inches compared to conventional clamps. For unsupported e-chains® strain relief elements can be safely used.
Please note:
- The cables should be ideally fixed on both ends of the e-chains®. In any case they have to be fixed to the moving end of the e-chains®!
- In the application of Chainfix clamps on C profiles in the mounting bracket for Series 280, 2828, 290, 2928, R770, R7728,
A shortened mating trough has to be used.
Part no. for that is: CFX...K (add the letter "K" to the Part no. mentioned above)
