Bearings in Agricultural Harvesting Machinery

Intensive use for summer harvest

The company FELLA has been designing work machines for tractors for over 90 years. These include mowers, hay rakes and swathers. The function of the swather is to rake together mown or already spread hay into a single swathe using eight, ten or twelve prongs. All swathers made by this supplier work exclusively with rotary technology, which among other things have the advantage of a high acreage. “The bearings on the prongs as a part of the elaborate control system is the most important function of the machine,” the design manager points out. “If these get damaged, the rotary swather stops working. And that must not happen during harvest time under any circumstances."

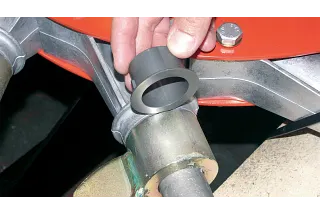

Two plastic bearings are fitted to each prong. For ten years now, these have been tribo-optimized polymer plain bearings made of the special material iglide® G. We are talking about economical all-round bearings, which – without lubricants and maintenance – show their strengths when it comes to simple pivoting and rotary movements, very high loads and high demands when faced with dirt. In the application described, a special bearing made of iglide® G is used. “Right from the trial phase, we realized that we needed a reliable anti-twist device,” remembers the design engineer, Jürgen Riedel.

The company FELLA-Werke, whose name is derived from the Egyptian word “fellache” for farmer incidentally, has stood for decades for quality and innovation in the feed harvesting technology sector. Thanks to its close contact with national and international customers, the machines are continually developed in practical terms and adapted to increasing demands. Their most important attributes are a high quality of work, safety and simple operation.

“As a partner of the farming industry with a very wide product range of mowers, hay rakes and swathers, we can always offer our customers the right machine for their business and requirements,” adds the design manager, Bernhard Kohl. “Naturally they must be at the forefront of technology in order to be able to prove themselves even in the harshest conditions."

Highly resistant
The external demands on the special bearings developed by igus® when used on the job in summer are extremely high. “First and foremost this involves radial forces," explains Kohl. “These normally occur by transporting the hay across the ground; but also by the prongs touching the ground or by bumping into obstacles such as bushes, hedges and stones. So that the plain bearings are not damaged in these crash situations, they must be impact-resistant and very robust. “ Then there is dust and dirt plus finally the high pressure washing. “Rough conditions and long service lives with possible corrosion on the steel parts place very high demands on the plastic bearings,” says Bernhard Kohl.

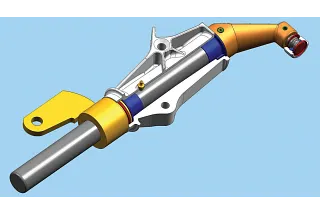

The internal stresses on the swather arm are very high, as it is continuously pressed in the cam disk. Furthermore, the technology is strained by many load changes with an oscillating motion. The single arm must be able to withstand many and also relatively fast movements. “It was our aim here to come up with a compact and affordable solution,” reports Jürgen Riedel. Whilst welded bearing tubes with inserted brass bushings used to require costly machining times when being made, there is no need at all for this now. “The plastic bearing with the conical outside was adapted to the conical shape of the locating hole, thus saving the whole machining process. That also applies to the conical fastening holes on the aluminium bearing tube, which are screwed together with the tapers on the rotary sockets. We therefore get a form-fit connection, which is very stable and proves itself excellently in rough everyday work conditions."

Investments in agricultural engineering must be well thought out. On the one hand steel prices are being continually increased at the moment. On the other hand, the customers, especially the dairy farmers, are not prepared to pay more for the machines. Nevertheless, the quality of the machines must be good. “We can only reduce the manufacturing costs,” says Bernhard Kohl, “by substituting expensive tailor-made components with standard parts or by achieving quantities that are economical to produce using modular designs." Quality tests are constantly carried out during assembly. The key company expertise lies in developing and assembling the machinery. “We buy all the components from the respective specialist, which include the special bearings made of plastic from igus®. The proportion of iglide® polymer bearings in all the machines in our product range will increase further,” Kohl is certain. “Their stability and the cost benefits simply add up."
