The Ideal Cable Carrier Solution for Circular Motion

Compact, modular, cost-effective, twistable up to 7,000°*

twisterband is capable of rotary movements in the smallest of spaces - 20 times around its own axis. This extremely compact cable management solution enables cost-effective, low-wear and low-maintenance rotary movements to be realized in the tightest of spaces while safely guiding energy, data and media cables.

Industries and applications: Cable reels, machine tools, robots (robot arms, 1/6 axis, scara robots), amusement park rides, medical equipment, radar and telescope equipment, aerospace, test, measurement, handling, lifting and installation equipment, wind turbines (e.g. blade adjustment); wherever rotary unions are used.

Contact an expert

twisterband benefits

  • Twistable up to 7,000°* in rotary movement horizontally and up to 3,000° in vertical installation position
  • Rotational speeds of up to 180°/s possible
  • Compact, modular and lightweight
  • Can be shortened as required
  • Extremely small installation spaces, very slim design around rotary axis
  • Can be used in various installation positions (horizontal, vertical, upside down)
  • Cost-effective
  • Easy to fill
  • Ideal in combination with chainflex® cable for rotary movements in very confined installation spaces
  • 5 sizes available
Go to CAD configurator

Size overview

Calculation: number of strips depends on angle of rotation (Please always round up the number of bands)

TB12: XX ≈ rotation angle / 360 + 2

  • Example: XX ≈ 1200° / 360 + 2
  • Result: XX ≈ 6 bands

TB20: XX ≈ angle of rotation / 340 + 2

  • Example: XX ≈ 1200° / 340 + 2
  • Result: XX ≈ 6 bands

TB29: XX ≈ angle of rotation / 180 + 2

  • Example: XX ≈ 720° / 180 + 2
  • Result: XX ≈ 6 bands

TB30: XX ≈ angle of rotation / 180 + 2

  • Example: XX ≈ 1200° / 180 + 6
  • Result: XX ≈ 13 bands
twisterband size overview
twisterband size overview

twisterband special features

twisterband
twisterband

Film hinge: Easy access and quick filling with cable and hose (TB20.44.18, TB30)

twisterband
twisterband

Maximum rotation angle as a rule of thumb: each 180° belt = 360° more rotation

twisterband
twisterband

A central shaft must be installed for horizontal orientation angles of rotation above 1500°

twisterband
twisterband

Smallest installation spaces, very slim design around rotary axis

twisterband
twisterband

Compact, modular and cost-effective - Horizontal: 7,000°* and more possible, vertical up to 3,000° rotary movement in the smallest of spaces

twisterband
twisterband

Can be used in various installation positions: here horizontal 7,000°* and more rotary movement in the smallest of spaces. Limited length compensation possible

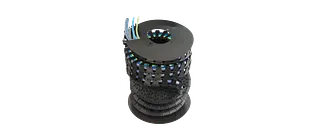

twisterband HD

twisterband HD

  • Even more stable
  • Even higher service life
  • Rotary movements in the smallest of spaces up to 7,000 degrees*
  • max. Rotation speed 180°/s
  • Guide of electrical cables, fiber-optic cables, pneumatic cables in one system
Learn more

*Rotational movements up to 3600° can be ordered from stock. From 3600°, please get in touch with your igus® contact person.
