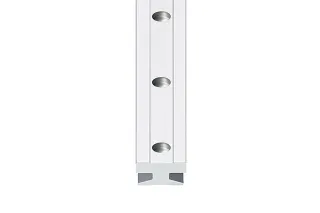

drylin® guide rails now available in econ variants with clear anodised coating – drylin® TS-CA

drylin® T is the igus® alternative rail guide to ball circulating systems. The most important connection sizes are identical, with the result that 1 to 1 replacement is possible in many cases. The advantages of drylin® linear guide systems are already convincing many users but, in future, will become increasingly important when a future-oriented linear guide has to be selected.

Absolutely lubrication-free operation
Completely clean surfaces
Very quiet due to absence of rolling elements
Easy installation

For the TW-12 Performance and TW-01 Standard adjustable carriages, we have developed the drylin® T econ clear anodised rails. A combination of the technical advantage of a consistently silver colour (ideal for visible parts) with cost-effective clear anodised coating.

Request here

Tech up

drylin® T guide rails with clear anodised finish
Corrosion-resistant surface
Series 01 rails in installation sizes 15, 20, 25, 30 usable with the TW-12 Performance and TW-01 Standard guide carriages with individual clearance adjustment
Consistent silver colour ideal for visible parts

Cost down

All rail installation sizes cost 15% less than the hard anodised version
Connection sizes identical to those of conventional recirculating ball systems
All profiles available from stock
Saw cuttings to the millimetre

Proof

Clear anodised, salt-spray tested (NSS) according to DIN EN 9227/ASTM B-117
Coefficient of friction and wear tested in the igus® laboratory
Fraunhofer IPA tested: drylin® TK-01-25-01, ISO Class 6 at Air Purity Class at v=1m/sec, ISO Class 6 at Air Purity Class at V=2m/sec, ESD Classification Level 1

Sustainability

66% weight saving compared to steel
Reduced inertia
Up to 100% functional operation without lubrication
Lubrication-free use, even in emission-critical environments
