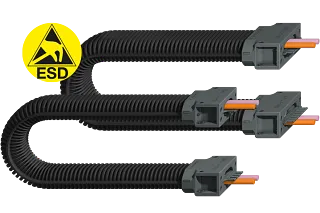

e-skin soft ESD
Cleanroom classes, small installation space and ESD protection
The tried-and-tested e-skin soft is now made of dissipative material. This prevents the formation of electrostatic fields and the abrupt discharge caused by the movement of the black e-skin soft due to the material. The e-skin soft ESD is suitable for the highest cleanroom classes and requires very little installation space. It has a self-supporting function and a closed design.
Tech up
- A series for all areas, whether cleanroom or ESD area
Cost Down
- Save up to 70% assembly time compared to festoons or energy chains with a guide trough)
Proof
- Already successfully in use at various customers and in the igus® factory
Sustainability
- igus® supports the plastics circular economy and invests in chemical recycling
Discover more ESD energy chains
Energy chains made of conductive ESD material are used to avoid static charge in manufacturing processes for electronic components or assemblies. Measurements of the electrical surface leakage resistance for igus® energy chains with the special material igumid® GC, were made back in 1992 by igus® GmbH together with the PTB (Physikalisch-Technische-Bundesanstalt) in Braunschweig, supplemented by additional certifications in 1998 and 1999 according to DIN 53482, and the guidelines for static electricity ZH1/200 of the Federation of Trade Associations.
Discover other e-skin soft without dissipative material
e-skin soft SKS | For unsupported lengths of up to 1.3m and installation space starting at 150mm
SKS20
Inner height hi: 20mm
Inner width Bi: 33mm
Bend radius R: 55mm
Pitch: 112mm
SKS28
Inner height hi: 28mm
Inner width Bi: 68mm
Bend radius R: 55mm
Pitch: 112mm
