RSP System does not have enough tension to retract the dresspack

The air pressure is too low. Remove the air from the system and repeat step 8, 9 & 10 from the install manual.

RSP System has too much tension and the triflex® R is breaking

The air pressure is too high. Remove the air from the system and repeat step 8, 9 & 10 from the install manual.

The triflex® RSP system requires a mounting adapter for most robot models. triflex® RSP systems can be mounted to some Kuka robots with an adapter.

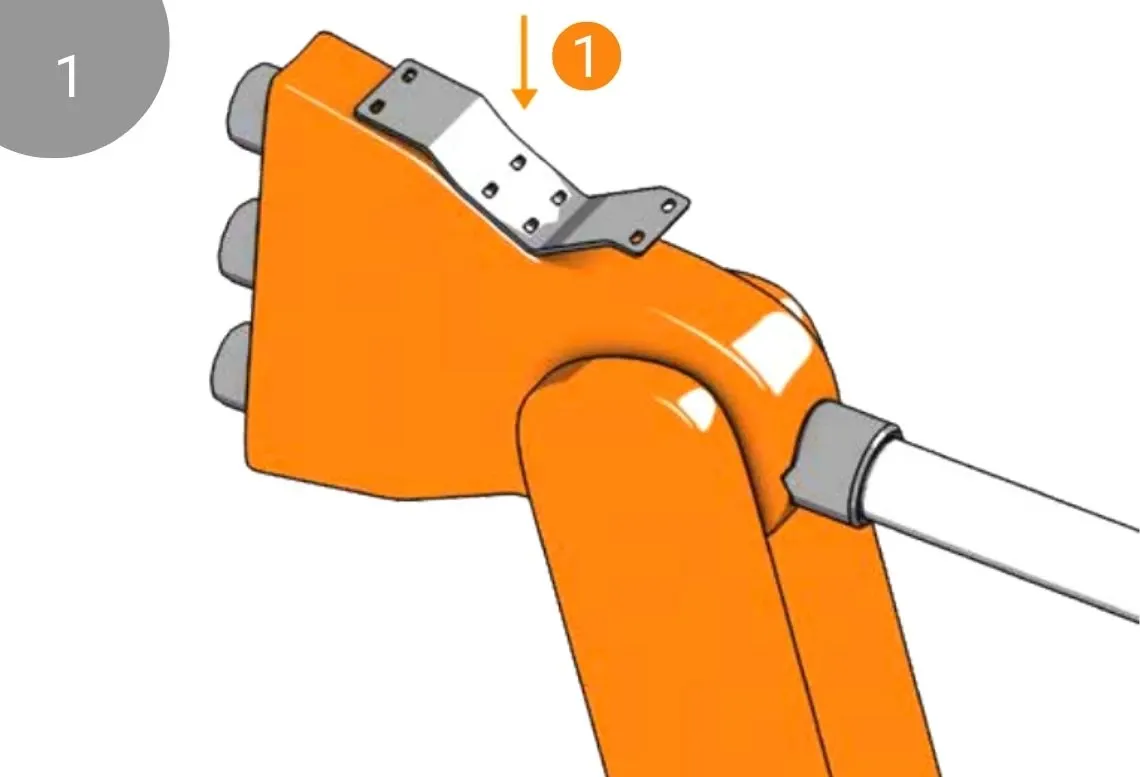

Assemble adapter plate (1) onto axis 3 of the robot

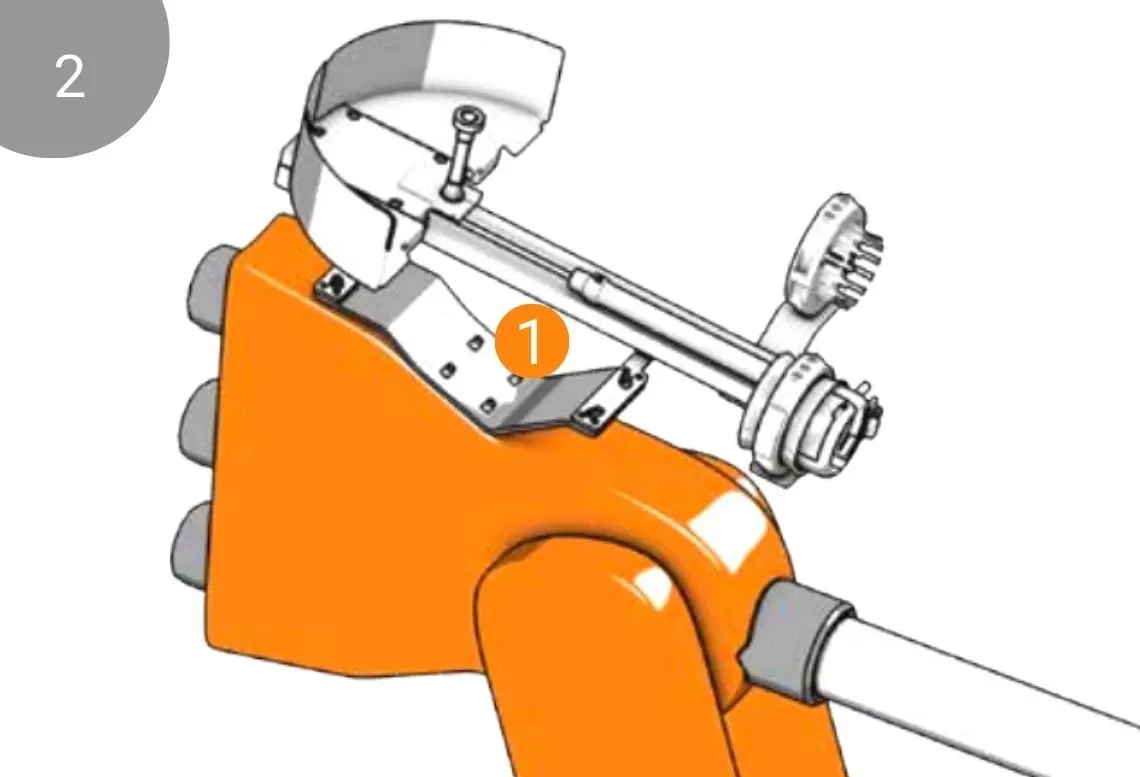

Assemble the igus® RSP system directly onto a) the adapter plate (1) or b) directly onto your robot if an adapter plate is not needed.

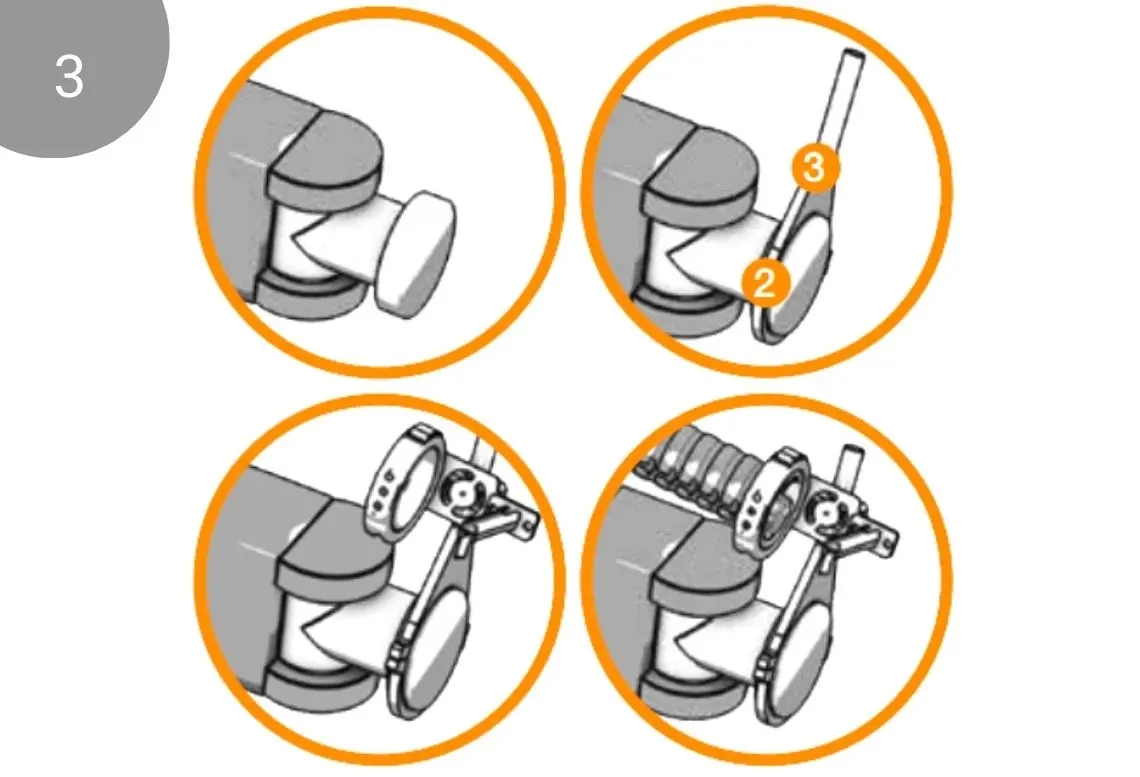

Mount the "tennis racket" (2) on axis 6 of the robot and then the adjustable triflex® R mounting bracket to the shaft (3)

Note: Mounting bracket will be delivered as a complete assembled set.

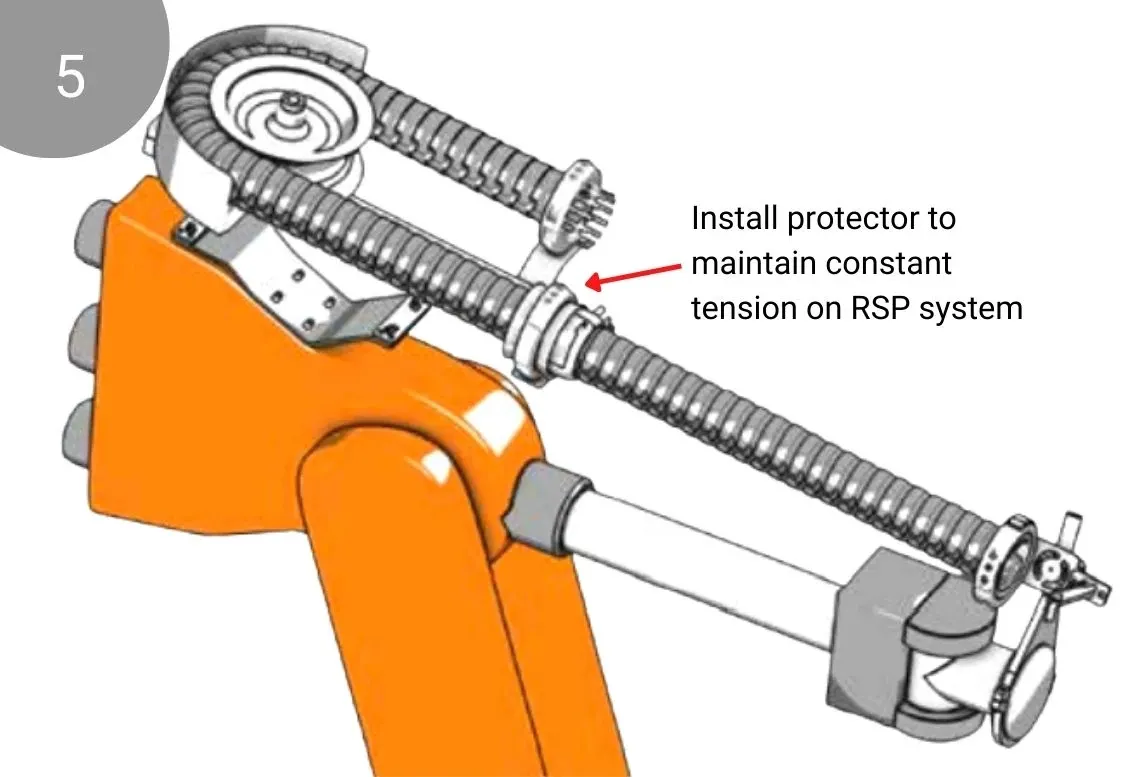

Fit your triflex® R dresspack into the RSP system

Adjust the length of triflex® R chain and attach it to the fixed point of the RSP system and at the moving end at axis 6.

Note: for triflex® TRE only. Please install lock clips at all fixed bracket locations

The tennis racket and axis 6 bracket can be adjusted in several angles to suit the robot motion.

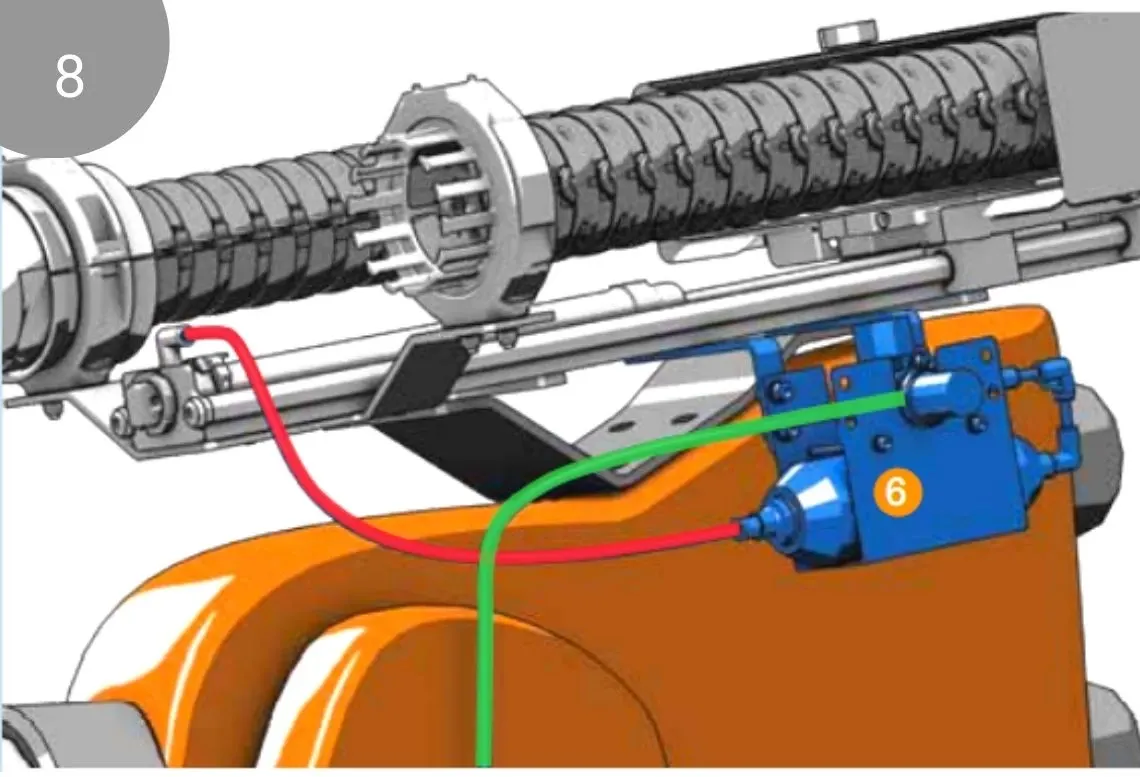

Connect the supplied 1m hose (red) to the RSP unit. The other line is your air supply (green) and is attached to your compressed air system.

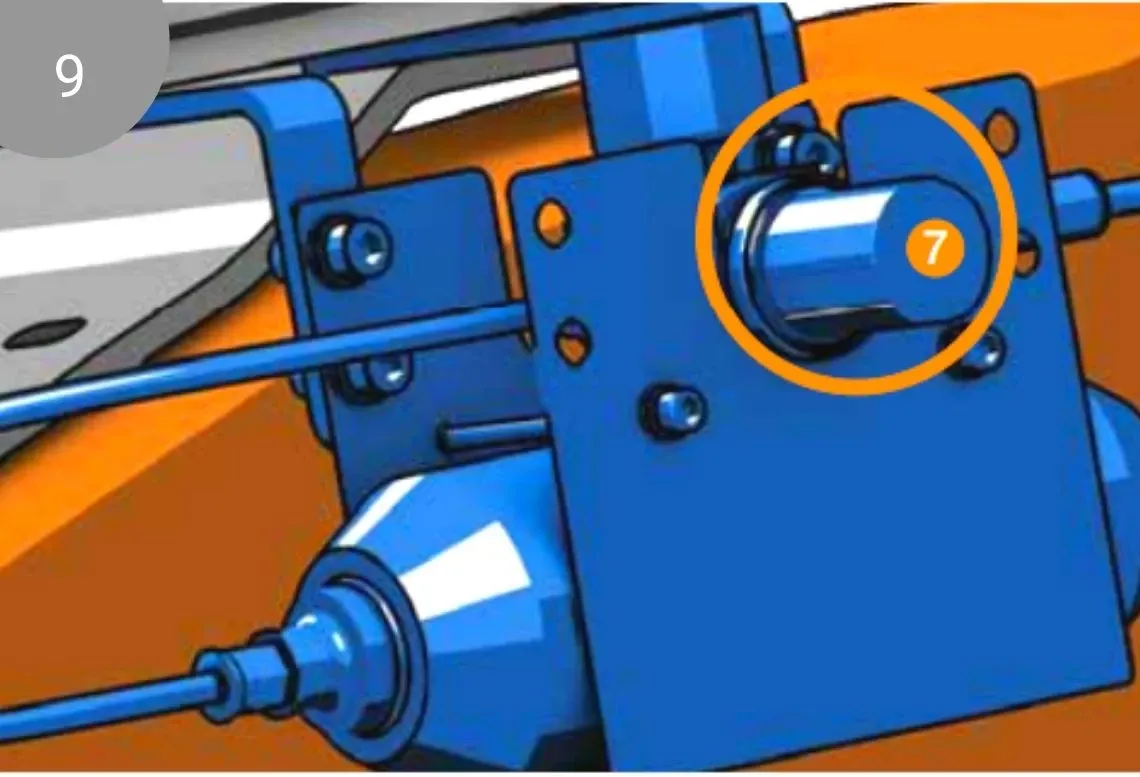

Adjust air pressure using pressure reducing valve. The correct pressure is between 2 (29 PSI) and 4 bar (87 PSI).

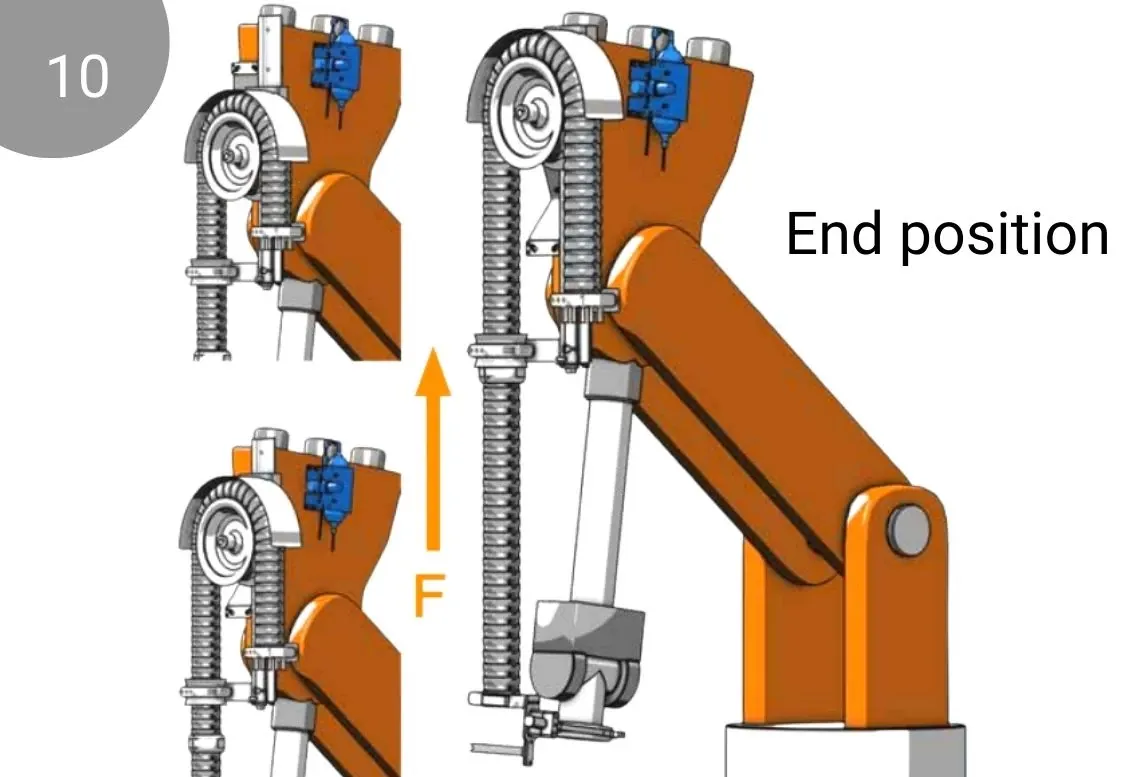

For the most accurate pressure setting fill the triflex® R with cables and hoses and run the robot in a vertical position with axis 6 downwards.
Increase the air pressure until the wheel returns to the home position (F).
Take note of the pressure required to return the wheel to the home position. This setting is the maximum force required and should not be increased.
